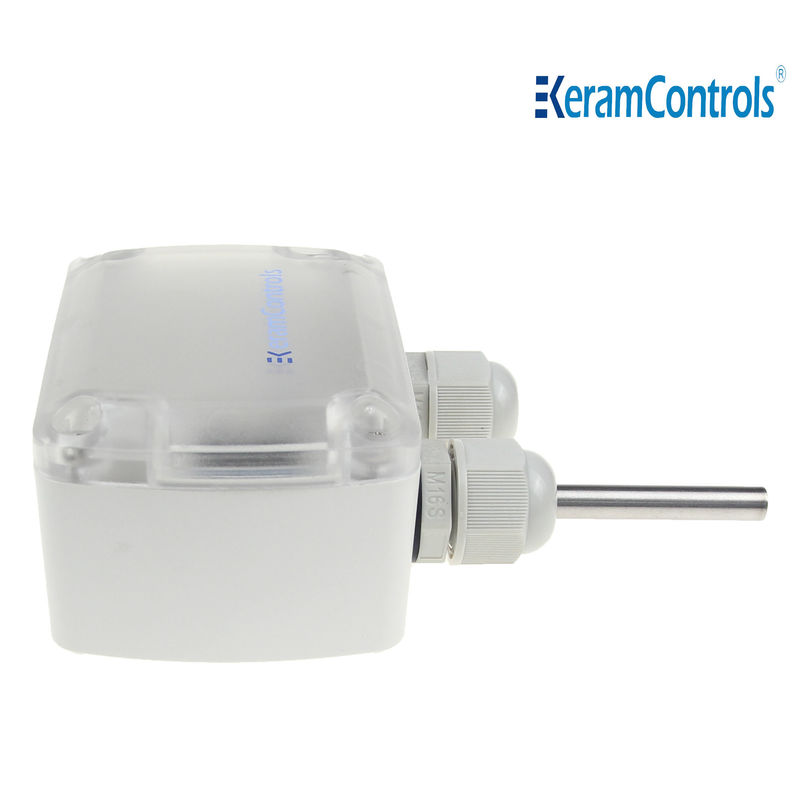

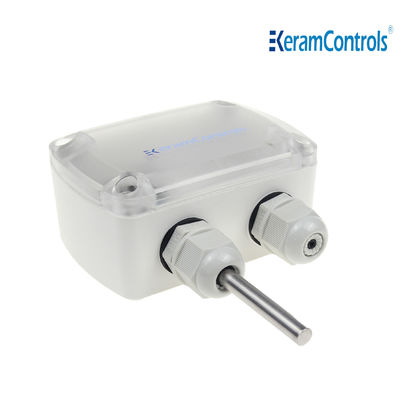

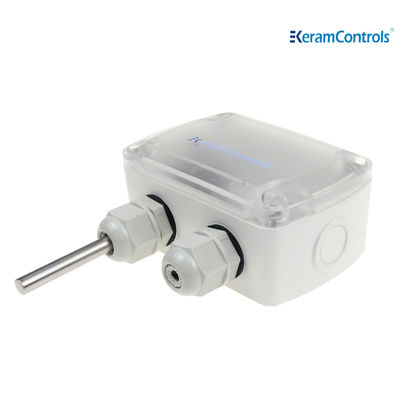

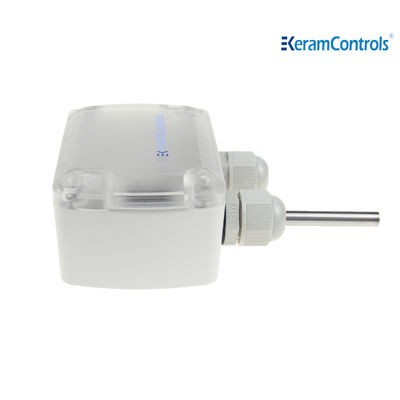

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector
ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector
ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector

Large Image :  ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS100
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector

Description
Temperature Sensitive Element: PT100 Class A Accuracy ±(0.15+0.002t) Response Time: <1min
Element Connection: 2-wire
High Light:

ABS two wire temperature transmitter

,

PT100 two wire temperature transmitter

,

rtd resistance temperature detector

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector



Features



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS100 temperature transmitter used for temperature measurement in heating,

ventilation and air conditioning systems enabling weather-dependent

temperature regulation.


Technical Data



Model KTS100
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+70°C
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5



Notes On Disposal

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector 0

Product Certification

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector 1


Dimensions(mm)



ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector 2


Ordering Guide



KTS100-Range-Element



Model Range Element
KTS100 PT100 Class A (1)
PT1000 Class A (2)
NTC 10k B395 (3)
NTC 10k B3435 (4)
NTC 1k (5)
NTC 2k (6)



ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector 3

ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector 4ABS Two Wire Temperature Transmitter RTD Resistance Temperature Detector 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
