Product Details:
|
| Type Of Operation: | On/Off,single-stage,micro Switch | Flow Rate Setting Adjustment: | Internal Screw |
|---|---|---|---|
| Sensing Element: | Paddle | Paddle Material: | Stainless Steel |
| Permissible Ambient Humidity: | 10…90% RH, Non-condensing | Liquid Applications: | Hot, Chilled, Well, Pool And Sea Water,Brine Or Ethylene Glycol |
| Liquid Temperature: | -10℃~120℃ | Permissible Ambient Temperature: | -20℃~85℃ |
| Highlight: | Red Liquid Flow Switches,Stainless steel Liquid Flow Switches,refrigeration system heat pump flow switch |
||

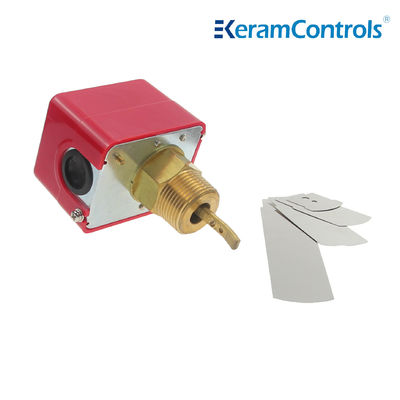

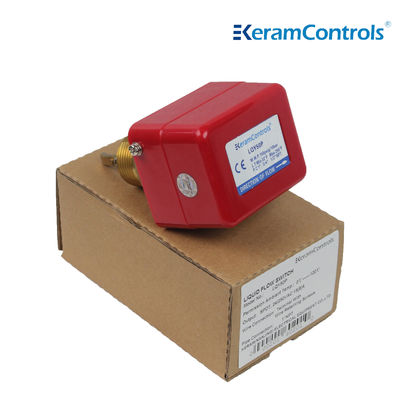

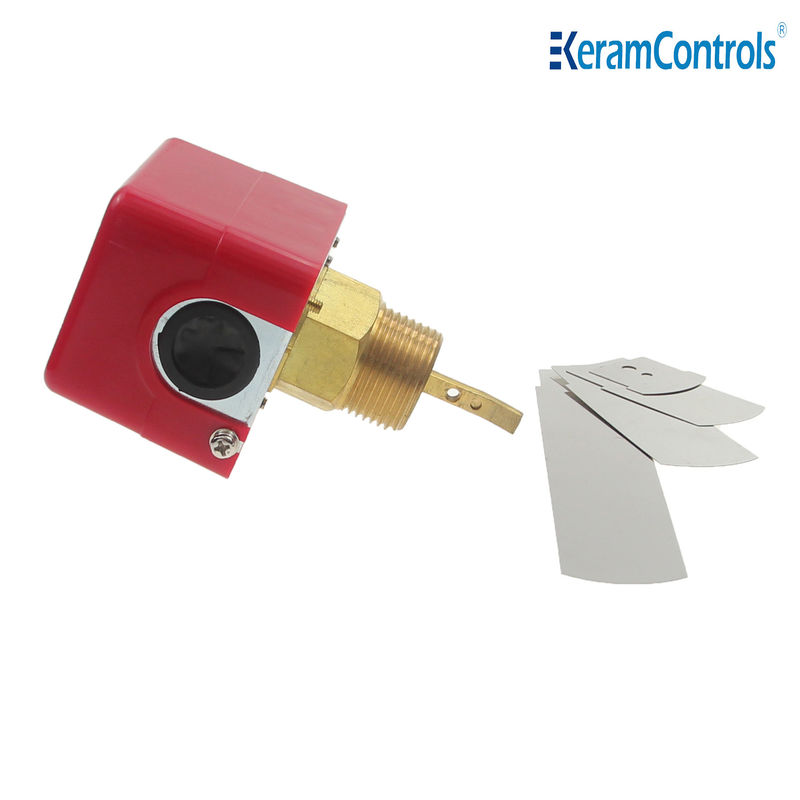

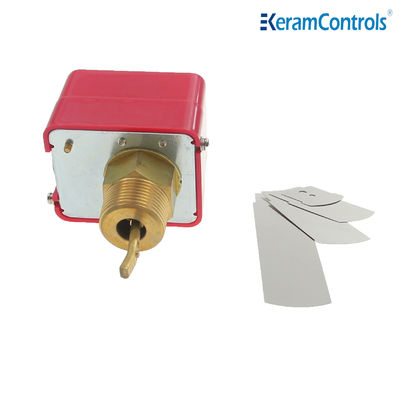

Liquid Flow Switches are Single - Pole, Double - Throw (SPDT) flow switches that are used in liquid lines carrying water,ethylene glycol,or other liquids not classified as hazardous, They can be wired to energize one device and de-energize another device powered from the same source when liquid flow either exceeds or drops below the set flow rate.
| Type of operation | On/Off,single-stage,micro switch |
| Output | SPDT 15(8A) 24/250VAC |
| Flow rates | See flow rate table |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Liquid applications | Hot, chilled, well, pool and sea water,Brine or ethylene glycol |
| Parts material in contact with fluid | Brass |
| Paddle material | Stainless steel |
| Liquid temperature | -10℃~120℃ |
| Permissible ambient temperature | -20℃~85℃ |
| Permissible ambient humidity | 10…90% RH, non-condensing |
| Cable entry | M18 Fitting |
| Housing | Fire Resistance ABS or PC |
| Protection | IP54 |
| Color | White |
| Weight | 1.0Kg |
| Line Pipe Size(in.) | 1 | 1-¼ | 1-½ | 2 | 2-½ | 3 | 4 | 5 | 6 | 8 | |
| Min.flow | Flow Increase R to Y | 1.0 | 1.3 | 1.7 | 3.1 | 4.1 | 6.2 | 8.4 | 12.9 | 16.8 | 46.6 |
| Flow Decrease R to B closes | 0.6 | 01 | 1.1 | 2.2 | 2.8 | 4.3 | 6.1 | 9.3 | 12.3 | 38.6 | |
| Max.flow | Flow increase R to Y closes | 2.0 | 3.0 | 4.4 | 6.6 | 7.8 | 12.0 | 18.4 | 26.8 | 32.7 | 94.2 |
| Flow decrease R to B closes | 1.9 | 2.8 | 4.1 | 6.1 | 7.3 | 11.4 | 17.3 | 25.2 | 30.7 | 90.8 | |
Direction of the arrow on the cylinder should be in line with the pipe flow;
Water flow switch should be installed in a horizonal pipeline,it must be installed in a vertical direction;
Flow switch in use is absolutely not permit to flow back to avoid the blade back into the fracture.
With (* ) leaves for the factory is installed;
With ( △) for additional blades (not installed);
After the leaves trimmed to install. its top of the wall shall not have any triction with the wall and the bottom 5-10 mm gap.
| Model | Connection | Notes |
| LQY50P | 1’’-11 1/2NPT | Plastic Case |
| LQY50P-1 | 1’’-11 1/2NPT | |
| LQY50P-2 | 1/2’’-14 NPT | |
| LQY50P-3 | 3/4’’-14NPT |
