KTS100 sensor ntc temperature measurement device
| Working Temperature Range: | -40...+70°C | Media: | Air Or Liquid |
|---|---|---|---|
| Protection Level: | IP65 | Measuring Range: | -40...+200°C |
| Highlight |
KMFS1 electromagnetic flow switch,IP65 electromagnetic flow switch,flow switch for chiller Refrigeration |
||

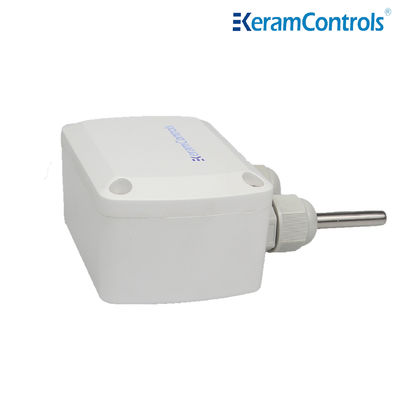

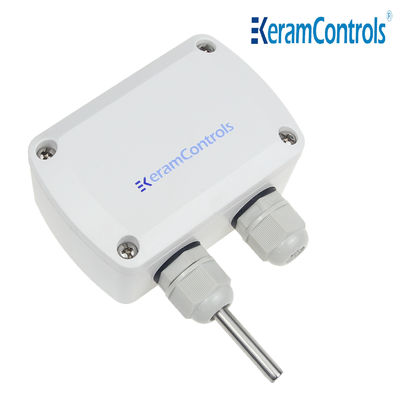

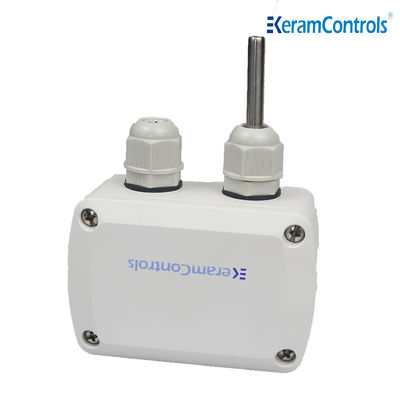

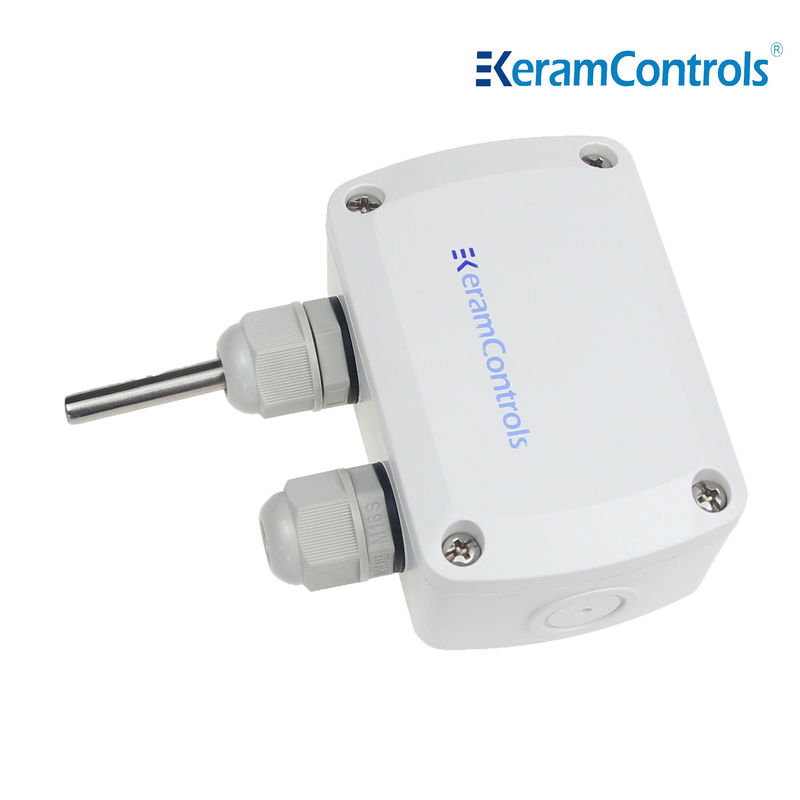

KTS100 sensor ntc temperature measurement device
Description
KTS100 temperature sensor using high temperature resistant material, suitable for relatively harsh high temperature environment, can be applied to more application scenarios, and in order to enable customers to use in more complex working conditions, the use of IP65 protection level to prevent the intrusion of dust and rain and dew, effectively protect internal components.
Features
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS100 temperature transmitter used for temperature measurement in heating,
ventilation and air conditioning systems enabling weather-dependent
temperature regulation.
Technical Data
| Model | KTS100 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+70°C |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS100-Range-Element
| Model | Range | Element |
| KTS100 | PT100 Class A | (1) |
| PT1000 Class A | (2) | |
| NTC 10k B395 | (3) | |
| NTC 10k B3435 | (4) | |
| NTC 1k | (5) | |
| NTC 2k | (6) |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
