Product Details:
|
Type Of Operation: | On/Off,single-stage,micro Switch | Flow Applications: | Air And Non Aggressive Gases |
---|---|---|---|
Permissible Ambient Humidity: | 10...90%RH,non-condensing | Protection: | IP65 |
Material: | Base:steel,galvanized; Cover:ABS,fire Retardant Or PC | ||
Highlight: | waterproof Airflow Switch,air handling system Airflow Switch,Brass level duct flow switch |
The flow switch is to instruct the switch of the system according to the flow. Set the upper limit for the flow switch or
When the flow reaches the limit, the flow switch will send out a signal or an alarm, and the system will run or stop. Generally, systems that require flow will use flow switches. Depending on the system, as well as the flow switch model and other factors, the place of use is also different, which should be determined according to the specific situation.

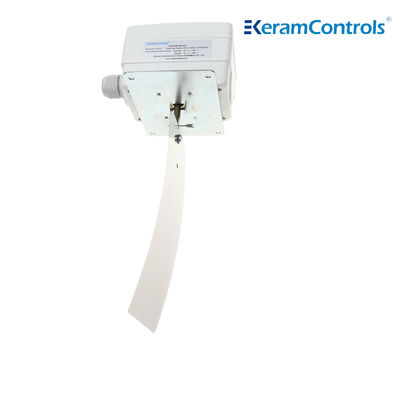

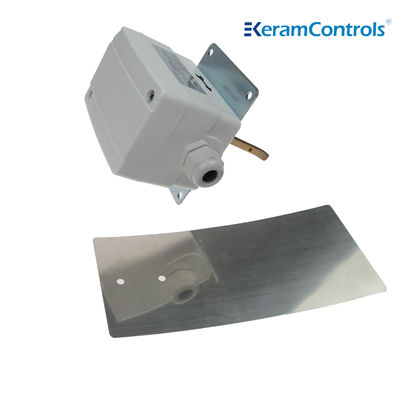

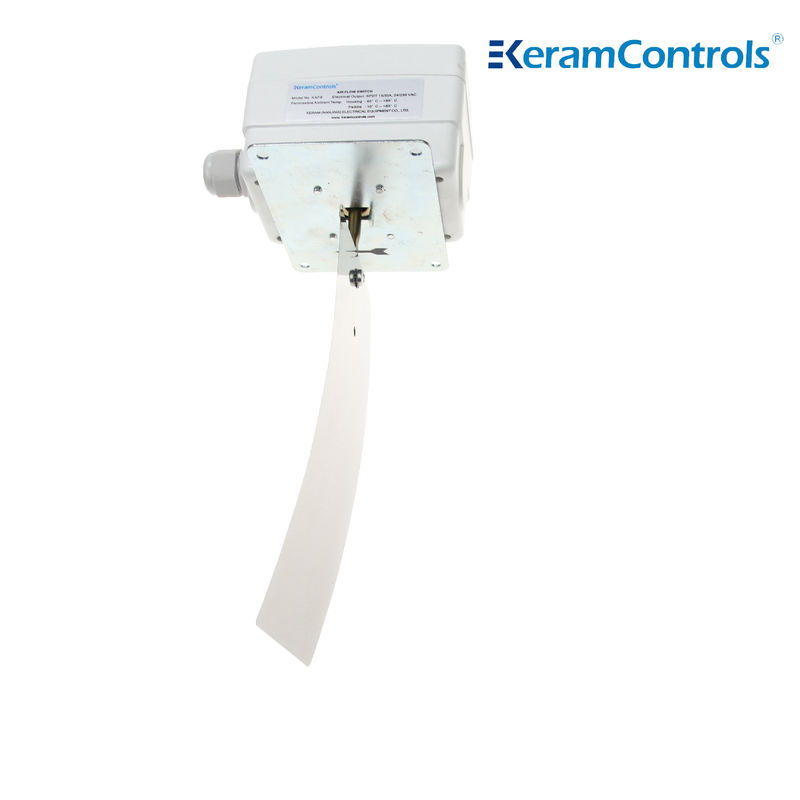

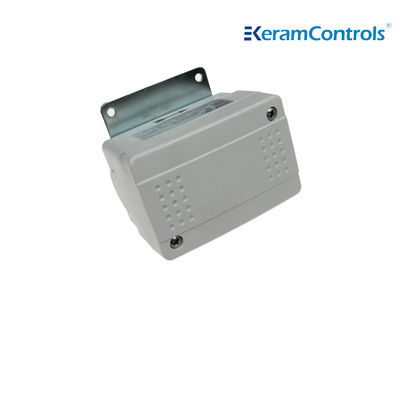

KAFS adjustable Airflow Switches are used to control and monitor the flow of air and non-corrosive gases in ducts, ideal for ducts, air conditioning and air handling systems
Control and monitor air and non aggressive gases flow in ducts, chambers, etc.,of heating, cooling, and air conditioning equipment.
● Renovated SPDT micro switch ensures the reliable switch function
● Stainless steel paddle
● Cut-in and cut-out
● Brass level
● IP65
Model | KAFS |
Type of operation | On/Off,single-stage,micro switch |
Flow rate switching | |
- Cut-out | Min. 1.0 m/sec, Max. 8.0 m/sec |
- Cut-in | Min. 2.5 m/sec, Max. 9.2 m/sec |
Flow rate setting adjustment | Internal screw |
Sensing element | Paddle |
Paddle size | 3.2 x 6.9 in. (80 x 175 mm) |
Paddle w/level - Length | 7.9 in. (200 mm) |
Flow applications | Air and non aggressive gases |
Paddle material | Stainless steel |
Paddle level material | Brass |
Permissible ambient temperature | |
- Housing | -40℉ to 185℉(-40℃ to 85℃) |
- Paddle | 14℉ to 185℉(-10℃ to 85℃) |
Permissible ambient humidity | 10...90%RH,non-condensing |
Cable entry | M18 fitting |
Housing - Material | Base:Steel,galvanized; Cover:ABS,fire retardant or PC |
- Color | white |
- Protection | IP65 |
Installation | Duct mounted |
Ship weight | 0.7kg |
The flow switch should be mounted into a duct or chamber where the air paddle can freely point horizontally downwards. To avoid air swirl and paddle instability, straight zones should be provided for a length of 5 times the diameter of duct upstream and downstream from the installation location.
The units are factory calibrated to the minimum switch-off value. To increase the set value, adjust the range screw clockwise. Due to the risk of fracture at air speeds of higher than 5.0 m/sec, the paddle must be cut off on the marked side. When the paddle is cut off, the minimum cut-out value increases from 1.0 m/sec to 2.5 m/sec.
