Product Details:
|
| Flow Rate Setting Adjustment: | Internal Screw | Liquid Applications: | Hot, Chilled, Well, Pool And Sea Water,Brine Or Ethylene Glycol |
|---|---|---|---|
| Permissible Ambient Temperature: | -40℃~85℃ | Housing: | ABS Or PC |
| Color: | White | Cable Entry: | M18 Fitting |
| Highlight: | IP65 Liquid Flow Switches,Air Conditioning Liquid Flow Switches,White flow switch for water |
||

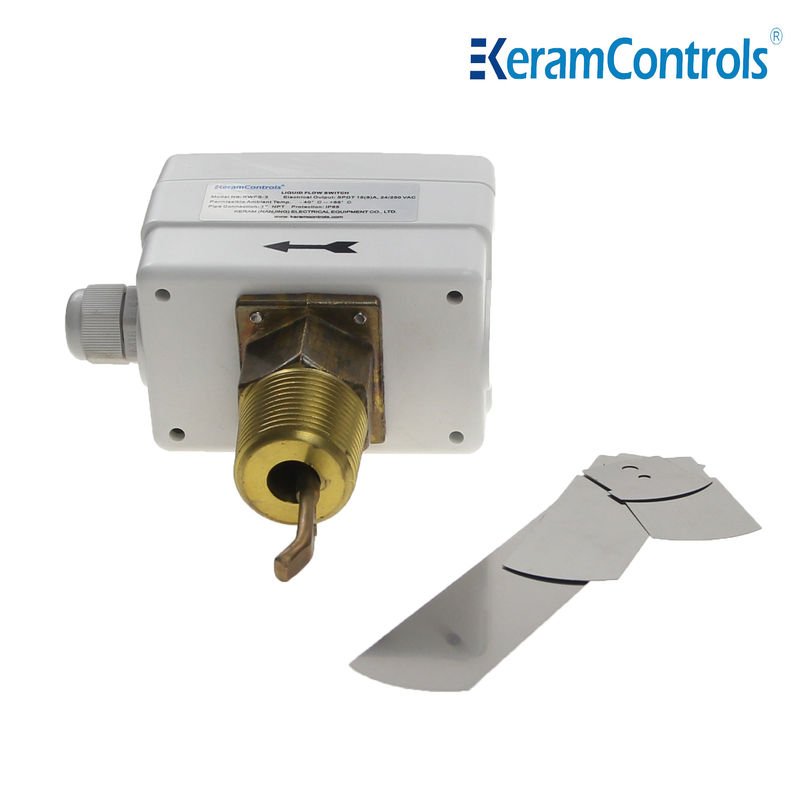

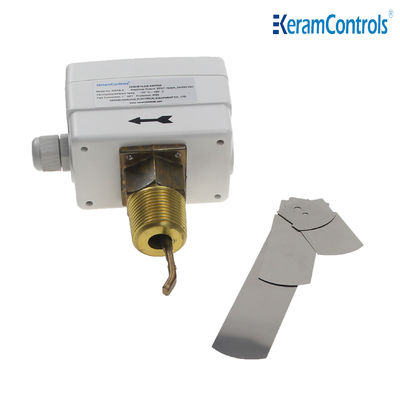

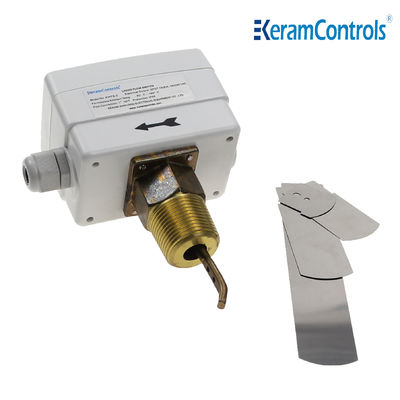

KWFS flow switches are used in measuring and controlling the flow of the liquid in the pipe,such as water, alcohol, etc.,as well as in the places where it needs chain effect or cutout protection.
KWFS series flow switches have SPDT switch,full-sealing structure as its shell,and stainless steel as its inside components, which can assure its in any conditions.
It is widely used for sensing changes in the flow of liquids flowing through pipes, such as water, ethylene, glycol or other non-hazardous liquids. When the liquid flow exceeds or falls below the set flow rate, its single-pole, double-throw switch contact (SPDT) can turn on one circuit and cut off the other circuit at the same time. The flow switch is usually used when chain action or "" cut-off" protection site. Its typical application is where a chain action or "cut-off" guarantee is required, such as where critical or high-value products need to be guaranteed, this target flow switch is often used as an independent backup control.
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.
Features
● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
●Brass material
● Max. liquid temp 120℃
● Max working pressure 20Ba
| Type of operation | On/Off,single-stage,micro switch |
| Output | SPDT 15(8A) 24/250VAC |
| Flow rates | See flow rate table |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Liquid applications | Hot, chilled, well, pool and sea water,Brine or ethylene glycol |
| Parts material in contact with fluid | Brass |
| Paddle material | Stainless steel |
| Liquid temperature | -20℃~120℃ |
| Permissible ambient temperature | -40℃~85℃ |
| Permissible ambient humidity | 10…90% RH, non-condensing |
| Cable entry | M18 Fitting |
| Housing | Fire Resistance ABS or PC |
| Protection | IP65 |
| Color | White |
| Weight | 1.0Kg |
Types of Model
| Model | Connection |
| KWFS-1 | 1/2" -14 NPT |
| KWFS-2 | 3/4" -14 NPT |
| KWFS-3 | 1" -11½ NPT |
| Line Pipe Size(in.) | 1 | 1-¼ | 1-½ | 2 | 2-¼ | 3 | 4 | 4Z | 5 | 5Z | 6 | 6Z | 8 | 8Z | |
| Min.flow | Flow Increase ①&②Connected |
4.2 (1.0) |
5.8 (1.3) |
7.5 (1.7) |
13.7 (3.1) |
17.6 (4.0) |
27.5 (6.2) |
64.7 (14.7) |
35.2 (8.0) |
125 (28.4) |
57.01 (12.9) |
190.0 (43.1) |
74.0 (16.8) |
374.7 (85.1) |
204.7 (46.5) |
| Flow Decrease ①&③Connected |
2.5 (0.6) |
3.7 (0.8) |
5.0 (1.1) |
13.7 (2.2) |
11.9 (2.7) |
19 (4.3) |
50.1 (11.4) |
26.9 (6.1) |
101.1 (22.9) |
41.0 (9.3) |
158.0 (35.9) |
54.0 (12.3) |
319.7 (72.6) |
170.0 (3806) |
|
| Max.flow | Flow Increase ①&②Connected |
9.2 (2.1) |
13.3 (3.0) |
17.6 (4.0) |
26.9 (6.1) |
30.8 (7.0) |
50.2 (11.4) |
127.6 (29.0) |
81.0 (18.4) |
245.0 (55.6) |
118.0 (26.7) |
374.7 (85.1) |
144.0 (32.7) |
759.5 (172.5) |
415.0 (94.2) |
| Flow Decrease ①&③Connected |
8.1 (2.0) |
12.5 (2.8) |
16.3 (3.7) |
25.1 (5.7) |
28.6 (6.5) |
47.1 (10.7) |
122.0 (27.7) |
76.2 (17.3) |
234.7 (53.3) |
111.0 (25.2) |
359.7 (81.7) |
134.7 (30.6) |
729.6 (165.7) |
400.6 (90.8) |
|
Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)
The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.
Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.
| Install Paddle | |
| Pipe | NO. |
| 1" | 1 |
| 11/4" | 1 |
| 11/2" | 1 |
| 2" | 1,2 |
| 21/2" | 1,2 |
| 3" | 1,2,3 |
| 4" | 1,2,3 |
| 4"Z | 1,2,3,4 |
| 5" | 1,2,3 |
| 5"Z | 1,2,3,4 |
| 6" | 1,2,3 |
| 6"Z | 1,2,3,4 |
| 8" | 1,2,3 |
| 8"Z | 1,2,3,4 |
