KTH500 3 Wire Temperature Humidity Transmitter For Greenhouse
| Model: | KTH500 | Power Supply: | 16-30VDC(2wire 4-20mA)/16-30V AC Or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
|---|---|---|---|
| Output: | 4-20mA/0-5V/0-10V/RS-485 | ||
| Highlight |
KTH500 Temperature Humidity Transmitter,3 Wire Temperature Humidity Transmitter,Greenhouse temperature humidity and pressure sensor |
||

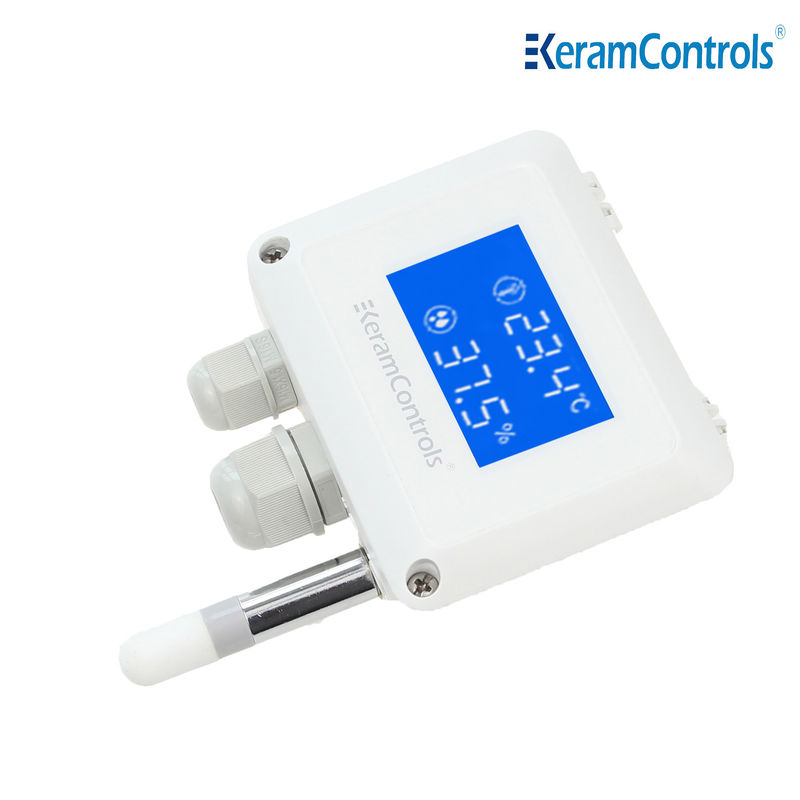

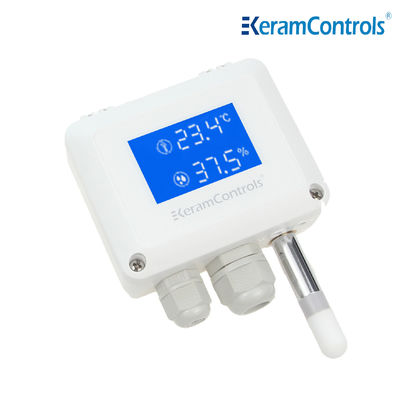

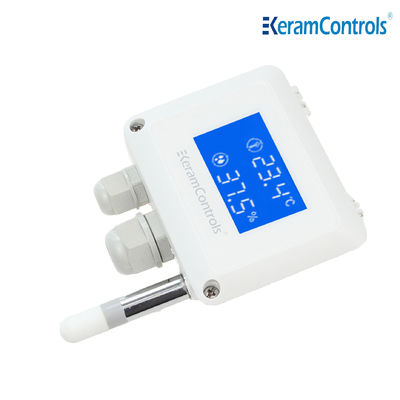

KTH500 3 Wire Temperature Humidity Transmitter For Greenhouse
Description
Temperature and humidity transmitter is popular in many industries. It is widely used in various fields that need to measure and control the temperature and humidity, such as workshop , station, building, meteorology, scientific research, chemical industry,hotel, medical treatment, environmental protection, food and other materials storage, HVAC, etc.
Pipeline temperature and humidity transmitter adopts the latest integrated temperature and humidity measurement technology, through the signal processing of high-performance single-chip microcomputer, the whole machine has superior performance and excellent long-term stability. This series of transmitters adopts a professional pipeline installation method, which is easy to use and outputs standard current signals, which is suitable for most industrial control equipment. This series of products are integrated temperature and humidity transmitters, which are widely used in building automation, climate and HVAC signal acquisition, greenhouses, and pharmaceutical and chemical industries.

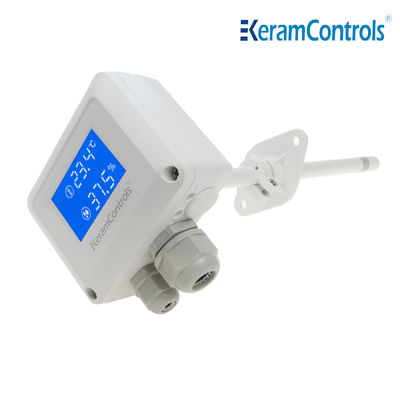

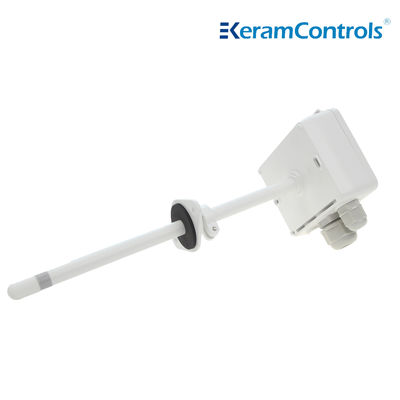

KTH500 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters, IP65 protection grade wall-mounted transmitter. KTH500 series temperature and humidity transmitters are easy to install, have high accuracy, stable and reliable operation, and are ideal for various harsh environments.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
