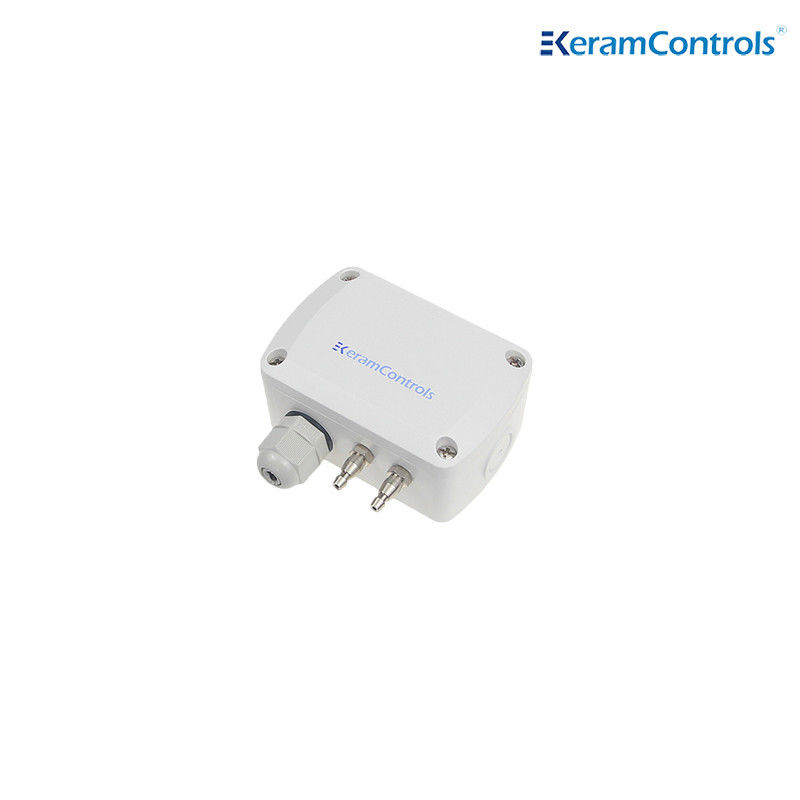

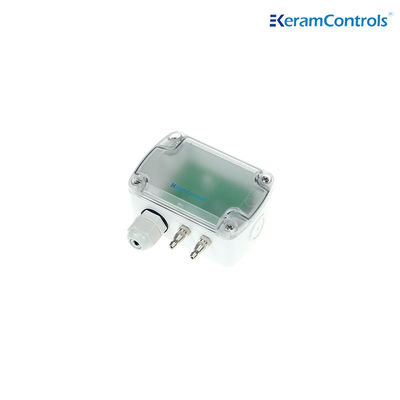

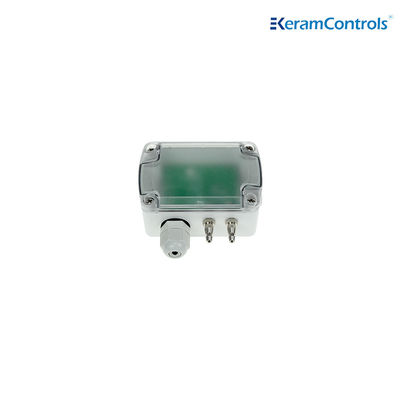

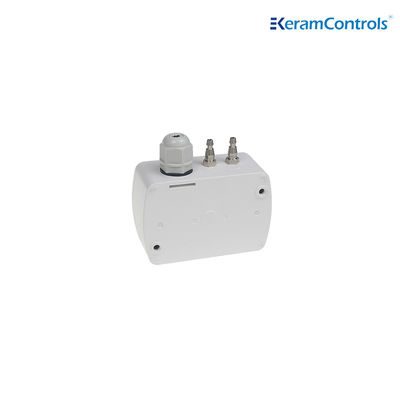

Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms

Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms
Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms
Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms

Large Image :  Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms

Description
Model: KDP110 Measurement Units: Pa,mmH2O,inWG,mmHG,KPa,mbar
Operating Temperature: -20…+70℃
High Light:

green DPT Differential Pressure Transmitter

,

2 wire DPT Differential Pressure Transmitter

,

pharmaceutical clean rooms dpt transmitter

IP65 white plastic 4-20mA differential pressure transmitter for pharmaceutical clean rooms



Description

This series of micro differential pressure transmitter adopts piezoresistive pressure sensor chip, and uses the film resistance on the substrate to carry out zero point correction, zero point temperature compensation and sensitivity compensation. The high-performance and stable silicon chip package makes it high static pressure resistance, anti-interference, stable and reliable. Therefore, the product can be applied to the micro differential pressure field combination of various gas measurement. It is an ideal micro differential pressure measuring instrument in the field of industrial automation.



KDP110 difffferential pressure transmitter has the characteristics of high accuracy,ultra-low adjustable range and fast response. It is widely used in the clean rooms of electronic and pharmaceutical factories, as well as the automatic control system of commercial buildings, HVAC air conditioning processor system,medical centers and transportation hubs.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 0Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 1


Measuring range adjustment



Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 2


Output setting(3 wire Model)



Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 3

Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 4


Manual Zero-point correction



Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 6

Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 7

Green DPT Differential Pressure Transmitter For Pharmaceutical Clean Rooms 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
