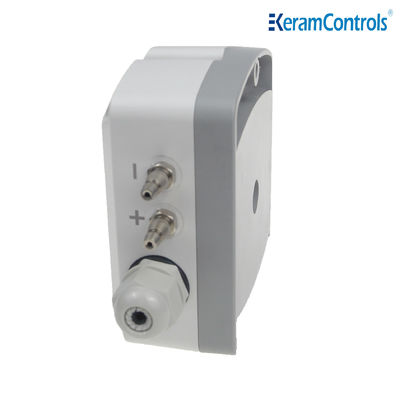

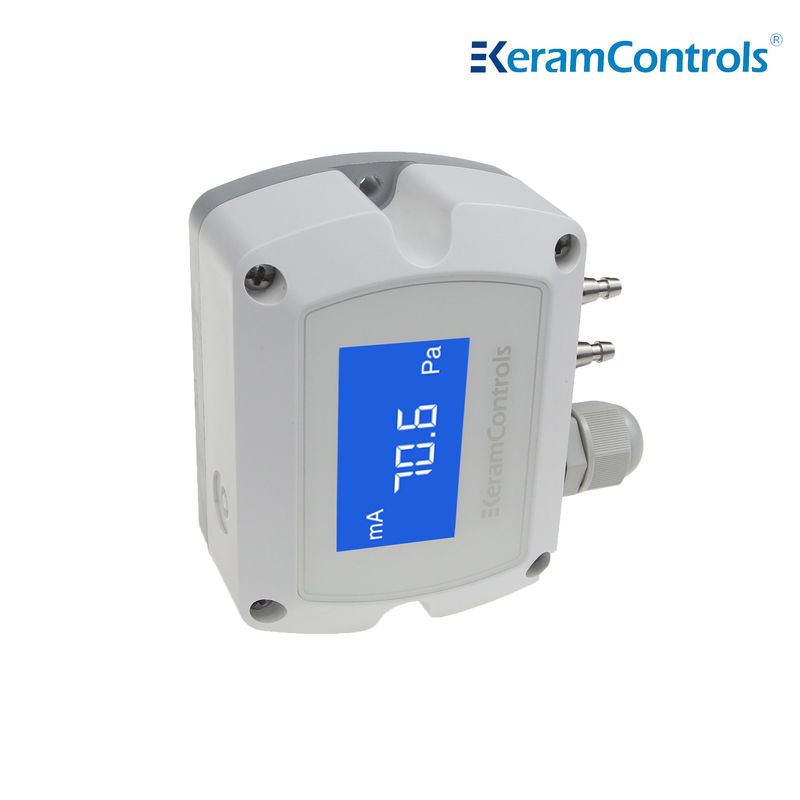

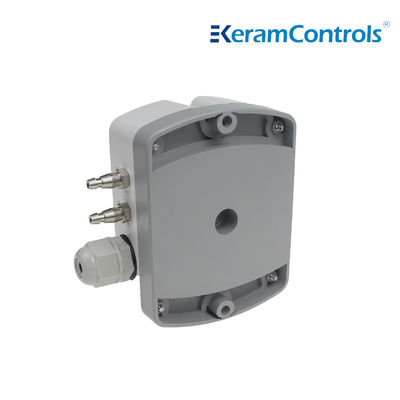

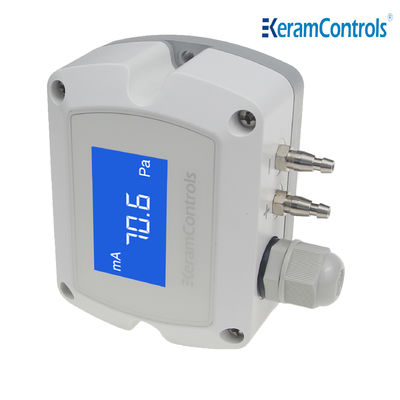

Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire

Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire
Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire
Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire

Large Image :  Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire

Description
Model: KDP210 Measurement Units: Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy: <±1% FS@-5 To +65℃
High Light:

KDP210 micro differential pressure sensor

,

Commercial buildings micro differential pressure sensor

,

4-20mA 3 wire pressure sensor



4-20mA 3 wire factory price micro differential pressure transmitter for Commercial buildings



Description

The differential pressure transmitter is a new type of transmitter. The key raw materials, components and parts are imported. The whole machine has been strictly assembled and tested. The product has the characteristics of advanced design principle, complete varieties and specifications, and easy installation and use.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 0

Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 1


Measuring range adjustment



Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 2


Output setting(3 wire Model)



Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 3

Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 4


Manual Zero-point correction



Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 6Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 7

Commercial Buildings Micro Differential Pressure Sensor 4-20mA 3 Wire 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
