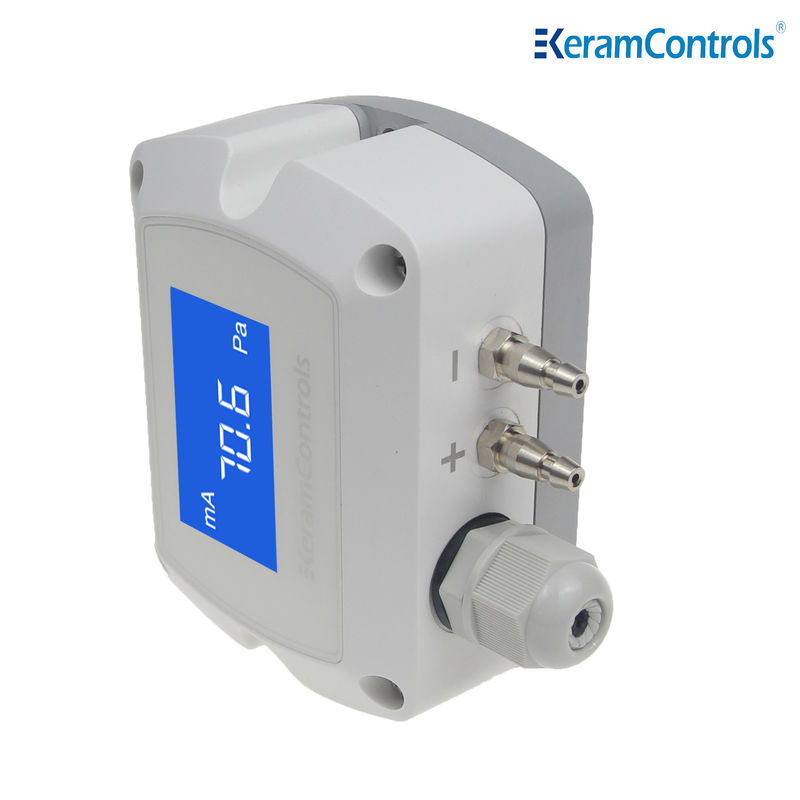

0-10V DPT Differential Pressure Transmitter For Medical Clean Rooms
| Model: | KDP210 | Measurement Units: | Pa,mmH2O,inWG,mmHG,KPa,mbar |
|---|---|---|---|
| Accuracy: | <±1% FS@-5 To +65℃ | ||
| Highlight |
0-10V DPT Differential Pressure Transmitter,three wire DPT Differential Pressure Transmitter,medical clean rooms dpt pressure transmitter |
||
0-10V made-in-China differential pressure transmitter for medical clean rooms
Description
Pressure transmitter is an important part of process detection and control system in continuous production process automation. Its function is to convert the measured process parameters such as pressure into corresponding electrical (gas) signals of the same scale, and then send this signal to other units to realize automatic detection or automatic adjustment of relevant process parameters.
Feature
- Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
- Auto zero manual calibration
- Voltage, current, digital signal output
- Standard accuracy <±1% FS
- IP65 house protection
Application
- HVAC system
- Pharmaceutical clean rooms
- Electronic clean rooms
- Medical clean rooms
- Commercial buildings
- Public transport hub
Technical data
| Model | KDP210 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) | |
| 0~5V/0~10VDC(3wire) | |
| RS-485 | |
| Customized | |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Display | Backlight LCD display(4-20mA 2 wire without backlight) |
| Cable Gland | M16*1.5 |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Manual Zero-point correction
Ordering guide
KDP210-Range-display-output
| Model | Ranges | Display | output | |||
| KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | 4-20mA(3 wire) | (F) | |||
| -2000~+2000Pa | (3) | 0-5/0-10VDC (3 wire) | (G) | |||
| -10000~+10000Pa | (4) | RS-485 | (H) | |||
| Customized | ||||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
