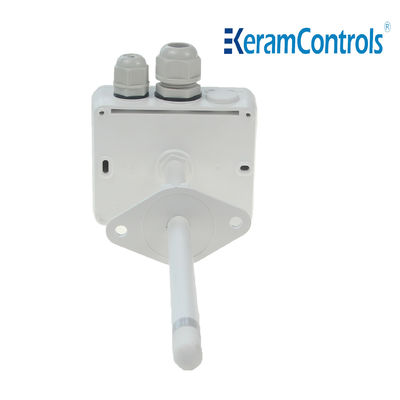

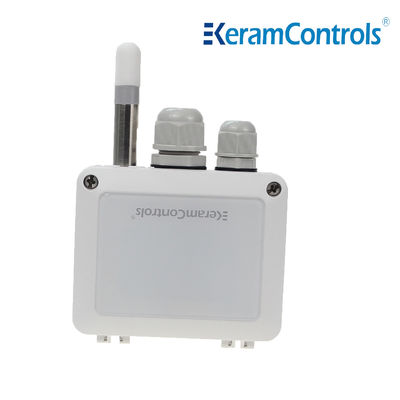

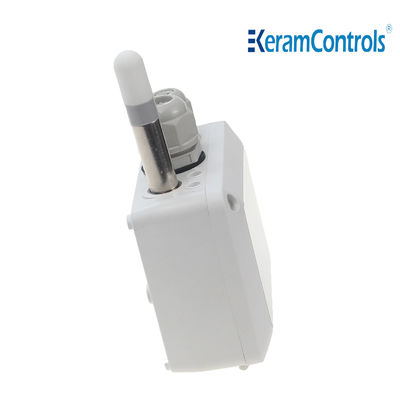

Replaceable vaisala temp humidity sensor HAVC

Replaceable vaisala temp humidity sensor HAVC
Replaceable vaisala temp humidity sensor HAVC
Replaceable vaisala temp humidity sensor HAVC Replaceable vaisala temp humidity sensor HAVC Replaceable vaisala temp humidity sensor HAVC Replaceable vaisala temp humidity sensor HAVC Replaceable vaisala temp humidity sensor HAVC

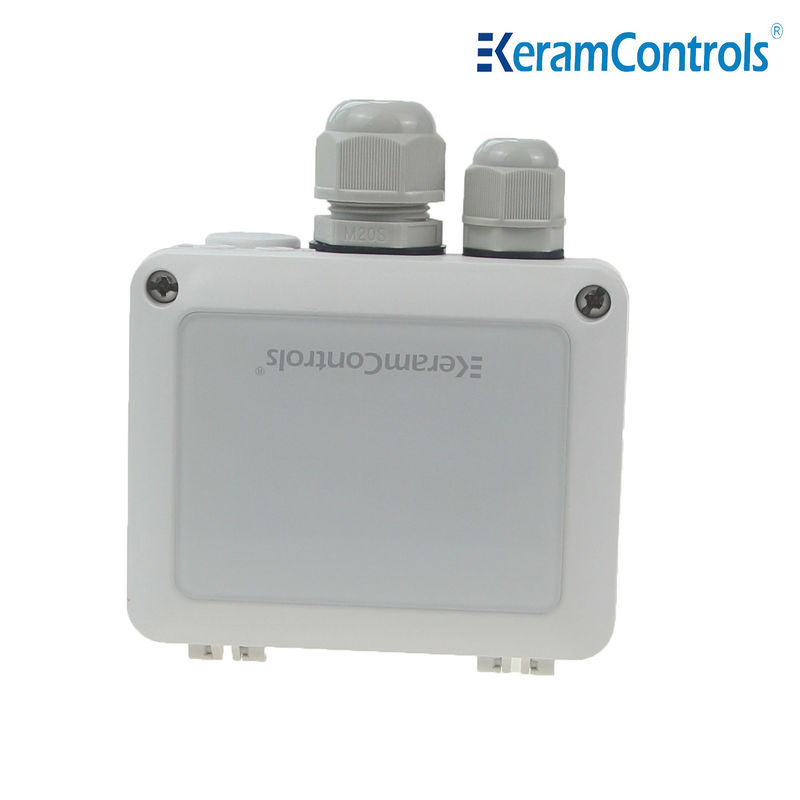

Large Image :  Replaceable vaisala temp humidity sensor HAVC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTH510
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Package
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

Replaceable vaisala temp humidity sensor HAVC

Description
Measurement Range(Temperature): -35...+80℃ Accuracy: ±2% (0-90% @25℃) / ±3% (90-100%@25℃)
Measurement Range(Humidity): 0...100%RH Maximum Wind/Flow Speed: 30m/s
High Light:

Electric Valve With Internal Limit Contacts

,

75deg Electric Valve

Replaceable vaisala temp humidity sensor HAVC



Description



In order to meet the requirements of different customers for temperature range and output, KTH510 series temperature and humidity transmitters have specially designed DIP switches to allow customers to adjust according to their own needs, which can effectively reduce the cost and convenience of customers, while its exquisite The design makes the installation more convenient, and it is effectively anti-vibration and protects the equipment from falling off.




Feature



  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



Replaceable vaisala temp humidity sensor HAVC 0Replaceable vaisala temp humidity sensor HAVC 1


Measuring range adjustment



Replaceable vaisala temp humidity sensor HAVC 2


Output setting(3 wire Model)



Replaceable vaisala temp humidity sensor HAVC 3


Ordering guide



KTH510——Output——Installation——Filter



Model Output Installation Filter
KTH510 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



Replaceable vaisala temp humidity sensor HAVC 4

Replaceable vaisala temp humidity sensor HAVC 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
