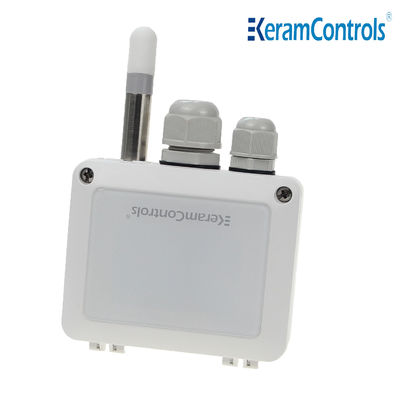

Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC

Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC
Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC
Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC

Large Image :  Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTH510
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Package
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC

Description
Temperature Measurement Range: -35...+80℃ Temperature Accuracy: ±0.3℃(20-60℃)
Temperature Dependence: ±0.01℃/℃ Measurement Range( Humidity ): 0...100%RH
Humidity Accuracy: ±2%(0-90% @25℃)/±3%(90-100%@25℃) Stability In Typical HVAC Applications: ±0.01RH/Year
High Light:

60Hz Electric Valve

,

Glycol Water Liquor Electric Valve

Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC



Description



KTH510 series temperature and humidity transmitter is a transmitter that can replace similar foreign products. It is not only cost-effective, but also its accuracy can be guaranteed, which can effectively meet the needs of customers. At the same time, it has a one-year warranty period. There are any non-artificial product issues in one year that it can be protected.


Feature



  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC 0Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC 1


Measuring range adjustment



Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC 2


Output setting(3 wire Model)



Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC 3


Ordering guide



KTH510——Output——Installation——Filter



Model Output Installation Filter
KTH510 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC 4

Replaceable 4-20 mA dwyer humidity temperature transmitter HVAC 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
