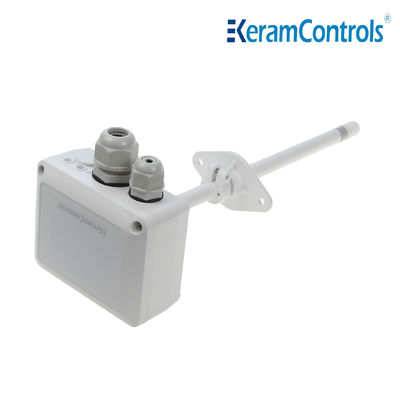

rs485 temp humidity sensor HVAC

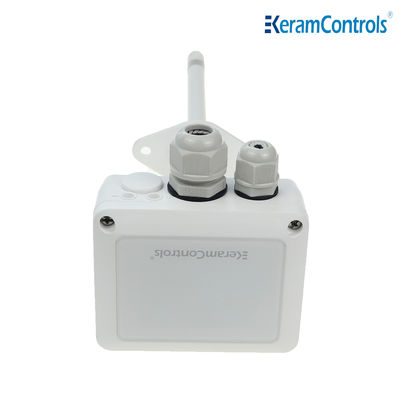

rs485 temp humidity sensor HVAC

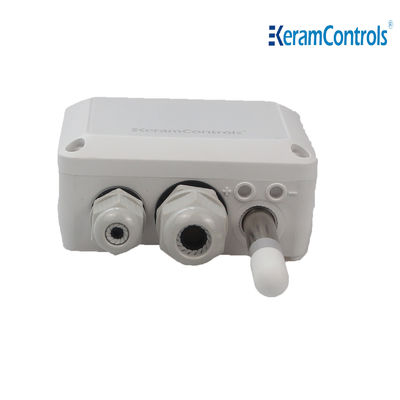

rs485 temp humidity sensor HVAC

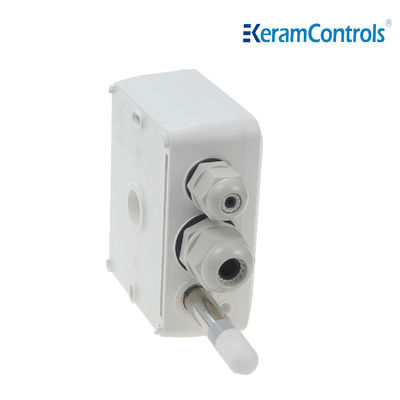

rs485 temp humidity sensor HVAC rs485 temp humidity sensor HVAC rs485 temp humidity sensor HVAC rs485 temp humidity sensor HVAC rs485 temp humidity sensor HVAC

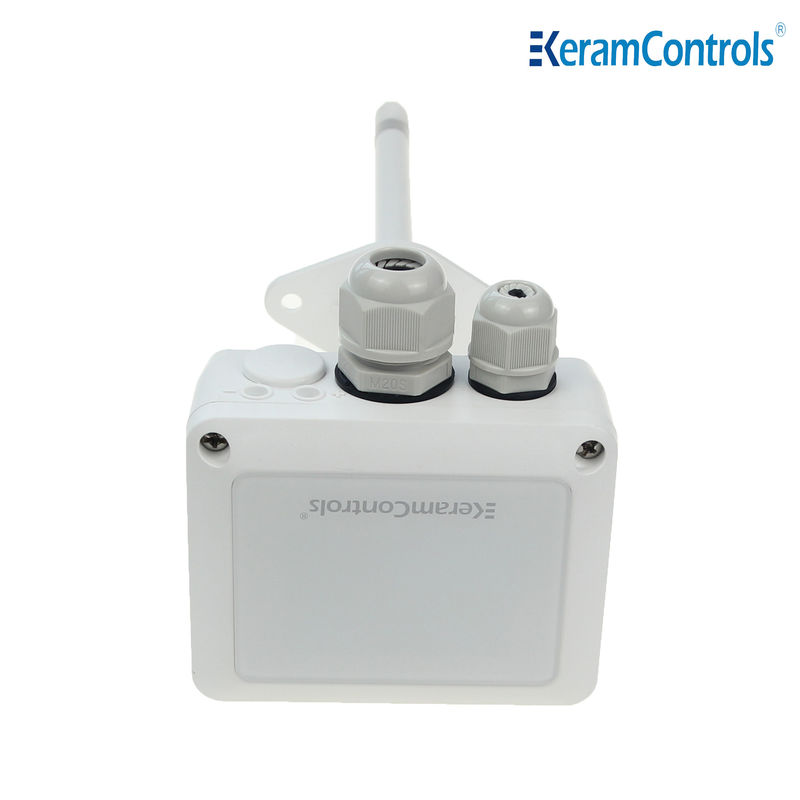

Large Image :  rs485 temp humidity sensor HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTH510
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Package
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

rs485 temp humidity sensor HVAC

Description
Storage Temperature: -40…+60℃ Operating Humidity: 0...100%RH
Housing Material: PC&ABS,UL94V-0 Temperature Measurement Range: -35...+80℃
Accuracy: ±2%(0-90% @25℃)/±3%(90-100%@25℃) Humidity Measurement Range: 0...100%RH
High Light:

220VAC Electric Valve

,

2.0W HVAC System Electric Valve

rs485 temp humidity sensor HVAC



Description



With the increasing importance of humidity parameters in air conditioning and ventilation and industrial processes, the application of temperature and humidity transmitters is becoming more and more extensive. Currently, HVAC and industrial are the two most important markets for temperature and humidity transmitters.



KTH510 series temperature and humidity transmitter is a customer that can meet different requirements for temperature range and output, because it uses DIP switch to adjust output and temperature range, and at the same time, in order to meet the requirements of accuracy, we set a button to set zero Calibrated, can effectively control the drift of accuracy.


Feature



  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



rs485 temp humidity sensor HVAC 0rs485 temp humidity sensor HVAC 1


Measuring range adjustment



rs485 temp humidity sensor HVAC 2


Output setting(3 wire Model)



rs485 temp humidity sensor HVAC 3


Ordering guide



KTH510——Output——Installation——Filter



Model Output Installation Filter
KTH510 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



rs485 temp humidity sensor HVAC 4

rs485 temp humidity sensor HVAC 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
