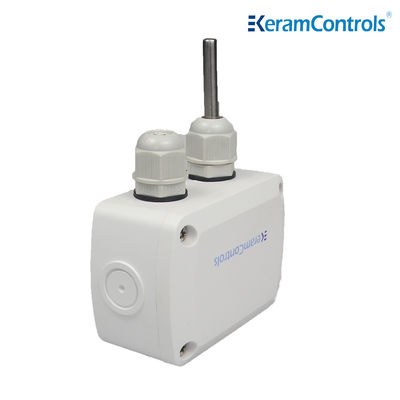

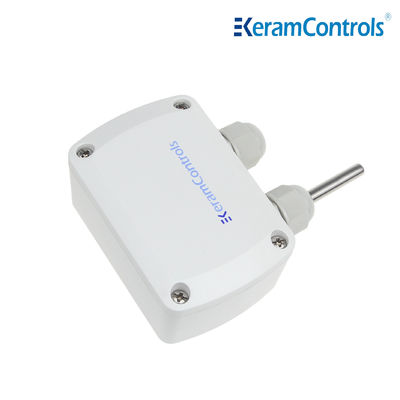

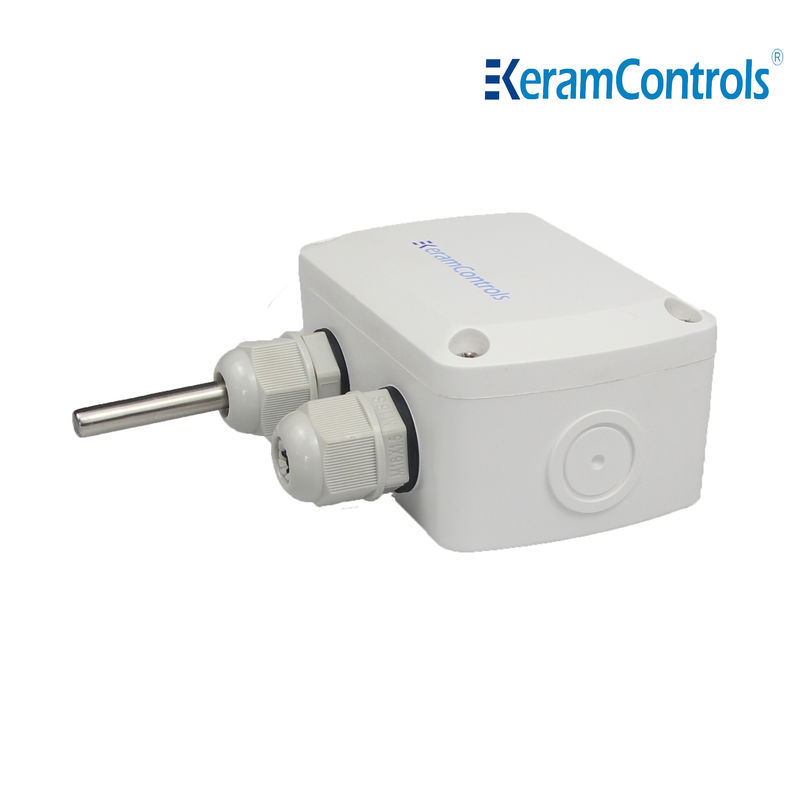

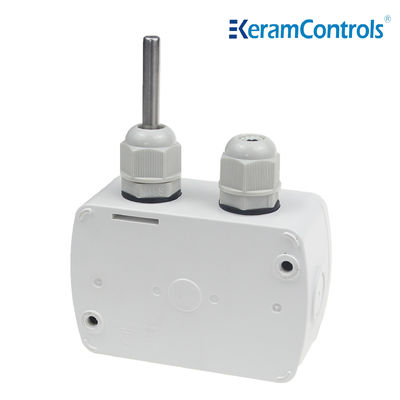

PT100 temperature sensor temperature meter HVAC

PT100 temperature sensor temperature meter HVAC
PT100 temperature sensor temperature meter HVAC
PT100 temperature sensor temperature meter HVAC PT100 temperature sensor temperature meter HVAC PT100 temperature sensor temperature meter HVAC PT100 temperature sensor temperature meter HVAC PT100 temperature sensor temperature meter HVAC

Large Image :  PT100 temperature sensor temperature meter HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS100
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Package
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

PT100 temperature sensor temperature meter HVAC

Description
Temperature Sensitive Element: PT100 Class A Accuracy ±(0.15+0.002t) Response Time: <1min
Media: Air Or Liquid Operating Temperature: -40...+70°C
High Light:

3Wires Motorized Ball Valve

,

220V Motorized Ball Valve

PT100 temperature sensor temperature meter HVAC



Description



KTS100 is a temperature sensor specially designed for wall type installation. It uses PT100 thermal resistance to measure the change of temperature. The resistance value changes with the change of temperature, which can quickly feedback the change of medium temperature, allowing users to quickly get feedback , effective and control the change of ambient temperature.


Features



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS100 temperature transmitter used for temperature measurement in heating,

ventilation and air conditioning systems enabling weather-dependent

temperature regulation.


Technical Data



Model KTS100
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+70°C
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5



Notes On Disposal

PT100 temperature sensor temperature meter HVAC 0

Product Certification

PT100 temperature sensor temperature meter HVAC 1


Dimensions(mm)



PT100 temperature sensor temperature meter HVAC 2


Ordering Guide



KTS100-Range-Element



Model Range Element
KTS100 PT100 Class A (1)
PT1000 Class A (2)
NTC 10k B395 (3)
NTC 10k B3435 (4)
NTC 1k (5)
NTC 2k (6)



PT100 temperature sensor temperature meter HVAC 3



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
