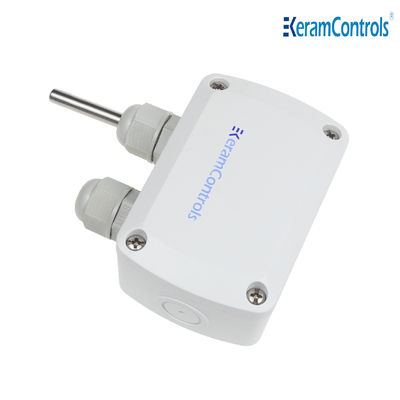

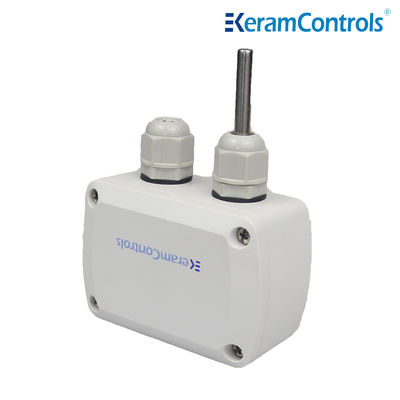

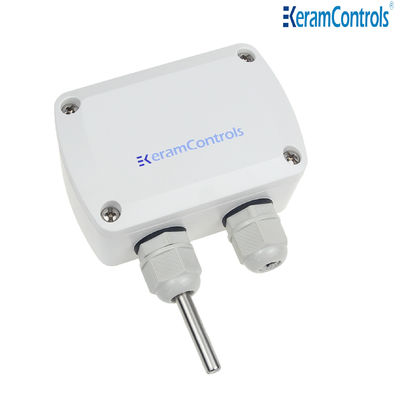

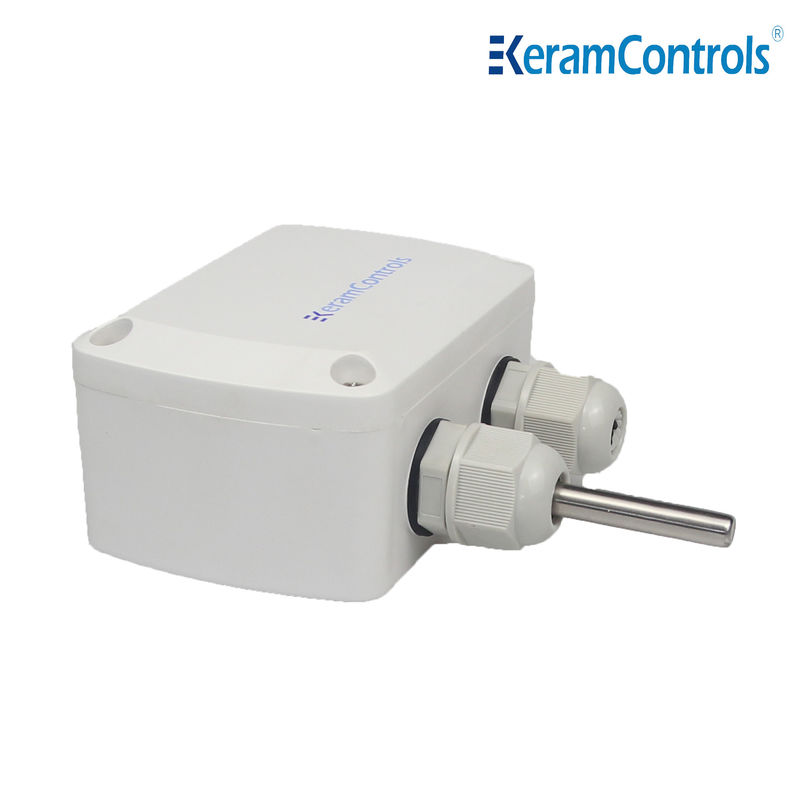

NTC10k thermal sensor temp sensor HVAC
| Temperature Sensitive Element: | NTC 10k B3435 Accuracy B:3435K±1% | Element Connection: | 2-wire |
|---|---|---|---|
| Media: | Air Or Liquid | Housing Material: | PC&ABS,UL94V-0 |
| Measuring Range: | -40...+200°C | ||
| Highlight |
24V Motorized Ball Valve,Hvac DN32 Motorized Ball Valve |
||
NTC10k thermal sensor temp sensor HVAC
Description
KTS100 is a kind of NTC10K thermistor that uses NTC10K thermistor to feedback the temperature change through the change of resistance value. It uses ABS and PC composite, so that it can be used in relatively harsh environments, can effectively protect the environment from erosion, and can effectively extend the Product life.
Features
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS100 temperature transmitter used for temperature measurement in heating,
ventilation and air conditioning systems enabling weather-dependent
temperature regulation.
Technical Data
| Model | KTS100 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+70°C |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS100-Range-Element
| Model | Range | Element |
| KTS100 | PT100 Class A | (1) |
| PT1000 Class A | (2) | |
| NTC 10k B395 | (3) | |
| NTC 10k B3435 | (4) | |
| NTC 1k | (5) | |
| NTC 2k | (6) |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
