Product Details:
|
| Type Of Operation: | On/Off,single-stage,micro Switch | Flow Rate Setting Adjustment: | Internal Screw |
|---|---|---|---|
| Sensing Element: | Paddle | Permissible Ambient Temperature: | -40℃~85℃ |
| Protection: | IP 65 | ||
| Highlight: | 3Way Electric Motorized Ball Valve,DN20 Electric Motorized Ball Valve |
||
The flow switch is mainly installed on-line or plug-in in medium pipelines such as water, gas and oil to monitor the water flow in the water system. When the water flow is higher or lower than a certain set point, the output alarm signal is triggered and transmitted to the unit, and the system can make corresponding indication actions after obtaining the signal. Avoid or reduce host "dry burn".

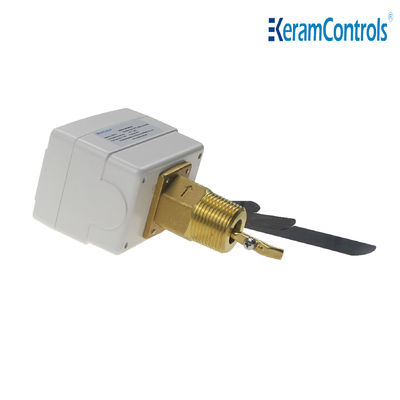

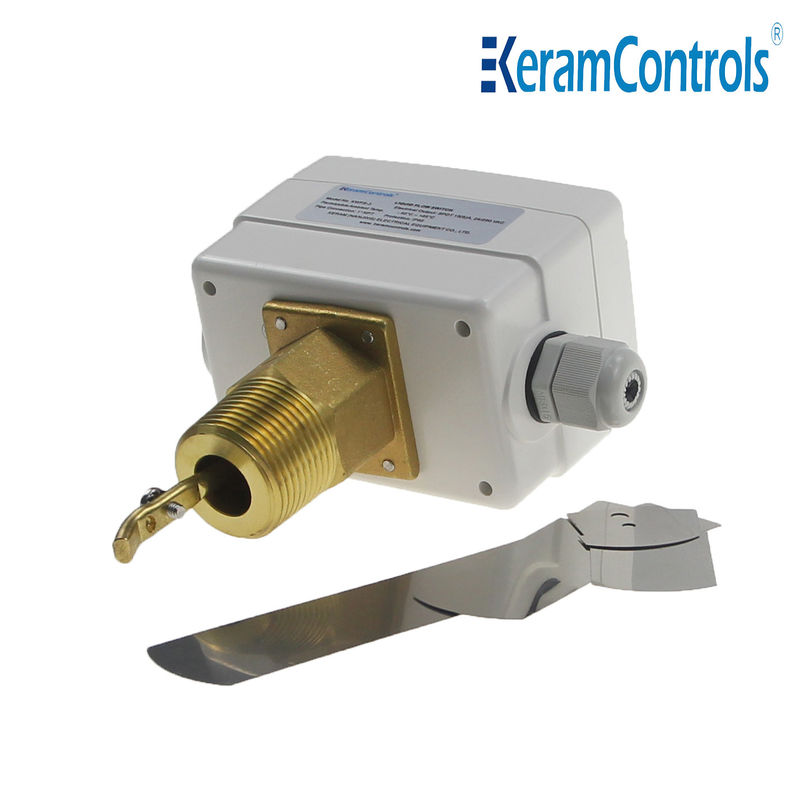

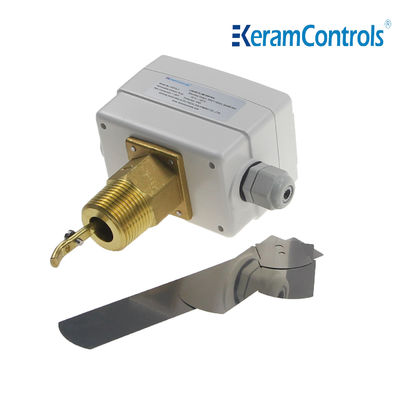

KWFS flow switch is a flow switch that can be used to control the flow of water and conventional media. It touches the blades through the flow rate of the liquid to make the equipment work, and controls the closing and opening of the micro switch with the change of flow, so as to realize the Flow control, and its IP65 protection level enables it to be used in harsh environments.
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.
Features
● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
●Brass material
● Max. liquid temp 120℃
● Max working pressure 20Ba
| Type of operation | On/Off,single-stage,micro switch |
| Output | SPDT 15(8A) 24/250VAC |
| Flow rates | See flow rate table |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Liquid applications | Hot, chilled, well, pool and sea water,Brine or ethylene glycol |
| Parts material in contact with fluid | Brass |
| Paddle material | Stainless steel |
| Liquid temperature | -20℃~120℃ |
| Permissible ambient temperature | -40℃~85℃ |
| Permissible ambient humidity | 10…90% RH, non-condensing |
| Cable entry | M18 Fitting |
| Housing | Fire Resistance ABS or PC |
| Protection | IP65 |
| Color | White |
| Weight | 1.0Kg |
Types of Model
| Model | Connection |
| KWFS-1 | 1/2" -14 NPT |
| KWFS-2 | 3/4" -14 NPT |
| KWFS-3 | 1" -11½ NPT |
| Line Pipe Size(in.) | 1 | 1-¼ | 1-½ | 2 | 2-¼ | 3 | 4 | 4Z | 5 | 5Z | 6 | 6Z | 8 | 8Z | |
| Min.flow | Flow Increase ①&②Connected |
4.2 (1.0) |
5.8 (1.3) |
7.5 (1.7) |
13.7 (3.1) |
17.6 (4.0) |
27.5 (6.2) |
64..7 (14.7) |
35.2 (8.0) |
125 (28.4) |
57.01 (12.9) |
190.0 (43.1) |
74.0 (16.8) |
374.7 (85.1) |
204.7 (46.5) |
| Flow Decrease ①&③Connected |
2.5 (0.6) |
3.7 (0.8) |
5.0 (1.1) |
9.7 (2.2) |
11.9 (2.7) |
19 (4.3) |
50.1 (11.4) |
26.9 (6.1) |
101.1 (22.9) |
41.0 (9.3) |
158.0 (35.9) |
54.0 (12.3) |
319.7 (72.6) |
170.0 (3806) |
|
| Max.flow | Flow Increase ①&②Connected |
9.2 (2.1) |
13.3 (3.0) |
17.6 (4.0) |
26.9 (6.1) |
30.8 (7.0) |
50.2 (11.4) |
127.6 (29.0) |
81.0 (18.4) |
245.0 (55.6) |
118.0 (26.8) |
374.7 (85.1) |
144.0 (32.7) |
759.5 (172.5) |
415.0 (94.2) |
| Flow Decrease ①&③Connected |
8.1 (2.0) |
12.5 (2.8) |
16.3 (3.7) |
25.1 (5.7) |
28.6 (6.5) |
47.1 (10.7) |
122.0 (27.7) |
76.2 (17.3) |
234.7 (53.3) |
111.0 (25.2) |
359.7 (81.7) |
134.7 (30.6) |
729.6 (165.7) |
400.6 (90.8) |
|
Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)
The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.
Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.

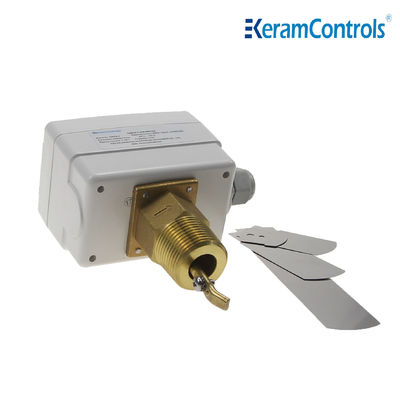

| Install Paddle | |
| Pipe | NO. |
| 1" | 1 |
| 11/4" | 1 |
| 11/2" | 1 |
| 2" | 1,2 |
| 21/2" | 1,2 |
| 3" | 1,2,3 |
| 4" | 1,2,3 |
| 4"Z | 1,2,3,4 |
| 5" | 1,2,3 |
| 5"Z | 1,2,3,4 |
| 6" | 1,2,3 |
| 6"Z | 1,2,3,4 |
| 8" | 1,2,3 |
| 8"Z | 1,2,3,4 |
