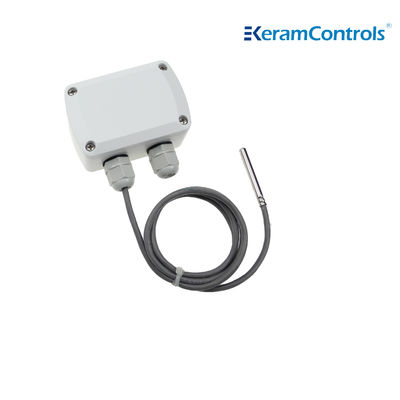

-40~+200℃ IP65 Temperature Sensor For HVAC

-40~+200℃ IP65 Temperature Sensor For HVAC
-40~+200℃ IP65 Temperature Sensor For HVAC
-40~+200℃ IP65 Temperature Sensor For HVAC -40~+200℃ IP65 Temperature Sensor For HVAC -40~+200℃ IP65 Temperature Sensor For HVAC -40~+200℃ IP65 Temperature Sensor For HVAC -40~+200℃ IP65 Temperature Sensor For HVAC

Large Image :  -40~+200℃ IP65 Temperature Sensor For HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS120
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

-40~+200℃ IP65 Temperature Sensor For HVAC

Description
Temperature Sensitive Element: NTC 10k B3435 Accuracy B:3435K±1% Response Time: <1min / < 30s, Measuring The Liquid In The Pipeline
High Light:

200deg Temperature Sensor

,

HVAC IP65 Temperature Sensor

-40~+200℃ IP65 temperature Sensor for HVAC



Description



KTS120 cable temperature sensor adopts PC and ABS engineering plastics, which can effectively adapt to various working environments, and the protection level reaches IP65, which can effectively protect the internal electronic components and greatly improve the service life and accuracy of the sensor.


Feature



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.


Technical Data



Model KTS120
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -30...+ 70℃ (body) / -30...+ 200℃(probe)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5




Notes On Disposal

-40~+200℃ IP65 Temperature Sensor For HVAC 0

Product Certification

-40~+200℃ IP65 Temperature Sensor For HVAC 1


Additional Instructions



Temperature compensation

Probe length Cable resistance Temperature compensation
0.5m 0.086Ω 0.22℃
2m 0.344Ω 0.88℃
3m 0.516Ω 1.32℃

*When the temperature resistance of high resistance value (R>1000Ω), the temperature compensation can be ignored


Dimensions(mm)



-40~+200℃ IP65 Temperature Sensor For HVAC 2


Ordering Guide



KTS120- Element-Probe length



Model Element Probe length
KTS120 PT100 Class A (1) 0.5m (A)
PT1000 Class A (2) 2m (B)
NTC 10k B395 (3) 3m (C)
NTC 10k B3435 (4)
NTC 1k (5)
NTC 2k (6)



-40~+200℃ IP65 Temperature Sensor For HVAC 3

-40~+200℃ IP65 Temperature Sensor For HVAC 4-40~+200℃ IP65 Temperature Sensor For HVAC 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
