NTC 10k B3435 Temperature Sensor For Controlling Temperature
| Temperature Sensitive Element: | NTC 10k B3435 | Operating Temperature: | -40...+110°C (Air Duct) / -40...+200°C (Liquid Pipeline) |
|---|---|---|---|
| Storage Temperature: | -30...+70°C | ||
| Highlight |
NTC 10k B3435 Temperature Sensor,IP65 Temperature Sensor |
||

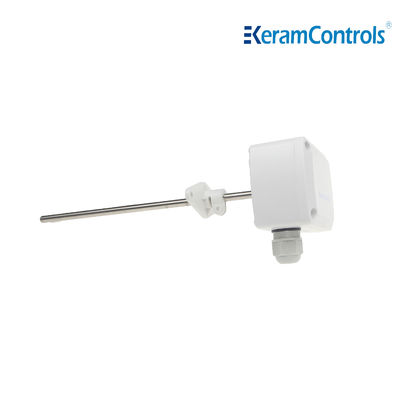

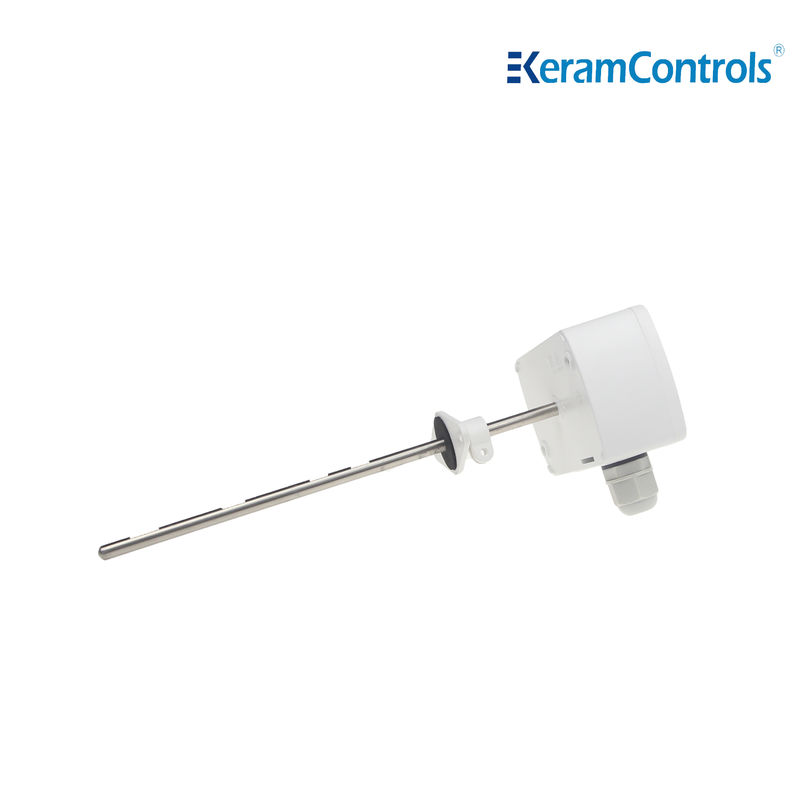

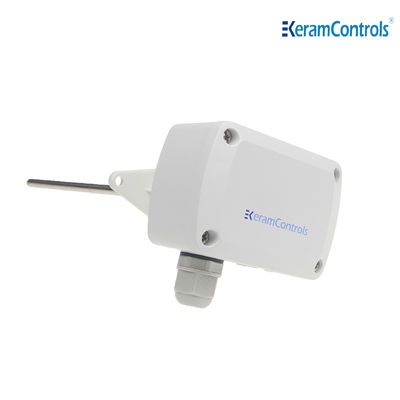

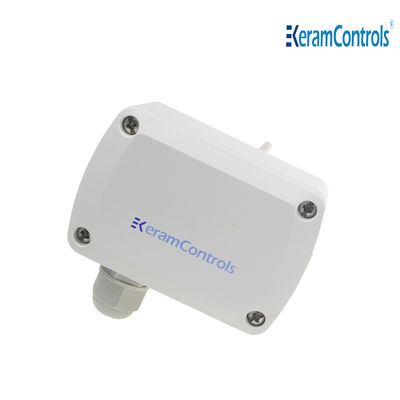

NTC 10k B3435 temperature Sensor for controlling temperature
Description
KTS110 pipeline temperature sensor is a temperature sensor with high precision and resistive output. It uses high temperature resistant engineering plastic as the shell and the protection level reaches IP65, which makes it very suitable for complex working environment. Its working temperature range reaches -40~+110°C (Air duct) / -40~+200°C (Liquid pipeline).
Features
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS110 temperature transmitter used for temperature measurement in heating,ventilation and air conditioning systems enabling weather-dependenttemperature regulation.
Technical Data
| Model | KTS110 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS110-Element-Probe length
| Model | Element | Probe Length | ||
| KTS110 | PT100 Class A | (1) | 65mm | (A) |
| PT1000 Class A | (2) | 120mm | (B) | |
| NTC 10k B395 | (3) | 150mm | (C) | |
| NTC 10k B3435 | (4) | 300mm | (D) | |
| NTC 1k | (5) | |||
| NTC 2k | (6) | |||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
