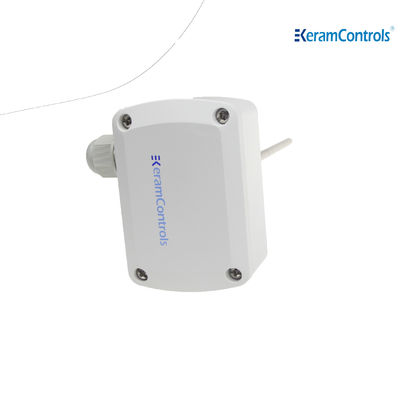

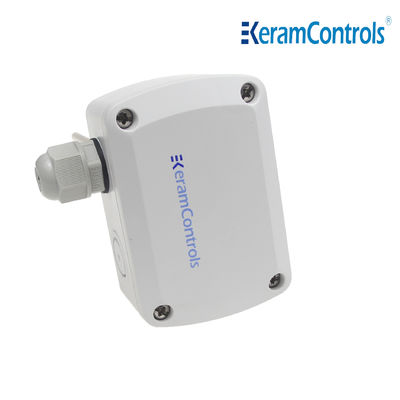

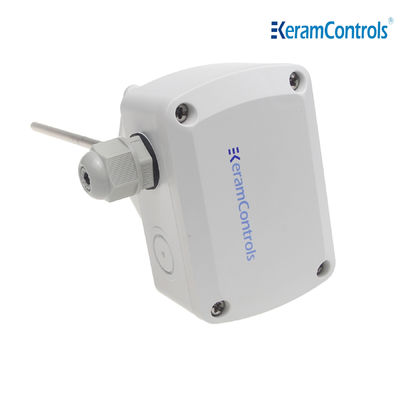

NTC 1k Temperature Sensor For BA System

NTC 1k Temperature Sensor For BA System
NTC 1k Temperature Sensor For BA System
NTC 1k Temperature Sensor For BA System NTC 1k Temperature Sensor For BA System NTC 1k Temperature Sensor For BA System NTC 1k Temperature Sensor For BA System NTC 1k Temperature Sensor For BA System

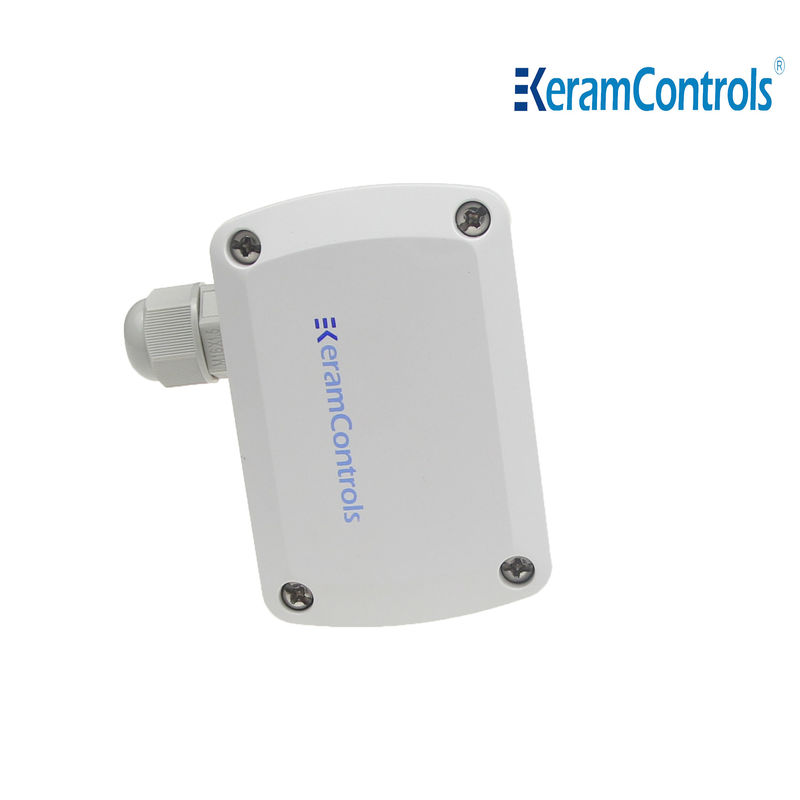

Large Image :  NTC 1k Temperature Sensor For BA System

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

NTC 1k Temperature Sensor For BA System

Description
Temperature Sensitive Element: NTC 1k Accuracy B:3500K±1% Measuring Range: -40...+200°C
Housing Material: PC & ABS, UL94-V0
High Light:

NTC 1k Temperature Sensor

,

BA System NTC 1k Temperature Sensor

NTC 1k temperature Sensor for BA system



Description

Temperature is one of the physical parameters that humans interact with the most in nature. Whether it is in a production experiment site or in a residential and leisure place, the collection or control of temperature is very frequent and important. Moreover, the networked remote collection of temperature and alarm is a modern technology of inevitable trend of development. Since the temperature is closely related to the physical quantity itself and the actual people's life, the temperature sensor will be generated accordingly.



So our KTS series temperature sensor is to use the relationship between the temperature of the thermal resistance and the change of resistance value to check the temperature change, so as to control the temperature of the medium.


Features



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS110 temperature transmitter used for temperature measurement in heating,ventilation and air conditioning systems enabling weather-dependenttemperature regulation.


Technical Data



Model KTS110
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5



Notes On Disposal



NTC 1k Temperature Sensor For BA System 0

Product Certification



NTC 1k Temperature Sensor For BA System 1


Dimensions(mm)



NTC 1k Temperature Sensor For BA System 2


Ordering Guide



KTS110-Element-Probe length



Model Element Probe Length
KTS110 PT100 Class A (1) 65mm (A)
PT1000 Class A (2) 120mm (B)
NTC 10k B395 (3) 150mm (C)
NTC 10k B3435 (4) 300mm (D)
NTC 1k (5)
NTC 2k (6)



NTC 1k Temperature Sensor For BA System 3

NTC 1k Temperature Sensor For BA System 4NTC 1k Temperature Sensor For BA System 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
