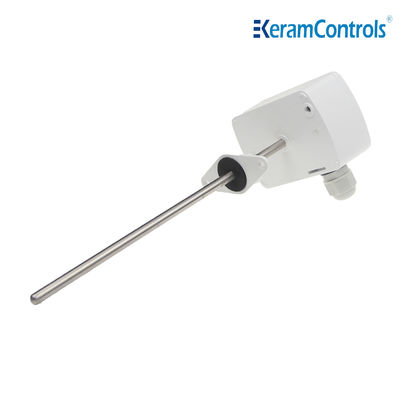

NTC 2k PC Plastic Temperature Sensor For Controlling Temperature

Certification
China Keram (Nanjing)ELECTRICAL Equipment Co., Ltd. certification
China Keram (Nanjing)ELECTRICAL Equipment Co., Ltd. certification
Customer Reviews
The flow switch is very good, the appearance is also beautiful, in line with the manufacturer's description.

—— KENT

The differential pressure transmitter is in line with my use requirements, and the manufacturer is also very cooperative, helping me solve a lot of problems, and the service is very good.

—— John

I'm Online Chat Now

NTC 2k PC Plastic Temperature Sensor For Controlling Temperature

NTC 2k PC Plastic Temperature Sensor For Controlling Temperature
NTC 2k PC Plastic Temperature Sensor For Controlling Temperature
NTC 2k PC Plastic Temperature Sensor For Controlling Temperature NTC 2k PC Plastic Temperature Sensor For Controlling Temperature NTC 2k PC Plastic Temperature Sensor For Controlling Temperature NTC 2k PC Plastic Temperature Sensor For Controlling Temperature NTC 2k PC Plastic Temperature Sensor For Controlling Temperature

Large Image :  NTC 2k PC Plastic Temperature Sensor For Controlling Temperature

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

NTC 2k PC Plastic Temperature Sensor For Controlling Temperature

Description
Temperature Sensitive Element: NTC 2k Accuracy B:3977K±0.3% Protection Class: IP65/NEMA 4
Cable Gland: M16*1.5
High Light:

NTC 2k PC Plastic Temperature Sensor

,

M16x1.5 Plastic Temperature Sensor

,

KTS110 Sensor Transmitters

NTC 2k PC plastic temperature Sensor for controlling temperature



Description

KTS110 series is a high-precision pipeline temperature sensor with low price and excellent workmanship. It can meet the requirements of different customer groups. The response time of the sensor is extremely fast. It can be used to measure the temperature change of liquid or gas and output signals in time. , up to <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline.


Features



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS110 temperature transmitter used for temperature measurement in heating,ventilation and air conditioning systems enabling weather-dependenttemperature regulation.


Technical Data



Model KTS110
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5



Notes On Disposal



NTC 2k PC Plastic Temperature Sensor For Controlling Temperature 0

Product Certification



NTC 2k PC Plastic Temperature Sensor For Controlling Temperature 1


Dimensions(mm)



NTC 2k PC Plastic Temperature Sensor For Controlling Temperature 2


Ordering Guide



KTS110-Element-Probe length



Model Element Probe Length
KTS110 PT100 Class A (1) 65mm (A)
PT1000 Class A (2) 120mm (B)
NTC 10k B395 (3) 150mm (C)
NTC 10k B3435 (4) 300mm (D)
NTC 1k (5)
NTC 2k (6)



NTC 2k PC Plastic Temperature Sensor For Controlling Temperature 3

NTC 2k PC Plastic Temperature Sensor For Controlling Temperature 4NTC 2k PC Plastic Temperature Sensor For Controlling Temperature 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
