Product Details:
|
| Temperature Sensitive Element: | PT100 Class A Accuracy ±(0.15+0.002t) | Operating Temperature: | -40...+110°C (Air Duct) / -40...+200°C (Liquid Pipeline) |
|---|---|---|---|
| Storage Temperature: | -30...+70°C | ||

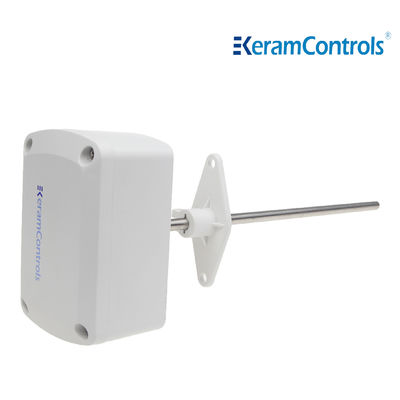

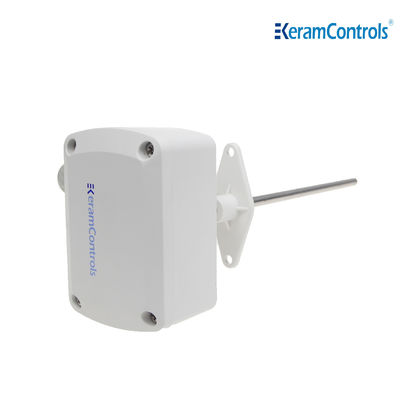

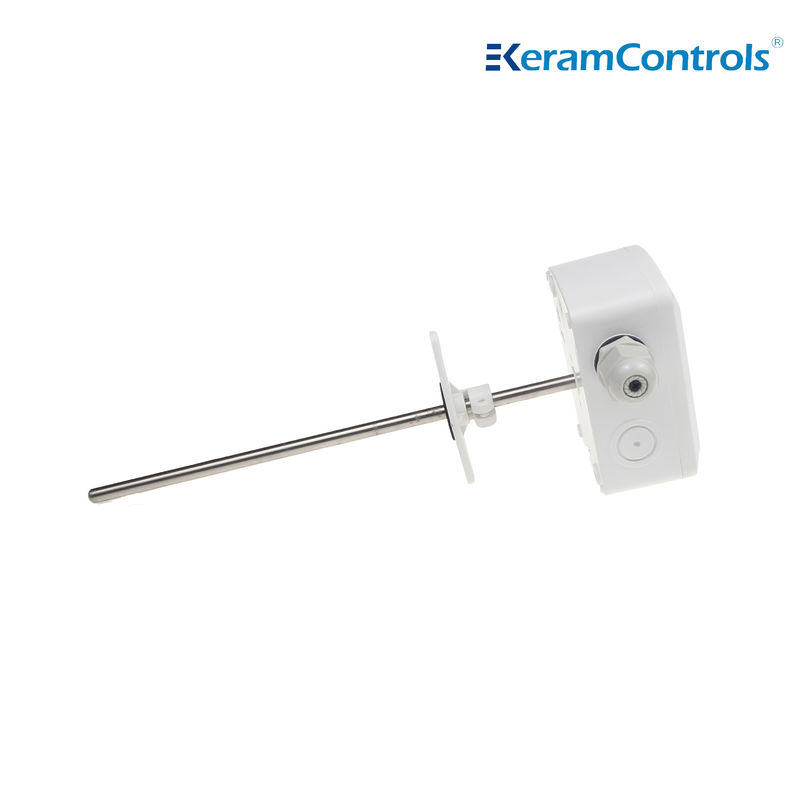

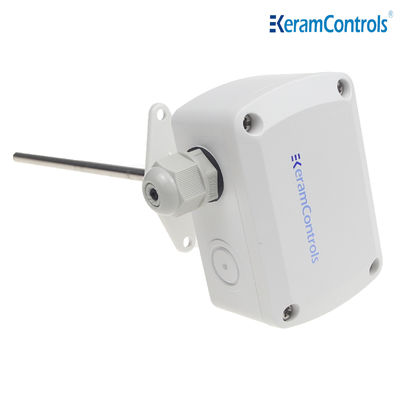

| High Light: | 65mm Length Probe Temperature Sensor,Duct Mounted PT100 Temperature Sensor |
||
Our product's material contain valuable materials that should be recycled rather than treated as domestic waste.Please pay attention to the relevant regulations of local disposal.And our body material is made of PC and ABS material, which can withstand relatively high temperature, coupled with the unique design, its protection level reaches IP65, which can make the sensor used in harsh outdoor environments.
KTS110 temperature transmitter used for temperature measurement in heating,ventilation and air conditioning systems enabling weather-dependenttemperature regulation.
| Model | KTS110 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
KTS110-Element-Probe length
| Model | Element | Probe Length | ||
| KTS110 | PT100 Class A | (1) | 65mm | (A) |
| PT1000 Class A | (2) | 120mm | (B) | |
| NTC 10k B395 | (3) | 150mm | (C) | |
| NTC 10k B3435 | (4) | 300mm | (D) | |
| NTC 1k | (5) | |||
| NTC 2k | (6) | |||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
