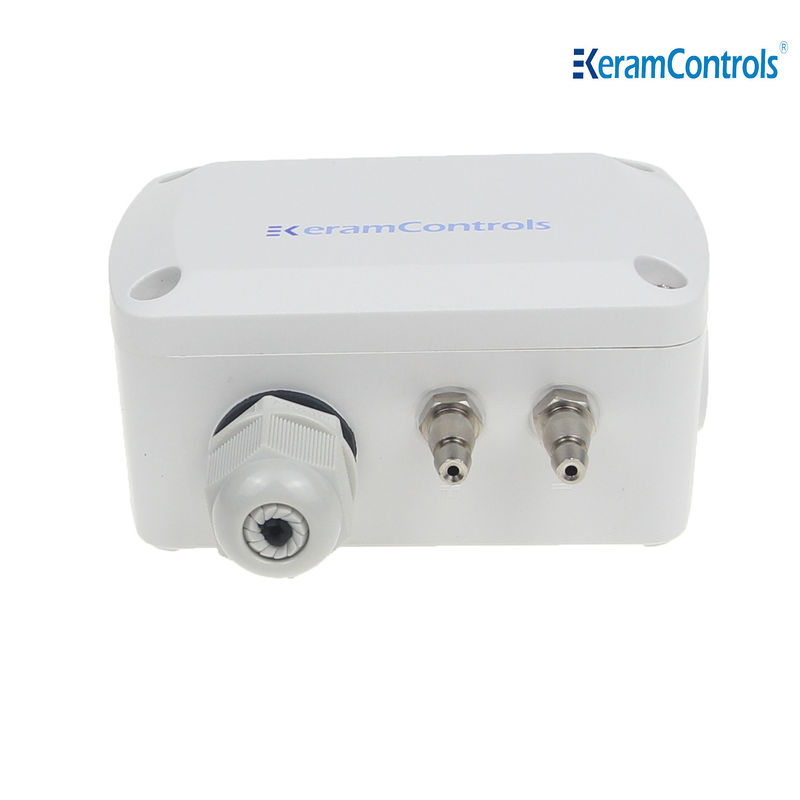

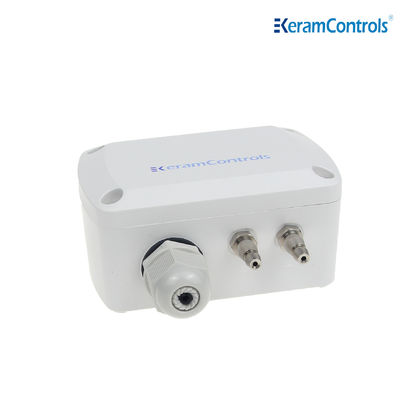

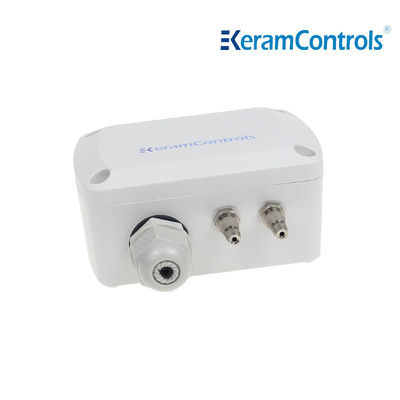

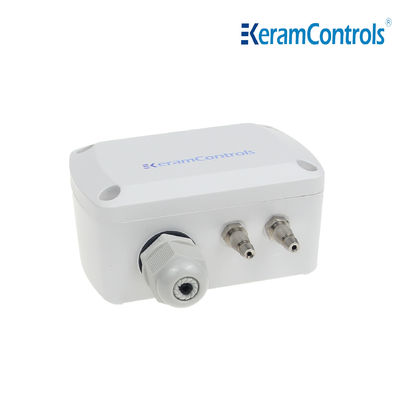

0-1000pa Differential Pressure Transmitter For Pharmaceutical Clean Rooms
| Accuracy: | <±1% FS@-5 To +65℃ | Response Time: | 0.5s |
|---|---|---|---|
| Output Signal: | 4-20mA（2wire） | ||
| Highlight |
1000pa Differential Pressure Transmitter,Pharmaceutical Clean Rooms Differential Pressure Transmitter |
||
0-1000pa differential pressure transmitter for pharmaceutical clean rooms
Description
KDP110 differential pressure transmitter is a differential pressure transmitter specially designed for wall installation. Its shell is made of PC and ABS engineering plastics, which can effectively adapt to high temperature environment and can be used in -20~+80℃ environment.
Feature
- Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
- Auto zero manual calibration
- Voltage, current, digital signal output
- Standard accuracy <±1% FS
- IP65 house protection
- When ≤100Pa,accuracy＜±3%FS±2Pa
Application
- HVAC system
- Pharmaceutical clean rooms
- Electronic clean rooms
- Medical clean rooms
- Commercial buildings
- Public transport hub
Technical data
| Model | KDP110 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) | |
| 0~5V/0~10VDC(3wire) | |
| RS-485 | |
| Customized | |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Cable Gland | M16*1.5 |
Dimension
Measuring range adjustment
Output setting(3 wire Model)
Manual Zero-point correction
Ordering guide
KDP110-Range-Output
| Model | Range | Output | ||
| KDP110 | -100~+100Pa | (1) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | 4-20mA(3 wire) | (F) | |
| -2000~+2000Pa | (3) | 0-5/0-10V(3 wire) | (G) | |
| -10000~+10000Pa | (4) | RS-485 | (H) | |
| Customized | ||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
