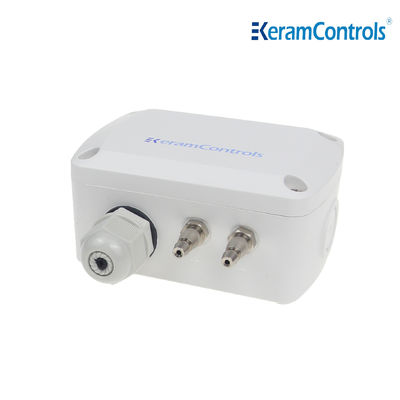

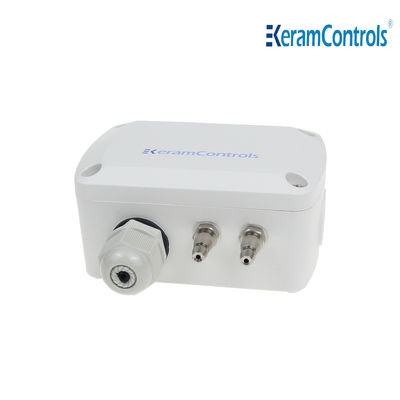

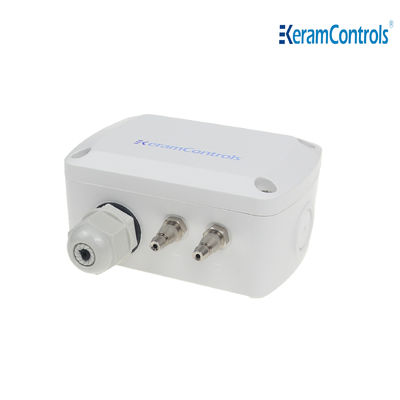

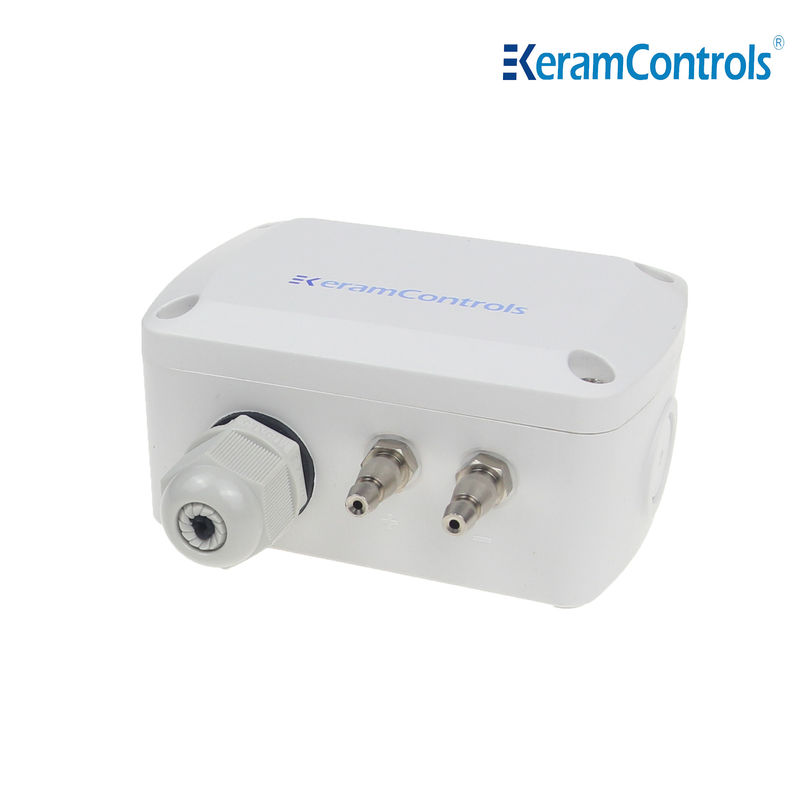

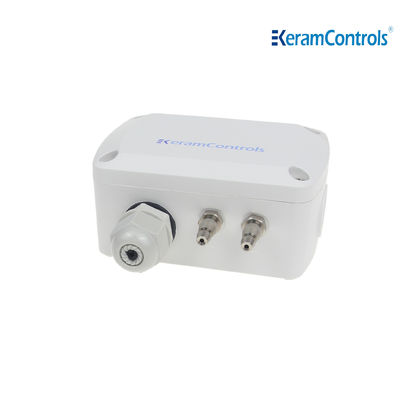

-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC

-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC
-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC
-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC -250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC -250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC -250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC -250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC

Large Image :  -250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC

Description
Output Signal: 0~5V Media: Air And Neutral Gases
Operating Temperature: -20…+70℃
High Light:

ABS Plastic Differential Pressure Transmitter

,

250pa Plastic Differential Pressure Transmitter

0-500pa IP65 differential pressure transmitter for clean rooms



Description



KDP110 wall-type differential pressure transmitter can be set with different ranges for customers to choose according to customer needs. The main measurement unit of this series is Pa, and it can be changed according to the actual use requirements of customers. The main optional measurement units are Pa, mmH2O ,inWG,mmHG,KPa,mbar.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 0-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 1


Measuring range adjustment



-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 2


Output setting(3 wire Model)



-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 3

-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 4


Manual Zero-point correction



-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 6

-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 7

-250-250pa PC And ABS Plastic Differential Pressure Transmitter For HVAC 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
