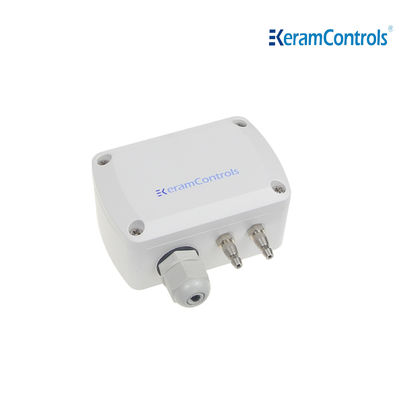

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid

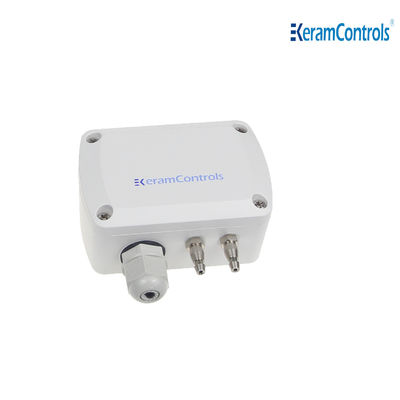

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid

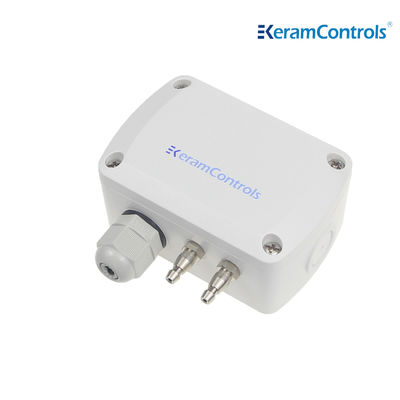

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid
-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid -500~+500pa Micro Differential Pressure Transmitter For Air And Liquid -500~+500pa Micro Differential Pressure Transmitter For Air And Liquid -500~+500pa Micro Differential Pressure Transmitter For Air And Liquid -500~+500pa Micro Differential Pressure Transmitter For Air And Liquid

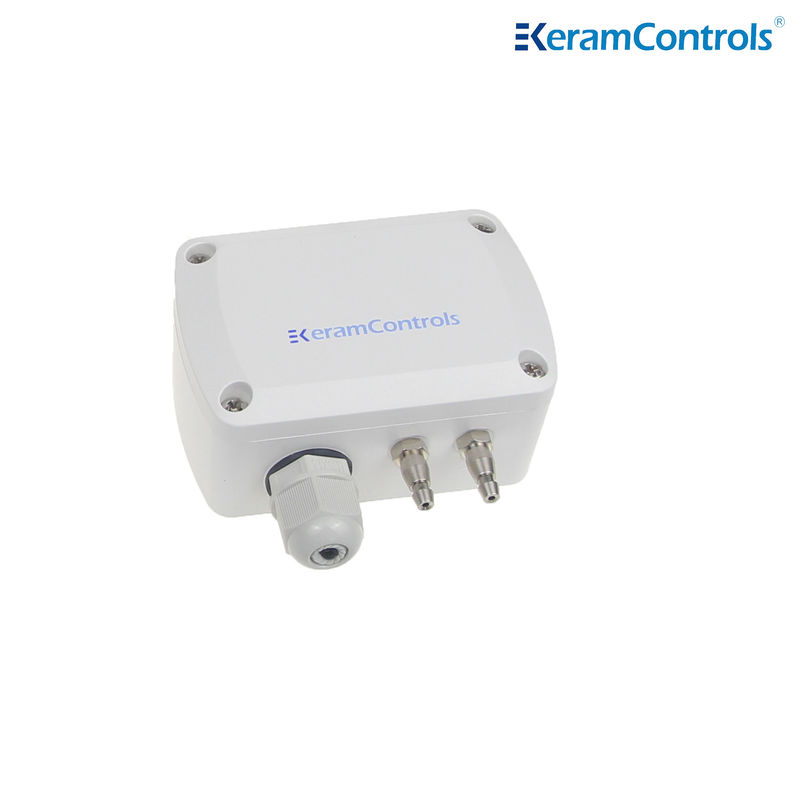

Large Image :  -500~+500pa Micro Differential Pressure Transmitter For Air And Liquid

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid

Description
Output Signal: 0~10V Operating Temperature: -20…+70℃
Storage Temperature: -40…+60℃
High Light:

Micro Differential Pressure Transmitter

,

500pa Air Differential Pressure Transmitter

-500~+500pa micro differential pressure transmitter for air and liquid



Description

KDP110 series differential pressure transmitter is a transmitter with a variety of output signals. ~5V/0~10VDC (3wire), RS-485, at the same time, in order to meet different customer needs, we support customer customized processing, we have our own professional design team, and have tested the site to ensure the quality of the product.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 0-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 1


Measuring range adjustment



-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 2


Output setting(3 wire Model)



-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 3

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 4


Manual Zero-point correction



-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 6

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 7

-500~+500pa Micro Differential Pressure Transmitter For Air And Liquid 8
