Product Details:
|
| Operating Temperature: | -20…+70℃ | Power Consumption: | ＜1.5W |
|---|---|---|---|
| Tolerated Over Pressure: | X15 | ||
| Highlight: | 3wire Differential Pressure Transmitter,10VDC Differential Pressure Transmitter |
||

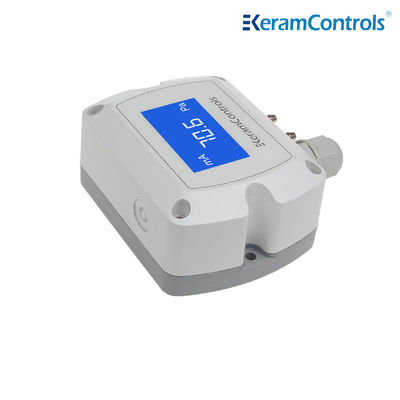

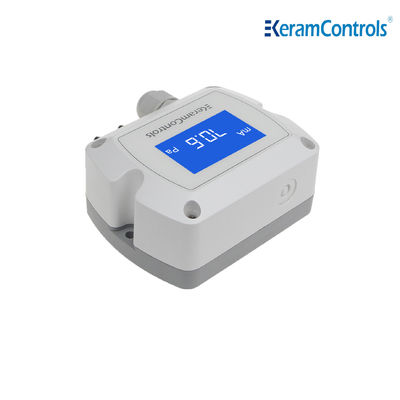

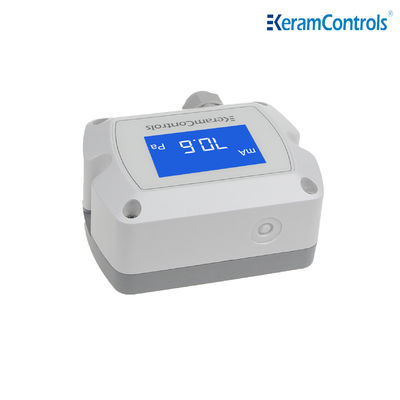

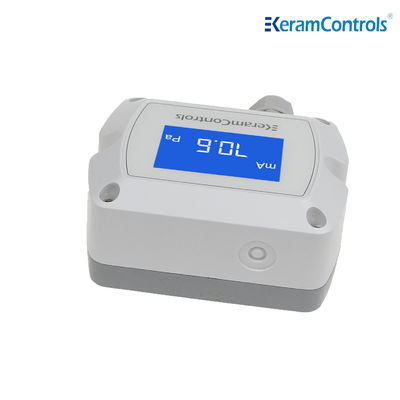

KDP110 series differential pressure transmitter, its rigorous design enables it to be used in harsh environments and still maintain excellent accuracy requirements, the accuracy can reach <±1% FS, and the stability can reach ±0.01 % at FS /Year, It can be well applied to measure the differential pressure of liquid or gas.
| Model | KDP210 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) | |
| 0~5V/0~10VDC(3wire) | |
| RS-485 | |
| Customized | |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Display | Backlight LCD display(4-20mA 2 wire without backlight) |
| Cable Gland | M16*1.5 |
KDP210-Range-display-output
| Model | Ranges | Display | output | |||
| KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | 4-20mA(3 wire) | (F) | |||
| -2000~+2000Pa | (3) | 0-5/0-10VDC (3 wire) | (G) | |||
| -10000~+10000Pa | (4) | RS-485 | (H) | |||
| Customized | ||||||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
