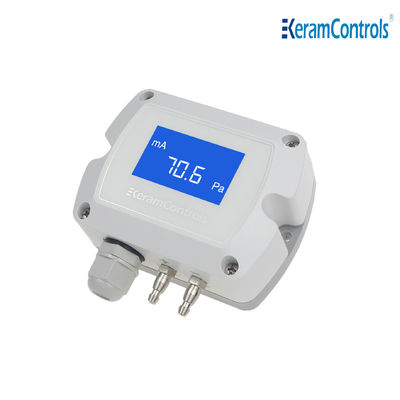

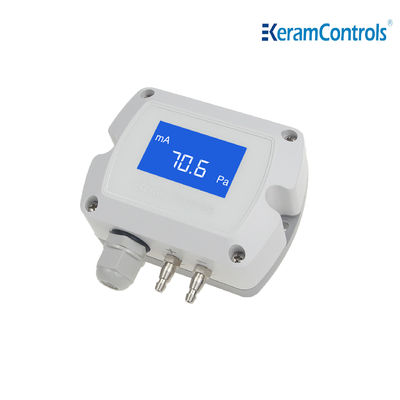

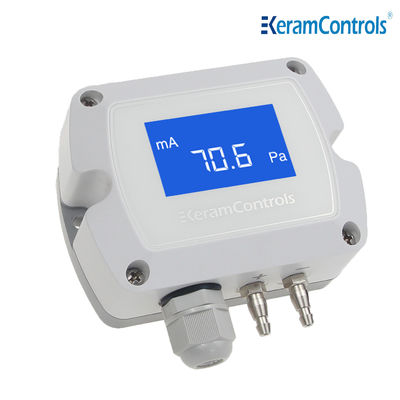

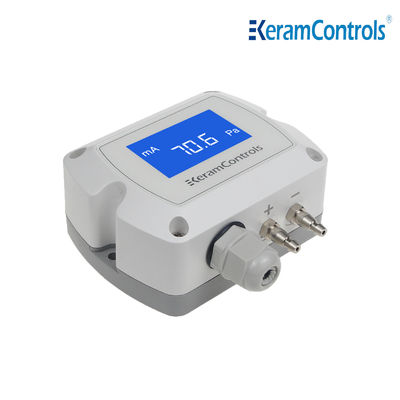

-100~100pa LCD Display Differential Pressure Transmitter For HVAC

-100~100pa LCD Display Differential Pressure Transmitter For HVAC
-100~100pa LCD Display Differential Pressure Transmitter For HVAC
-100~100pa LCD Display Differential Pressure Transmitter For HVAC -100~100pa LCD Display Differential Pressure Transmitter For HVAC -100~100pa LCD Display Differential Pressure Transmitter For HVAC -100~100pa LCD Display Differential Pressure Transmitter For HVAC -100~100pa LCD Display Differential Pressure Transmitter For HVAC

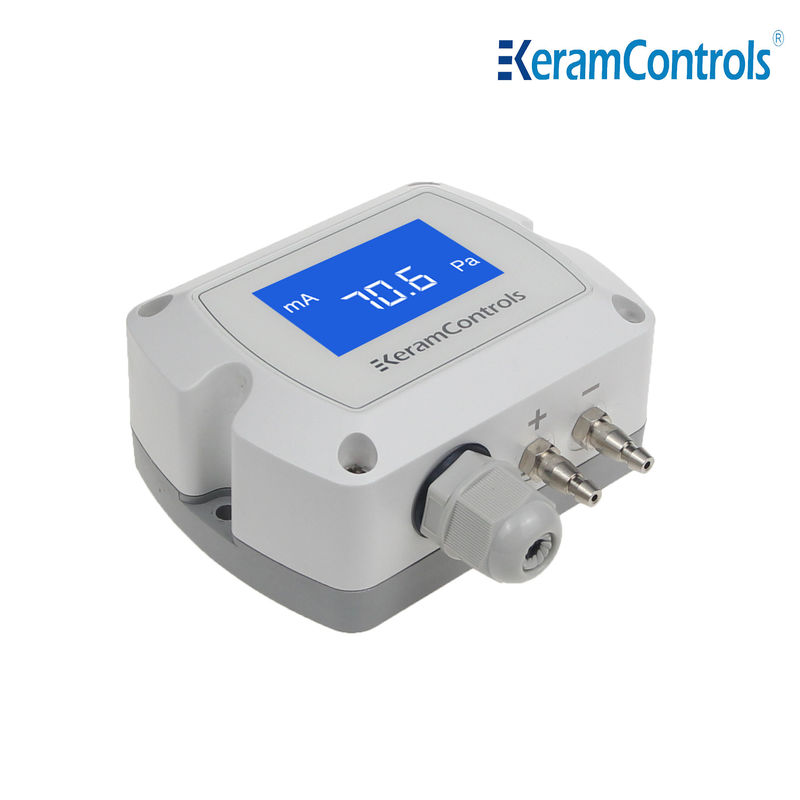

Large Image :  -100~100pa LCD Display Differential Pressure Transmitter For HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

-100~100pa LCD Display Differential Pressure Transmitter For HVAC

Description
Housing Material: PC&ABS,UL94V-0 Display: Blacklight LCD
Tolerated Over Pressure: X15
Highlight:

Differential Pressure Transmitter For HVAC

,

100pa LCD Differential Pressure Transmitter



-100~100pa LCD display differential pressure transmitter for HVAC



Description



The KDP210 series differential pressure transmitter can withstand extremely high pressure, the maximum pressure is 15 times the rated value, which is extremely effective to protect the use of the transmitter, and will not damage the equipment due to a sudden increase in pressure.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub
  • When ≤100Pa,accuracy<±3%FS±2Pa

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display(4-20mA 2 wire without backlight)
Cable Gland M16*1.5

Dimension(mm)



-100~100pa LCD Display Differential Pressure Transmitter For HVAC 0

-100~100pa LCD Display Differential Pressure Transmitter For HVAC 1


Measuring range adjustment



-100~100pa LCD Display Differential Pressure Transmitter For HVAC 2


Output setting(3 wire Model)



-100~100pa LCD Display Differential Pressure Transmitter For HVAC 3

-100~100pa LCD Display Differential Pressure Transmitter For HVAC 4


Manual Zero-point correction



-100~100pa LCD Display Differential Pressure Transmitter For HVAC 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



-100~100pa LCD Display Differential Pressure Transmitter For HVAC 6-100~100pa LCD Display Differential Pressure Transmitter For HVAC 7

-100~100pa LCD Display Differential Pressure Transmitter For HVAC 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
