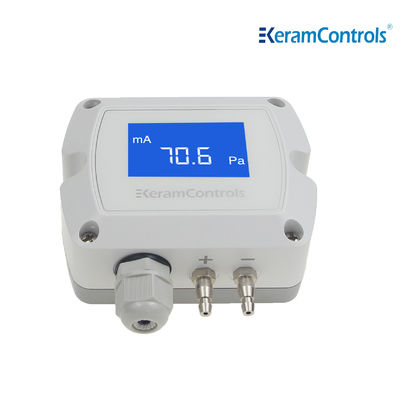

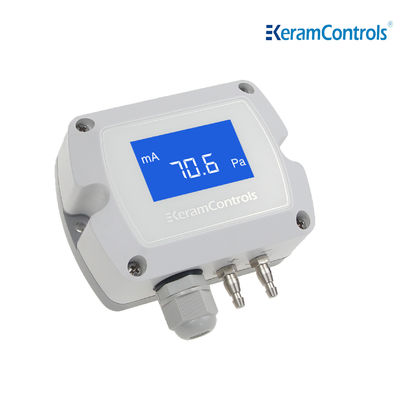

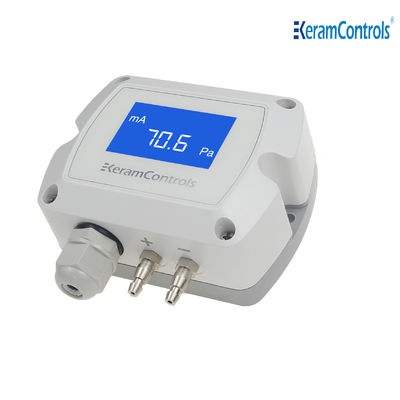

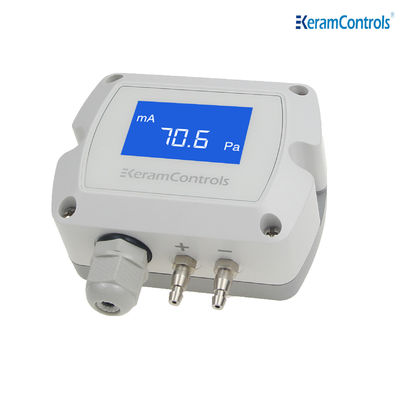

LCD Display Differential Pressure Transmitter

LCD Display Differential Pressure Transmitter
LCD Display Differential Pressure Transmitter
LCD Display Differential Pressure Transmitter LCD Display Differential Pressure Transmitter LCD Display Differential Pressure Transmitter LCD Display Differential Pressure Transmitter LCD Display Differential Pressure Transmitter

Large Image :  LCD Display Differential Pressure Transmitter

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

LCD Display Differential Pressure Transmitter

Description
Display: Blacklight LCD Power Supply: 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Operating Temperature: -20…+70℃
High Light:

LCD Display Differential Pressure Transmitter

,

2000pa Differential Pressure Transmitter



LCD display differential pressure transmitter



Description



The basic principle of differential pressure transmitter The differential pressure from the double-sided pressure guiding pipe directly acts on the double-sided isolation diaphragm of the transmitter sensor, and is transmitted to the measuring element through the sealing liquid in the diaphragm, and the measuring element will measure the difference. The voltage signal is converted into a corresponding electrical signal and transmitted to the converter, and becomes a standard electrical signal output after processing such as amplification.



The KDP210 series differential pressure transmitter is a transmitter specially designed for differential pressure measurement. It is equipped with a backlit display, which can monitor the changes of data well. However, it should be noted that the storage temperature of this equipment needs to be within -40~+60 °C, otherwise it will affect the life of the equipment.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



LCD Display Differential Pressure Transmitter 0

LCD Display Differential Pressure Transmitter 1


Measuring range adjustment



LCD Display Differential Pressure Transmitter 2


Output setting(3 wire Model)



LCD Display Differential Pressure Transmitter 3

LCD Display Differential Pressure Transmitter 4


Manual Zero-point correction



LCD Display Differential Pressure Transmitter 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



LCD Display Differential Pressure Transmitter 6LCD Display Differential Pressure Transmitter 7

LCD Display Differential Pressure Transmitter 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
