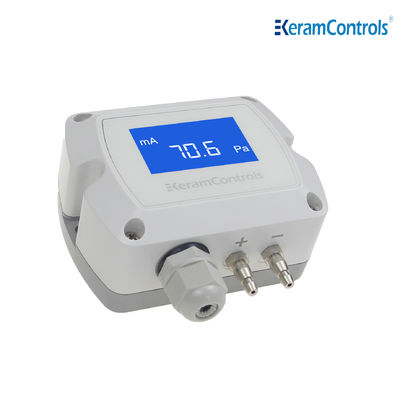

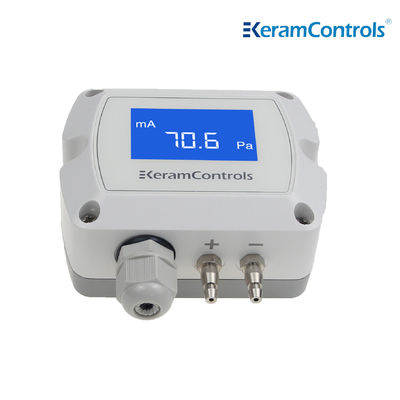

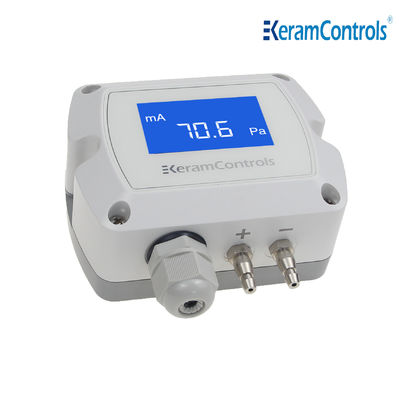

0~+500pa Differential Pressure Transmitter

0~+500pa Differential Pressure Transmitter
0~+500pa Differential Pressure Transmitter
0~+500pa Differential Pressure Transmitter 0~+500pa Differential Pressure Transmitter 0~+500pa Differential Pressure Transmitter 0~+500pa Differential Pressure Transmitter 0~+500pa Differential Pressure Transmitter

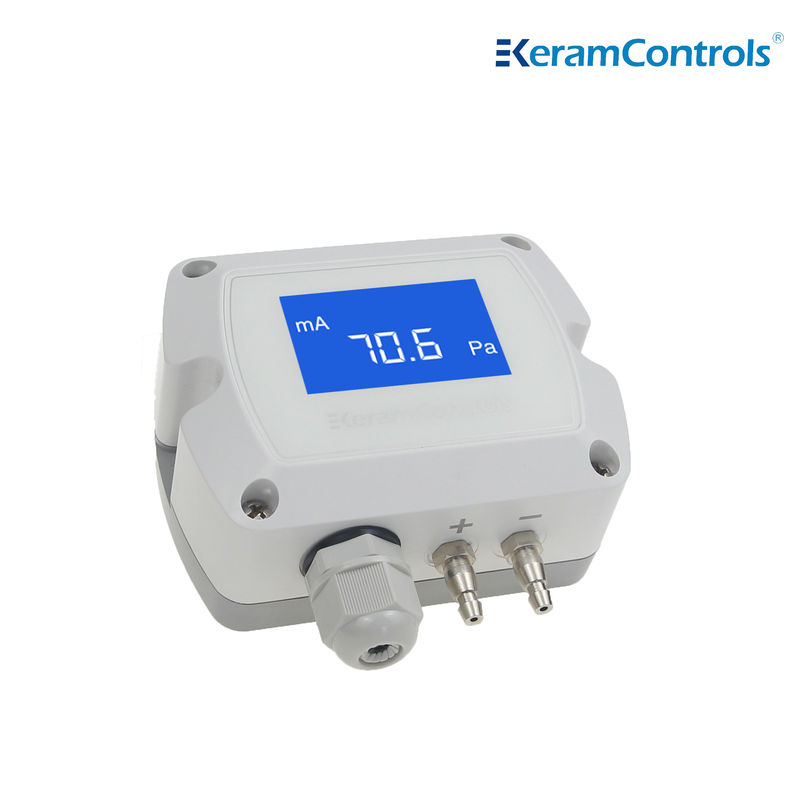

Large Image :  0~+500pa Differential Pressure Transmitter

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

0~+500pa Differential Pressure Transmitter

Description
Resolution: 0.1 Pa; 0.1 MmH2O; 0.01mbar; 0.01mmHG Tolerated Over Pressure: X15
Output Signal: RS-485
High Light:

500pa Differential Pressure Transmitter

,

RS485 Differential Pressure Transmitter



0~+500pa differential pressure transmitter



Description



The shell of KDP210 series differential pressure transmitter is made of PC and ABS materials, which can effectively resist high temperature environment, and the unique design makes it more excellent in protection, which can effectively prevent the entry of external dust, which can not only protect the internal components , and also it can be applied to more harsh environments.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



0~+500pa Differential Pressure Transmitter 0

0~+500pa Differential Pressure Transmitter 1


Measuring range adjustment



0~+500pa Differential Pressure Transmitter 2


Output setting(3 wire Model)



0~+500pa Differential Pressure Transmitter 3

0~+500pa Differential Pressure Transmitter 4


Manual Zero-point correction



0~+500pa Differential Pressure Transmitter 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



0~+500pa Differential Pressure Transmitter 60~+500pa Differential Pressure Transmitter 7

0~+500pa Differential Pressure Transmitter 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
