RS485 LCD Display Temperature Humidity Transmitter For Greenhouse

RS485 LCD Display Temperature Humidity Transmitter For Greenhouse
RS485 LCD Display Temperature Humidity Transmitter For Greenhouse
RS485 LCD Display Temperature Humidity Transmitter For Greenhouse RS485 LCD Display Temperature Humidity Transmitter For Greenhouse RS485 LCD Display Temperature Humidity Transmitter For Greenhouse RS485 LCD Display Temperature Humidity Transmitter For Greenhouse RS485 LCD Display Temperature Humidity Transmitter For Greenhouse

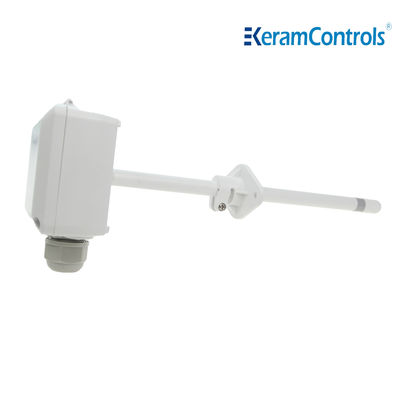

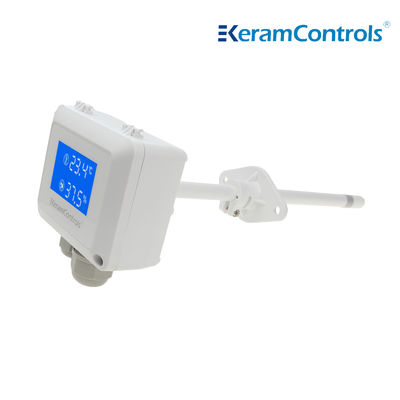

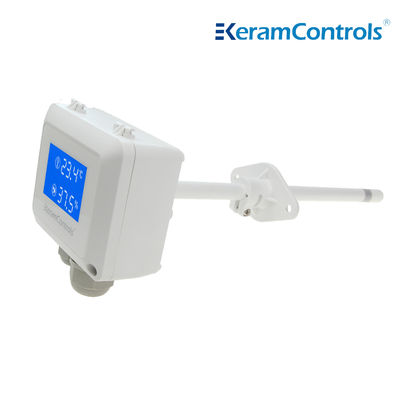

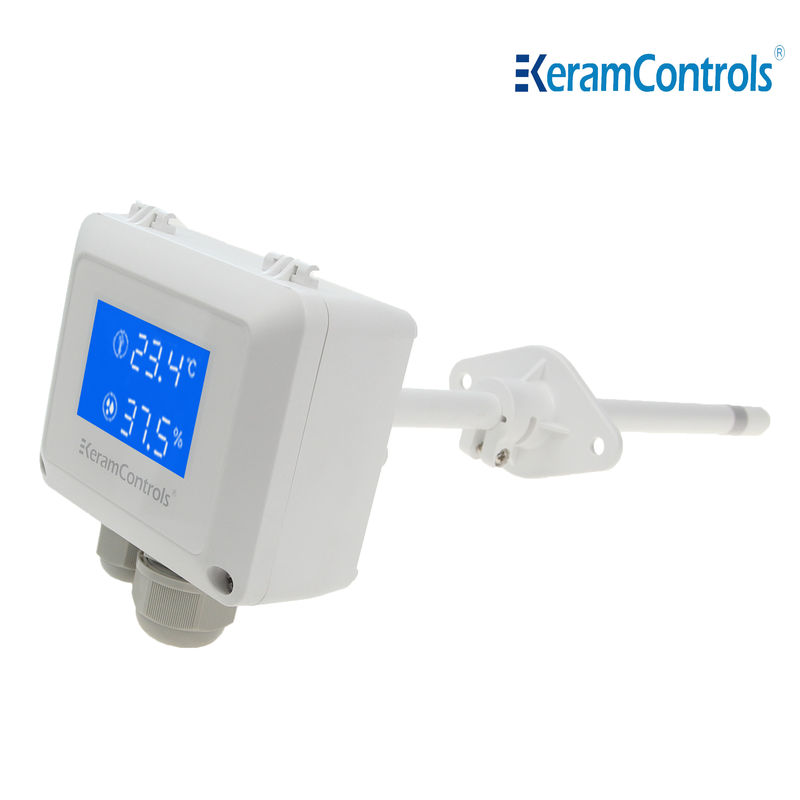

Large Image :  RS485 LCD Display Temperature Humidity Transmitter For Greenhouse

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

RS485 LCD Display Temperature Humidity Transmitter For Greenhouse

Description
Temperature Measurement Range: -35...+80℃ Accuracy: ±0.3℃(20-60℃)
Temperature Dependence: ±0.01℃/℃
High Light:

RS485 LCD Display Temperature Humidity Transmitter

,

NEMA4 Temperature Humidity Transmitter

,

Greenhouse RS485 Temperature Humidity Transmitter



RS485 LCD display temperature humidity transmitter for greenhouse



Description



KTH500 series is a temperature and humidity transmitter with backlight display. It has wall-mounted and ducted types, which can meet different application scenarios of customers. Customers can choose according to their actual use needs.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



RS485 LCD Display Temperature Humidity Transmitter For Greenhouse 0RS485 LCD Display Temperature Humidity Transmitter For Greenhouse 1


Measuring range adjustment



RS485 LCD Display Temperature Humidity Transmitter For Greenhouse 2


Output setting(3 wire Model)



RS485 LCD Display Temperature Humidity Transmitter For Greenhouse 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



RS485 LCD Display Temperature Humidity Transmitter For Greenhouse 4

RS485 LCD Display Temperature Humidity Transmitter For Greenhouse 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
