0~100%RH Temperature Humidity Transmitter For Greenhouse
| Humidity Measurement Range: | 0...100%RH | Accuracy: | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
|---|---|---|---|
| Stability In Typical HVAC Applications: | ±0.01RH/Year | ||
| Highlight |
100%RH Temperature Humidity Transmitter,NEMA4 Greenhouse Temperature Humidity Transmitter,M20 Greenhouse Temperature Humidity Sensor |
||

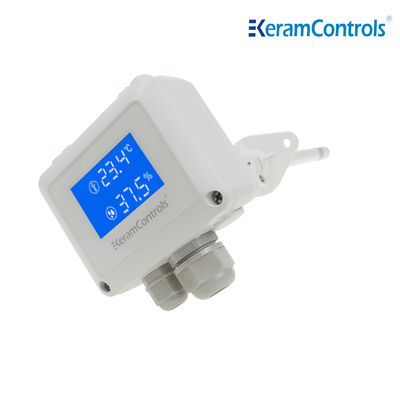

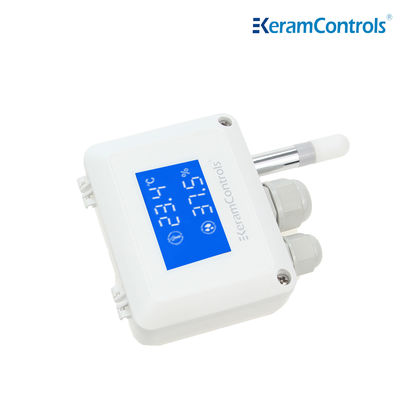

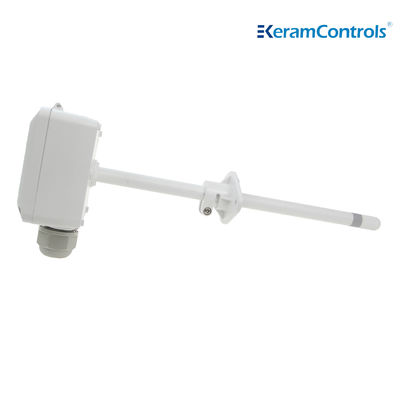

0~100%RH temperature humidity transmitter for greenhouse
Description
KTH500 series is a temperature and humidity transmitter with dual cable connectors, which can meet different application needs of customers and help customers save costs. At the same time, the unique design makes it easy to install, high protection level, stable operation, suitable for various harsh environments .
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
