Product Details:
|
| Electromagnetic Compliance: | EN61326-1,Industrial Environment | Stability In Typical HVAC Applications: | ±0.01RH/Year |
|---|---|---|---|
| Temperature Range: | DIP Switch | ||
| Highlight: | 5V Temperature And Humidity Transmitter,Greenhouse Temperature And Humidity Transmitter,5V Greenhouse Temperature Humidity Transmitter |
||
KTH510 series temperature and humidity transmitter can meet the use of non-passage and regions, because it has designed different power supply and output methods, such as power supply methods are 16-30VDC (2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) to choose from, the output mode is 4-20mA/0-5V/0-10V/RS-485 to choose from, to meet different needs and also customers and the cost of use and installation is reduced.
More convenient wiring and setting
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment
| Model | KTH510 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
KTH510——Output——Installation——Filter
| Model | Output | Installation | Filter | |||

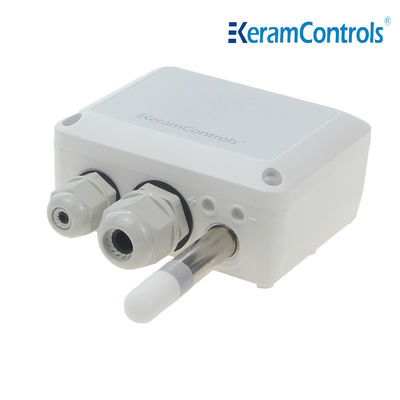

| KTH510 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |

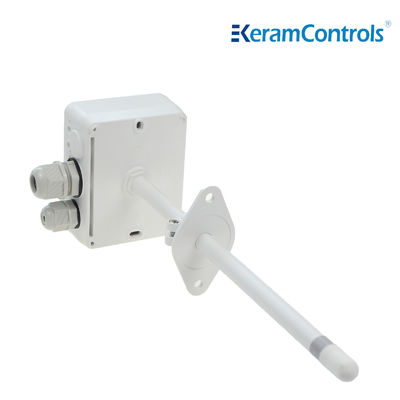

| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
