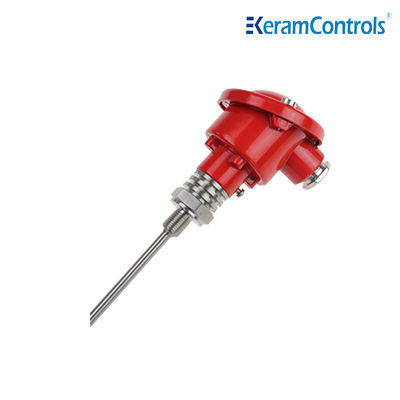

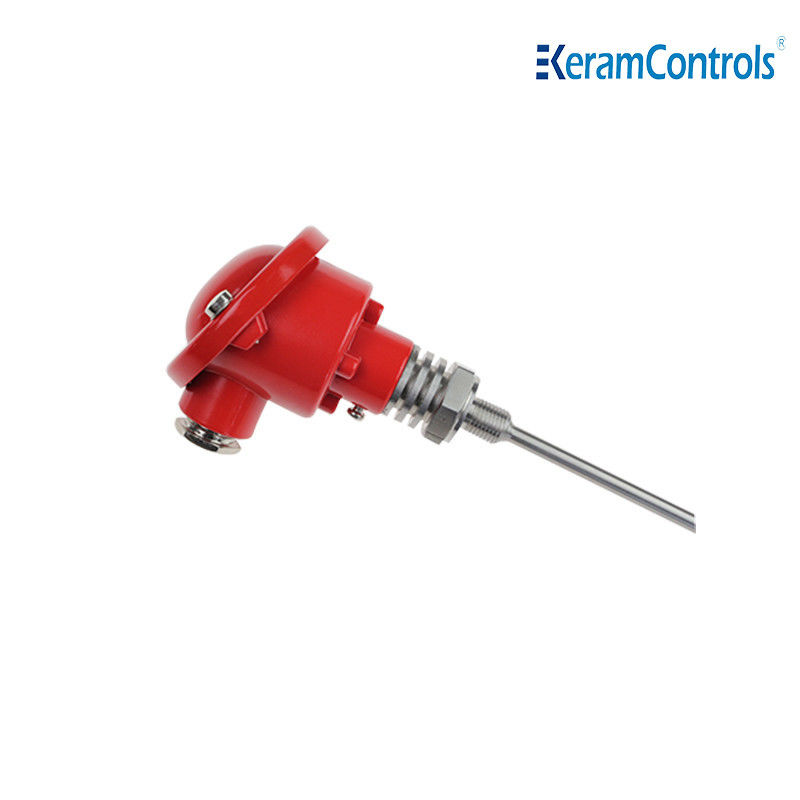

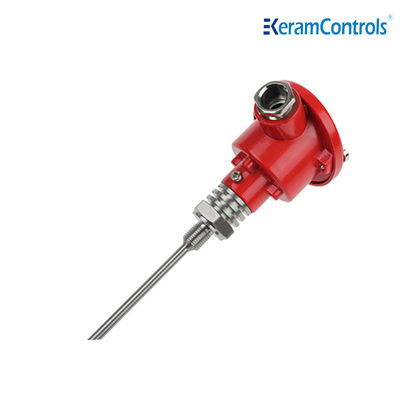

KTP110 Temperature Transmitters For Liquid

KTP110 Temperature Transmitters For Liquid
KTP110 Temperature Transmitters For Liquid
KTP110 Temperature Transmitters For Liquid KTP110 Temperature Transmitters For Liquid KTP110 Temperature Transmitters For Liquid KTP110 Temperature Transmitters For Liquid

Large Image :  KTP110 Temperature Transmitters For Liquid

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTP110
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

KTP110 Temperature Transmitters For Liquid

Description
Name: NTC10K B3435 R25:10KΩ±1% Temperature Sensor: Element Standard Resistance
Element Connection: 2-wire
High Light:

KTP110 Temperature Transmitters

,

IP65 Liquid Temperature Transmitters

,

SS316 Digital Temperature Transmitters

KTP110 temperature transmitters for liquid



Description



Resistance temperature sensor KTP110 with passive output, with connecting head made from aluminium and straight protective tube. The duct temperature sensor is used to detect temperature in liquid or gaseous media. It is used in pipes, heating engineering, compact district heating station, warm and cold water systems, oil and lubrication cycle systems, mechanical and plant engineering


Features



  • Temperature range from -70...+500 °C
  • Different heads available, up to IP65
  • Optional head-mounted transmitter
  • Inserts sheath material stainless steel
  • Suitable for most common thermowells

Application



HVAC system

Green houses

Refrigeration system measuring

Indoor pools


Technical Data



Model KTP110
Temperature sensor Element Standard resistance
NTC10K B3435 R25:10KΩ±1%
Pt100 R0:100Ω
Pt1000 R0:1000Ω
Element connection 2-wire
4-wire optional
Dimensions See dimensional drawing
Connection head Aluminium
Ambient temperature -20 to +100°C
Protective tube SS316
φ: 6mm
Inserted length (EL) 50mm-400mm (see table)
Protection class IP65
Operating temperature -35 to +150°C
Storage temperature -30 to +70°C
Humidity <95% RH, non-precipitating air
F-06 Mounting flange
Galvanized steel
φ: 32mm
Tmax: 700°C
A-B/xx Immersion sleeve, brass, nickel-plated
φ: 8mm
Tmax: 150°C
Pmax: 10 bar
A-Sxx Immersion sleeve, stainless steel
φ: 8mm
Tmax: 600°C
Pmax: 40 bar

Dimensions(mm)



KTP110 Temperature Transmitters For Liquid 0


Ordering Guide



KTP110-E-I



Model Element Inserted length(EL)
KTP110 NTC10K (E) 50mm (I)
Pt100 (F) 100mm (K)
Pt1000 (G) 150mm (L)
    200mm (M)
    250mm (N)
    300mm (O)
    400mm (P)



KTP110 Temperature Transmitters For Liquid 1KTP110 Temperature Transmitters For Liquid 2



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
