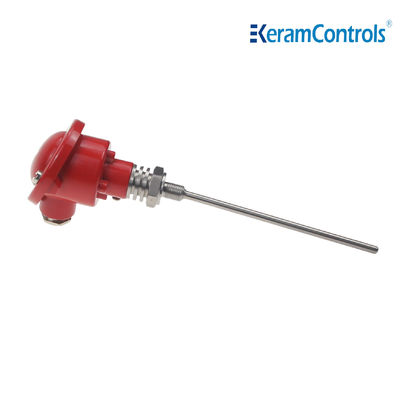

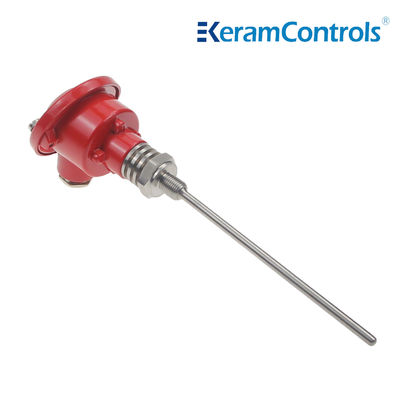

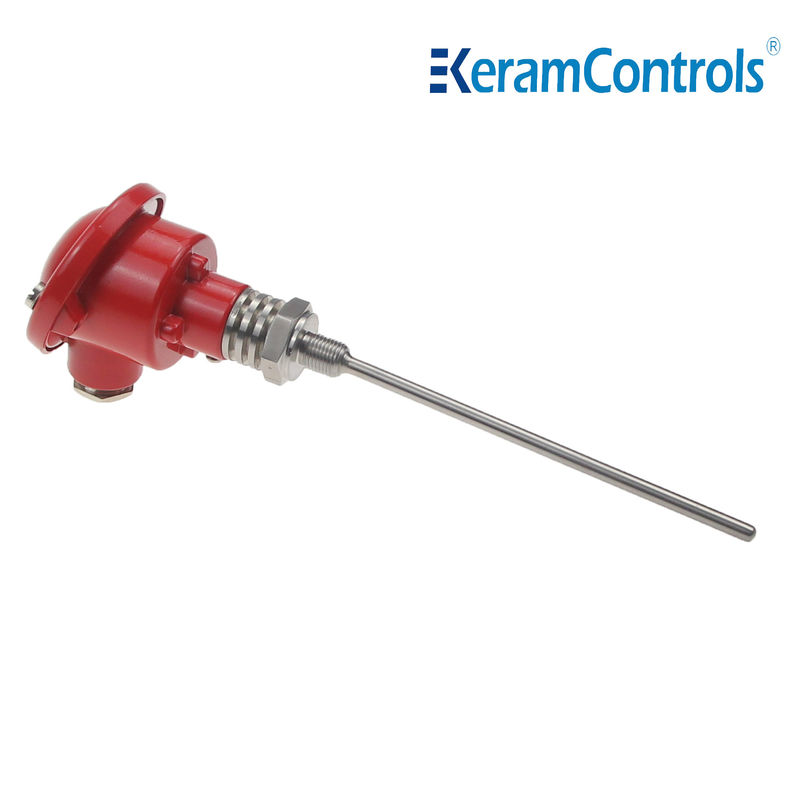

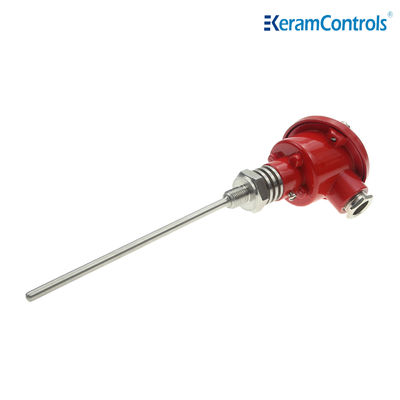

Stainless Steel Temperature Transmitters For Refrigeration System Measuring
| Protective Tube: | Inserted Length (EL) 50mm-400mm | Body Material: | Stainless Steel |
|---|---|---|---|
| Diameter: | Ø5 Mm, Ø6 Mm, Ø6.3 Mm, Ø8 Mm, Ø9 Mm | ||
| Highlight |
SS316 Temperature Transmitters,Refrigeration System Measuring SS316 Temperature Transmitters,IP65 Stainless Steel Temperature Transmitters |
||
Stainless steel temperature transmitters for refrigeration system measuring
Description
KTP110 series temperature sensor is a temperature sensor suitable for various installation methods. It has the characteristics of fast response, waterproof and dustproof, convenient installation, accurate measurement, pressure resistance and shock resistance.
Features
- Temperature range from -70...+500 °C
- Different heads available, up to IP65
- Optional head-mounted transmitter
- Inserts sheath material stainless steel
- Suitable for most common thermowells
Application
HVAC system
Green houses
Refrigeration system measuring
Indoor pools
Technical Data
| Model | KTP110 |
| Temperature sensor | Element Standard resistance |
| NTC10K B3435 R25:10KΩ±1% | |
| Pt100 R0:100Ω | |
| Pt1000 R0:1000Ω | |
| Element connection | 2-wire |
| 4-wire optional | |
| Dimensions | See dimensional drawing |
| Connection head | Aluminium |
| Ambient temperature -20 to +100°C | |
| Protective tube | SS316 |
| φ: 6mm | |
| Inserted length (EL) 50mm-400mm (see table) | |
| Protection class | IP65 |
| Operating temperature | -35 to +150°C |
| Storage temperature | -30 to +70°C |
| Humidity | <95% RH, non-precipitating air |
| F-06 | Mounting flange |
| Galvanized steel | |
| φ: 32mm | |
| Tmax: 700°C | |
| A-B/xx | Immersion sleeve, brass, nickel-plated |
| φ: 8mm | |
| Tmax: 150°C | |
| Pmax: 10 bar | |
| A-Sxx | Immersion sleeve, stainless steel |
| φ: 8mm | |
| Tmax: 600°C | |
| Pmax: 40 bar |
Dimensions(mm)
Ordering Guide
KTP110-E-I
| Model | Element | Inserted length(EL) | ||
| KTP110 | NTC10K | (E) | 50mm | (I) |
| Pt100 | (F) | 100mm | (K) | |
| Pt1000 | (G) | 150mm | (L) | |
| 200mm | (M) | |||
| 250mm | (N) | |||
| 300mm | (O) | |||
| 400mm | (P) | |||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
