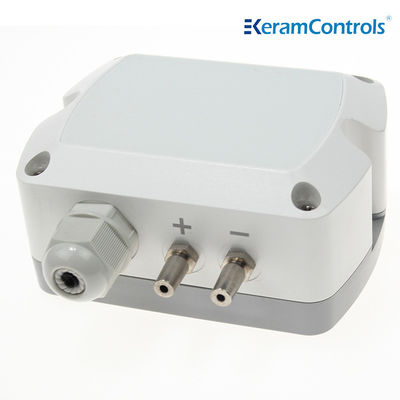

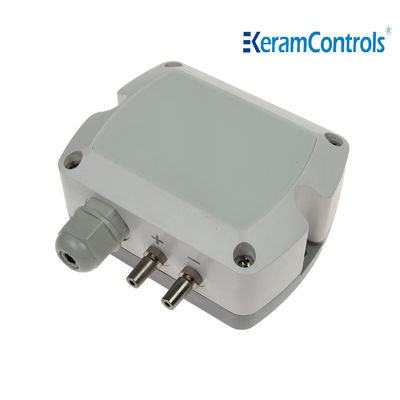

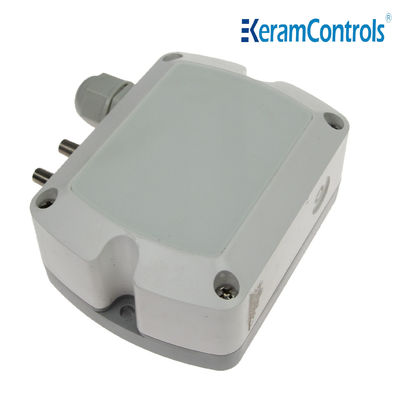

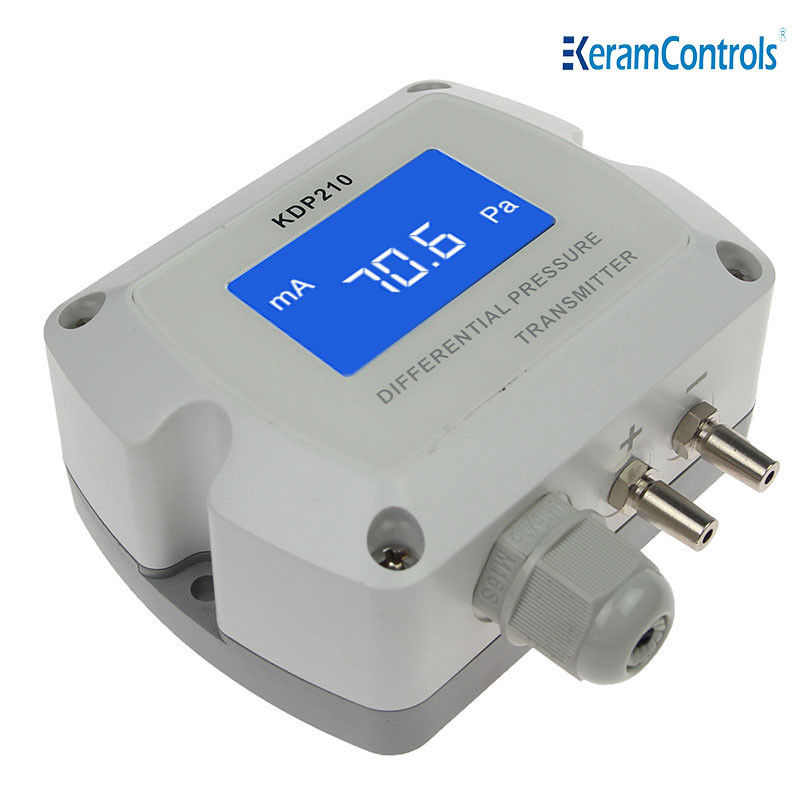

0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC

0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC
0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC
0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC

Large Image :  0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC

Description
Accuracy: <±1% FS@-5 To +65℃ Operating Temperature: -20…+70℃
Output Signal: 4-20mA(3wire)
High Light:

ABS PC Plastic Differential Pressure Sensor

,

500pa HVAC Differential Pressure Sensor

,

3wire DPT Differential Pressure Transmitter



0-500pa high quality ABS&PC Plastic Differential Pressure Sensor for HVAC

Description



KDP210 series differential pressure transmitter is a transmitter with adjustable range and unit. Customers can adjust according to their own needs, which can save customer costs. At the same time, there are various ranges to choose from, such as: -500~500pa, 0~500pa etc.At the same time, the novel design concept makes the product installation and use more convenient.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 0

0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 1


Measuring range adjustment



0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 2


Output setting(3 wire Model)



0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 3

0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 4


Manual Zero-point correction



0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



0-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 60-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 70-500pa ABS PC Plastic Differential Pressure Sensor For HVAC 8



FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
