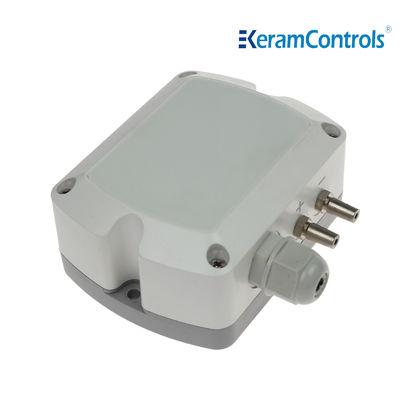

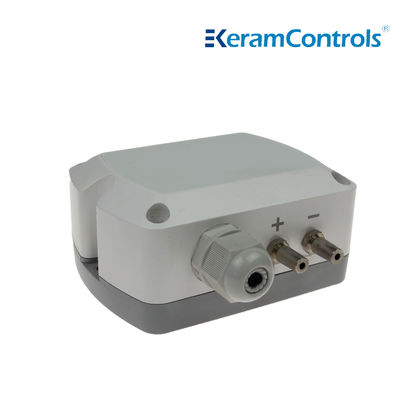

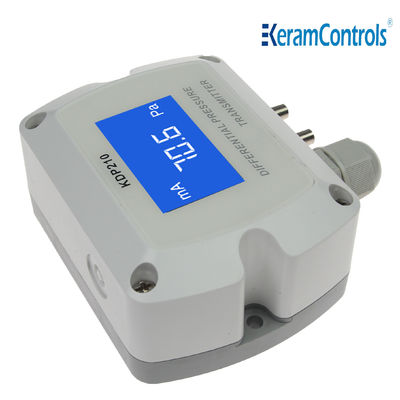

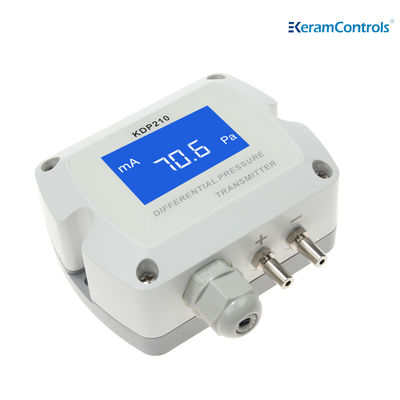

0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure

0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure
0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure
0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure

Large Image :  0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure

Description
Measurement Units: Pa,mmH2O,mmHG,mbar Repeat Stability: ±0.01 % At FS /Year
Cable Gland: M16*1.5
High Light:

2000pa Filter Differential Pressure Sensor

,

M16x1.5 Gas Differential Pressure Sensor

,

ABS DPT Differential Pressure Transmitter



0-±2000pa filter differential pressure sensor for monitoring gas differential pressure

Description



KDP210 series differential pressure transmitter is a non-removable installation method, which can effectively protect the internal screen and electronic components. If you need to adjust the unit and range, you can directly take off the cover to adjust without secondary disassembly and installation, which is convenient for customers Use, save customer time and cost.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 0

0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 1


Measuring range adjustment



0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 2


Output setting(3 wire Model)



0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 3

0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 4


Manual Zero-point correction



0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



0-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 60-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 70-±2000pa Filter Differential Pressure Sensor For Monitoring Gas Differential Pressure 8

FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
