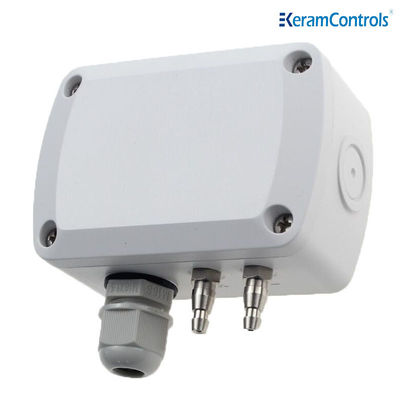

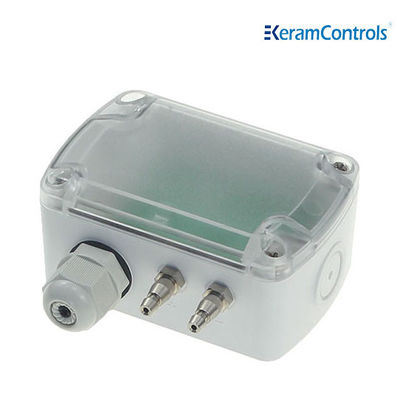

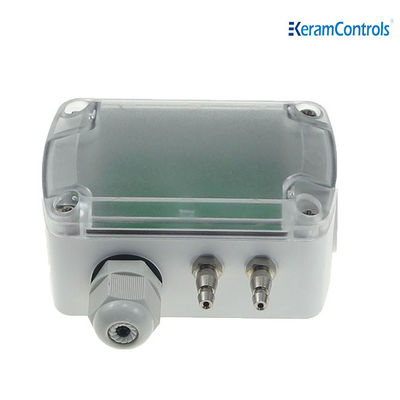

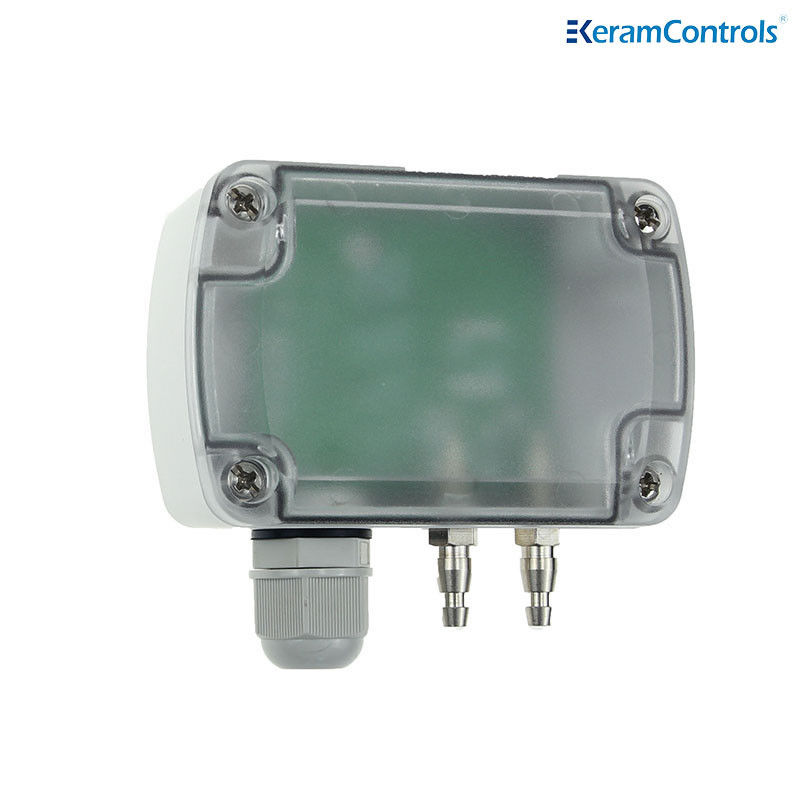

0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings

0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings
0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings
0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings

Large Image :  0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings

Description
Repeat Stability: ±0.01 % At FS /Year Operating Temperature: -20…+70℃
Auto Zero: Manual Calibration
High Light:

1000pa Micro Differential Pressure Sensor

,

CE Buildings Micro Differential Pressure Sensor

,

Micro DPT Differential Pressure Transmitter

0-±1000pa micro differential pressure sensor for commercial buildings



Description

KDP110 series differential pressure transmitter is a differential pressure transmitter without display. It can meet the needs of customers for adjusting the range. At the same time, the shell material is made of ABS and PC composite, so that the device can be used in harsh environments. , such as: high temperature and humidity outdoors, dust and rain weather, etc.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 00-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 1


Measuring range adjustment



0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 2


Output setting(3 wire Model)



0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 3

0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 4


Manual Zero-point correction



0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



0-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 60-±1000pa Micro Differential Pressure Sensor For Commercial Buildings 7



FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
