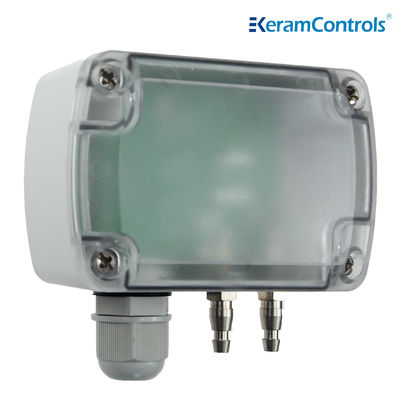

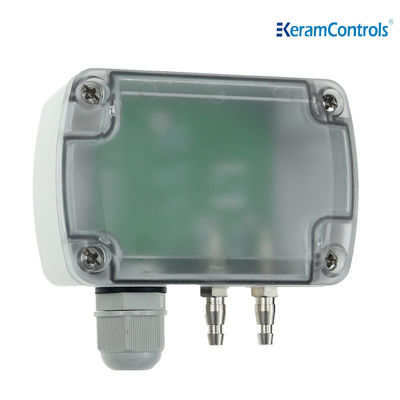

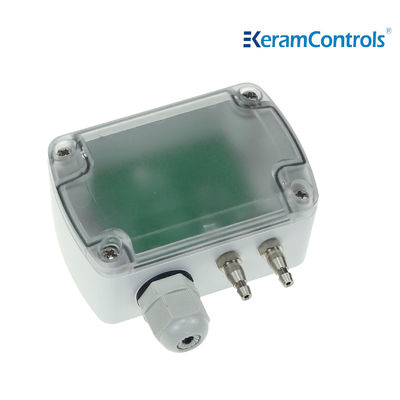

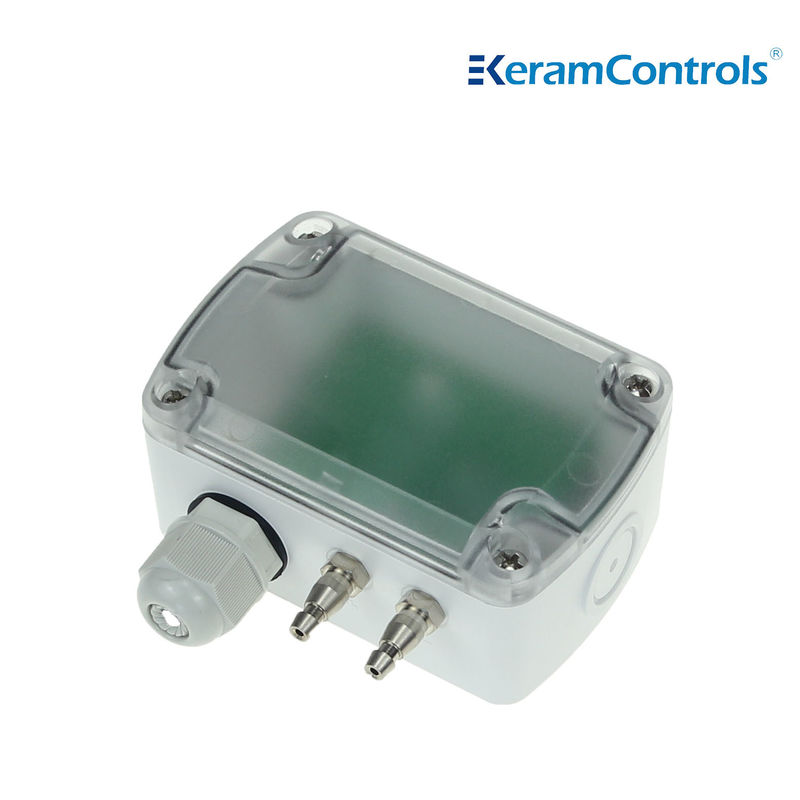

0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure

0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure
0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure
0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure

Large Image :  0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure

Description
Operating Temperature: -20…+70℃ Repeat Stability: ±0.01 % At FS /Year
Output Signal: 0~10V
High Light:

10V Differential Pressure Sensor

,

2000pa Gas Pressure Differential Pressure Sensor

,

NEMA4 DPT Differential Pressure Transmitter

0-±2000pa and 0-10V differential pressure sensor for gas pressure



Description



The KDP110 series differential pressure transmitter is an easy-to-install transmitter with an IP65 housing protection level, which can reduce the time cost and cost of use for customers. The IP65 protection level housing can effectively protect the device PCB board, while ensuring the equipment continuity of accuracy.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 00-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 1


Measuring range adjustment



0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 2


Output setting(3 wire Model)



0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 3

0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 4


Manual Zero-point correction



0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 6

0-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 70-±2000pa And 0-10V Differential Pressure Sensor For Gas Pressure 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
