PT1000 White Temperature Sensor For Building System
| Temperature Sensitive Element: | PT1000 Class A Accuracy ±(0.15+0.002t) | Element Connection: | 2-wire |
|---|---|---|---|
| Protection Class: | IP65/NEMA 4 | ||
| Highlight |
PT1000 White Temperature Sensor,Building System PT1000 Temperature Sensor,2wire Temperature Sensor Transmitters |
||

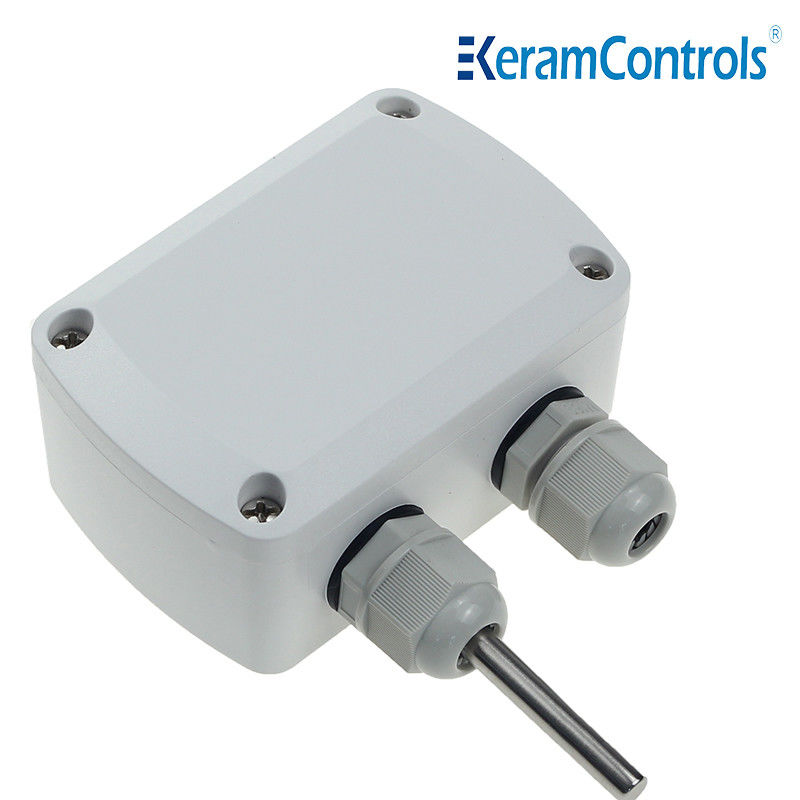

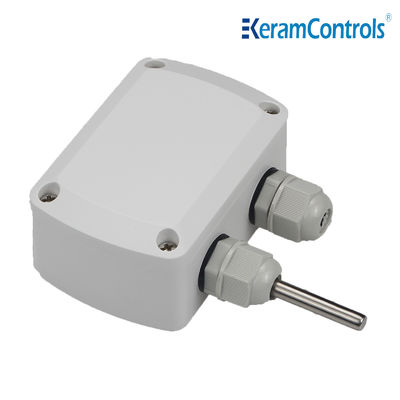

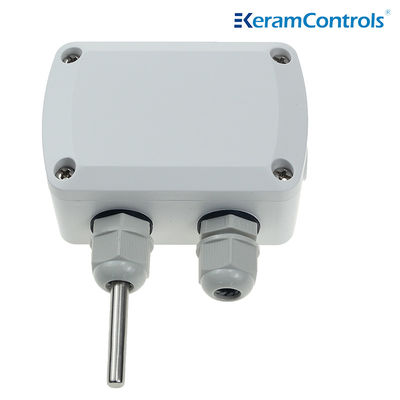

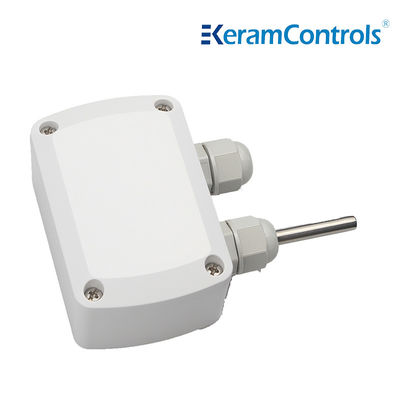

PT1000 White Temperature Sensor For building system
Description
KTS100 temperature sensor is a cost-effective temperature sensor. It is suitable for temperature measurement of commercial building automation. Its measurement medium can be gas or liquid, and can be used in an environment of -40...70℃, making the device suitable for for more application scenarios.
Features
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS100 temperature transmitter used for temperature measurement in heating,
ventilation and air conditioning systems enabling weather-dependent
temperature regulation.
Technical Data
| Model | KTS100 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+70°C |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS100-Range-Element
| Model | Range | Element |
| KTS100 | PT100 Class A | (1) |
| PT1000 Class A | (2) | |
| NTC 10k B395 | (3) | |
| NTC 10k B3435 | (4) | |
| NTC 1k | (5) | |
| NTC 2k | (6) |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
