IP65 Water Temperature Sensor For HVAC

IP65 Water Temperature Sensor For HVAC
IP65 Water Temperature Sensor For HVAC
IP65 Water Temperature Sensor For HVAC IP65 Water Temperature Sensor For HVAC IP65 Water Temperature Sensor For HVAC IP65 Water Temperature Sensor For HVAC IP65 Water Temperature Sensor For HVAC

Large Image :  IP65 Water Temperature Sensor For HVAC

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

IP65 Water Temperature Sensor For HVAC

Description
Temperature Sensitive Element: NTC 10k B3435 Accuracy B:3435K±1% Housing Material: PC&ABS,UL94V-0
Cable Gland: M16*1.5
High Light:

IP65 Water Temperature Sensor

,

HVAC IP65 Water Temperature Sensor

,

M16x1.5 Sensor Transmitters

IP65 manufacturer price water temperature sensor for HVAC



Description

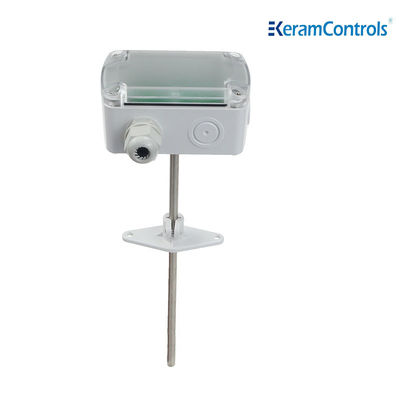

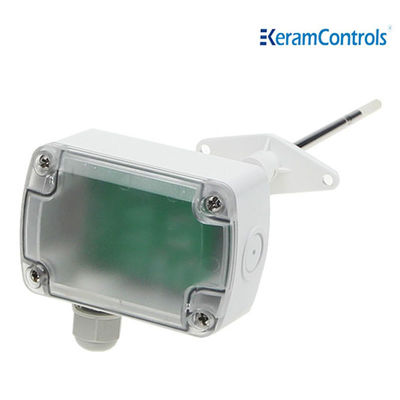

The KTS110 duct temperature sensor is a sensor suitable for the field of HVAC. It is cost-effective and can meet most of the application environments of customers. It can meet customers' requirements for temperature, environment, and accuracy.


Features



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS110 temperature transmitter used for temperature measurement in heating,ventilation and air conditioning systems enabling weather-dependenttemperature regulation.


Technical Data



Model KTS110
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5



Notes On Disposal



IP65 Water Temperature Sensor For HVAC 0

Product Certification



IP65 Water Temperature Sensor For HVAC 1


Dimensions(mm)



IP65 Water Temperature Sensor For HVAC 2


Ordering Guide



KTS110-Element-Probe length



Model Element Probe Length
KTS110 PT100 Class A (1) 65mm (A)
PT1000 Class A (2) 120mm (B)
NTC 10k B395 (3) 150mm (C)
NTC 10k B3435 (4) 300mm (D)
NTC 1k (5)
NTC 2k (6)



IP65 Water Temperature Sensor For HVAC 3

IP65 Water Temperature Sensor For HVAC 4IP65 Water Temperature Sensor For HVAC 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
