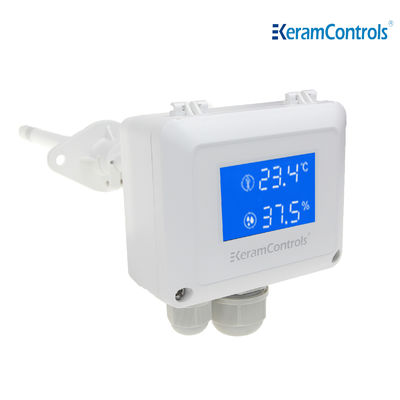

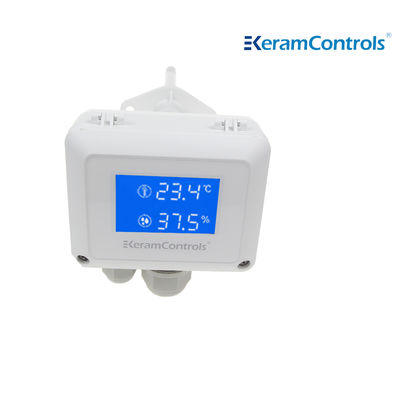

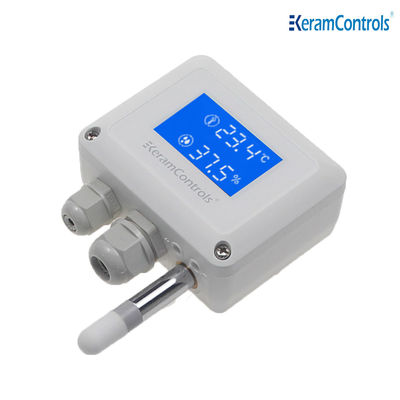

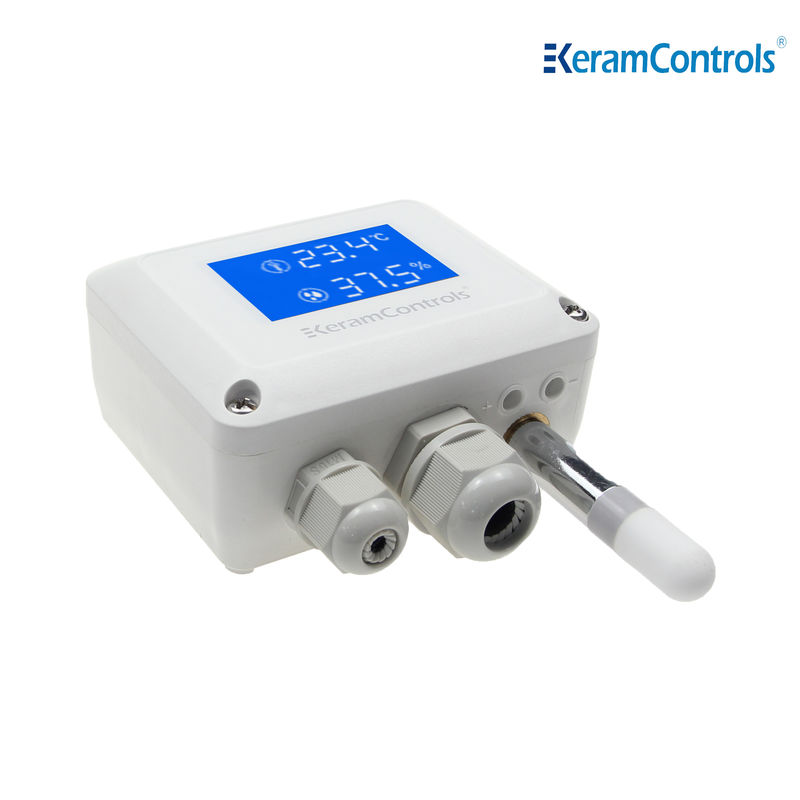

Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA

Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA
Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA
Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA

Large Image :  Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA

Description
Temperature Measurement Range: -35...+80℃ Temperature Accuracy: ±0.3℃(20-60℃)
Humidity Measurement Range: 0...100%RH Humidity Accuracy: ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Protection Class: IP65/NEMA 4
High Light:

Duct Temperature Humidity Transmitter

,

Main Control Temperature Humidity Transmitter 4-20mA

,

Duct Temperature Humidity Sensors Transmitter



Temperature and Humidity Transmitter Duct Type with high-Precision sensors and Main Control 4~20mA



Description



A variety of installation methods and output methods are optional.The shell design is light and beautiful, with LCD backlight temperature and humidity dual display.The power supply and output have over-voltage and reverse connection protection, with a high protection grade IP65.Adopt high-precision sensors and main control, with good long-term stability and anti-interference ability. Temperature and humidity transmitter is popular in many industries. It is widely used in various fields that need to measure and control the temperature and humidity, such as workshop , station, building, meteorology, scientific research, chemical industry, hotel, medical treatment, environmental protection, food and other materials storage, HVAC, etc.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 0Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 1


Measuring range adjustment



Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 2


Output setting(3 wire Model)



Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 4

Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 5

Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 6

Duct Temperature Humidity Transmitter With High Precision Sensors Main Control 4~20mA 7

FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
