Humidity And Temperature Sensor For Cleanrooms Hospitals Critical Environments
| Temperature Measurement Range: | -35...+80℃ | Temperature Accuracy: | ±0.3℃(20-60℃) |
|---|---|---|---|
| Humidity Measurement Range: | 0...100%RH | Humidity Accuracy: | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Housing Material: | PC&ABS,UL94V-0 | Cable Gland: | M16*1.5/M20*1.5 |
| Highlight |
Cleanrooms Humidity And Temperature Sensor,Hospitals Humidity And Temperature Sensor,M16x1.5 Temperature Humidity Transmitter |
||

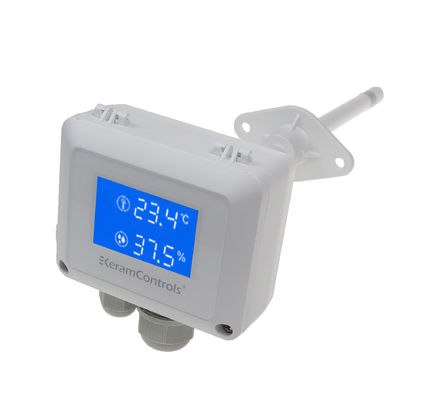

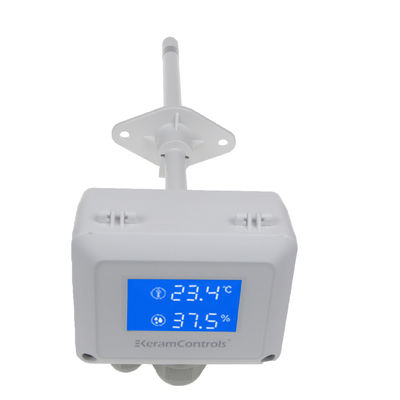

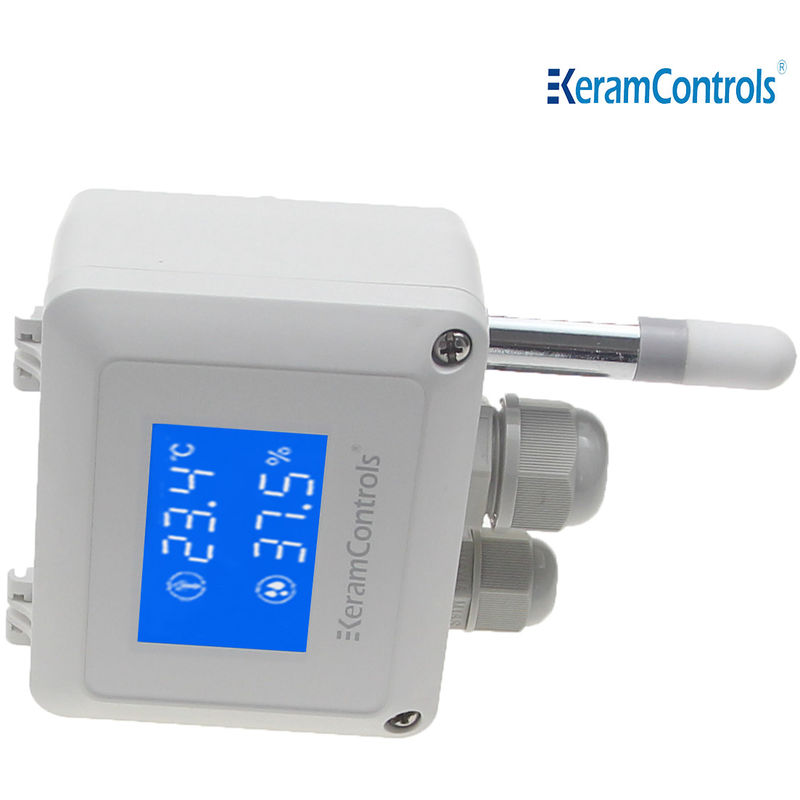

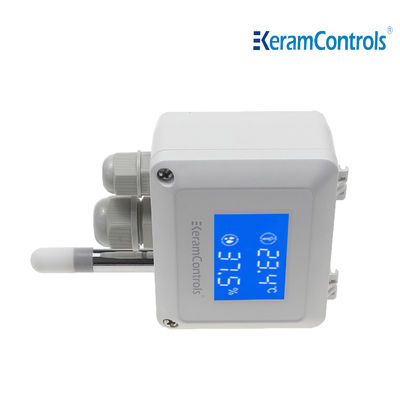

Humidity And Temperature Sensor for Cleanrooms Hospitals Other Critical Environments
Description
Our transmitter is professionally used for pipeline temperature and humidity measurement. It adopts standard industrial interface 4~20mA/0~10V/0~5V analog signal output.The imported temperature and humidity measuring unit has small drift and high precision. The pipeline installation method is convenient for on-site installation. It adopts anti-interference circuit design and can withstand various strong electromagnetic inter preferences such as on-site inverse. The equipment adopts waterproof casing design. It can prevents the ingress of dust particles and water droplets, and can be applied to wet and high dust occasions for durability.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
