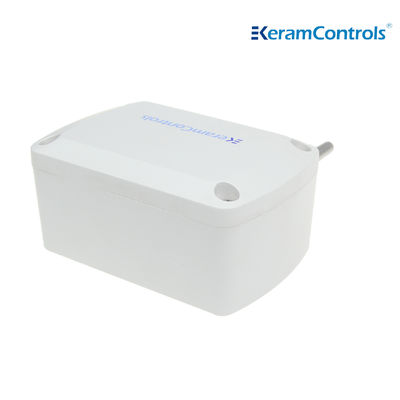

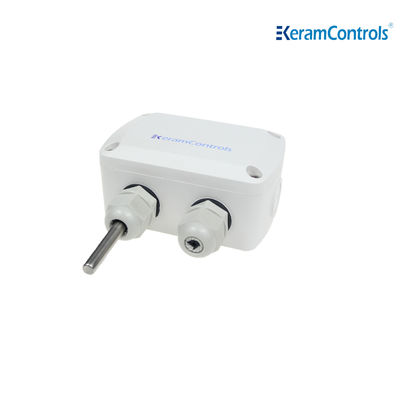

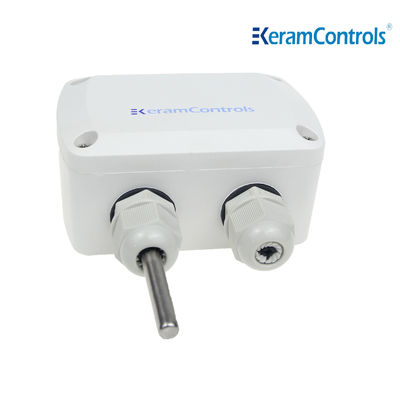

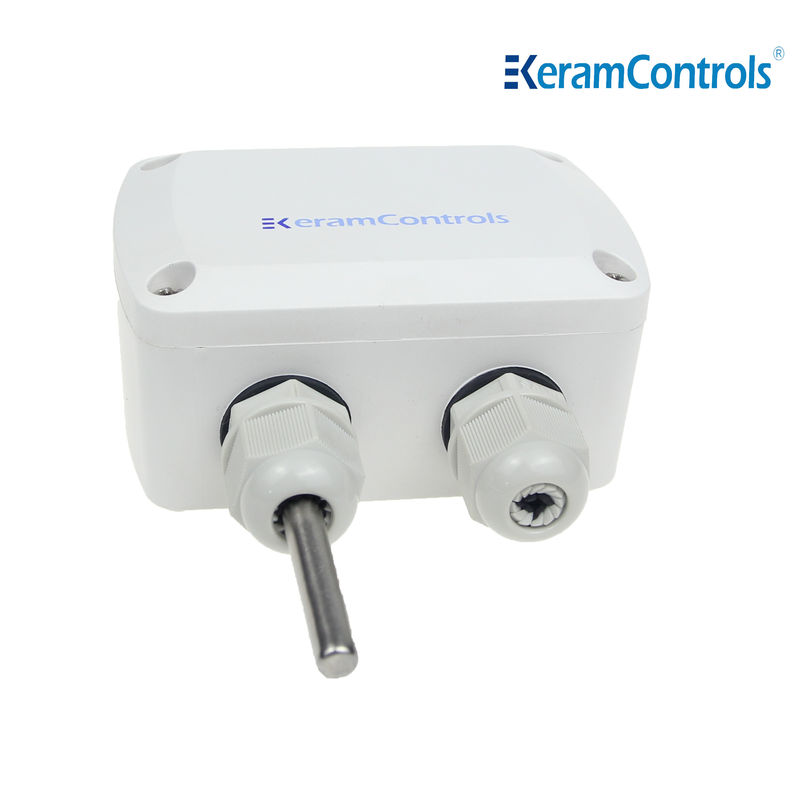

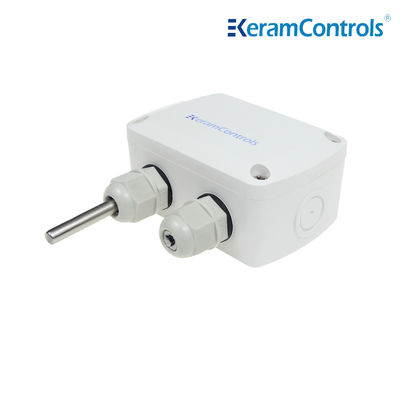

NEMA 4 Protection Class Temperature Sensor In Heating System
| Temperature Sensitive Element: | PT1000 Class A Accuracy ±(0.15+0.002t) | Media: | Air Or Liquid |
|---|---|---|---|
| Protection Class: | IP65/NEMA 4 | ||
| Highlight |
NEMA4 Temperature Sensor,Heating System NEMA4 Temperature Sensor,CE Temperature Sensor Transmitters |
||
High quality Temperature Sensor
Description
KTS100 temperature sensor is a cost-effective sensor, which not only reduces the cost of customers, but also effectively guarantees the accuracy and performance of the product. At the same time, the exquisite design makes it suitable for relatively small space, occupying a small space, which is convenient for customers to install and use.
Feature
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.
Technical Data
| Model | KTS120 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -30...+ 70℃ (body) / -30...+ 200℃(probe) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Additional Instructions
Temperature compensation
| Probe length | Cable resistance | Temperature compensation |
| 0.5m | 0.086Ω | 0.22℃ |
| 2m | 0.344Ω | 0.88℃ |
| 3m | 0.516Ω | 1.32℃ |
*When the temperature resistance of high resistance value (R>1000Ω), the temperature compensation can be ignored
Dimensions(mm)
Ordering Guide
KTS120- Element-Probe length
| Model | Element | Probe length | ||
| KTS120 | PT100 Class A | (1) | 0.5m | (A) |
| PT1000 Class A | (2) | 2m | (B) | |
| NTC 10k B395 | (3) | 3m | (C) | |
| NTC 10k B3435 | (4) | |||
| NTC 1k | (5) | |||
| NTC 2k | (6) | |||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
