Product Details:
|
| Output: | 4-20mA/0-5V/0-10V/RS-485 | Temperature Measurement Range: | -35...+80℃ |
|---|---|---|---|
| Humidity Measurement Range: | 0...100%RH | ||
| High Light: | 3Wire Humidity And Temperature Sensor,5V Humidity Temperature Sensor,Greenhouse Temperature Humidity Transmitter |
||

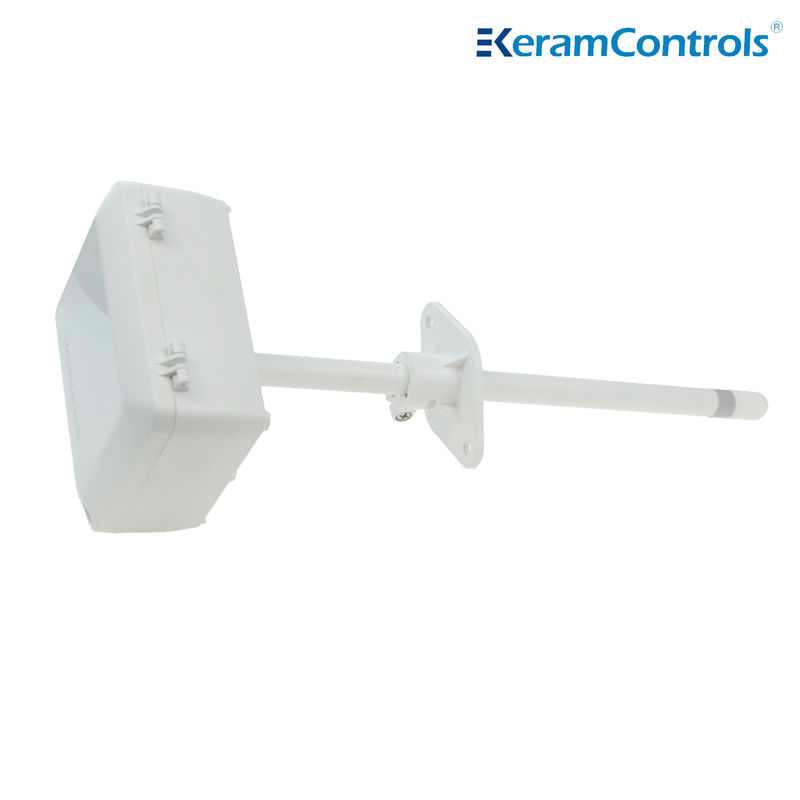

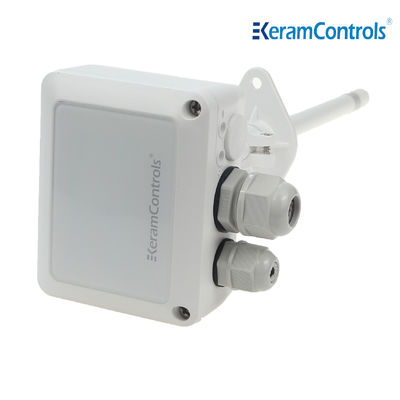

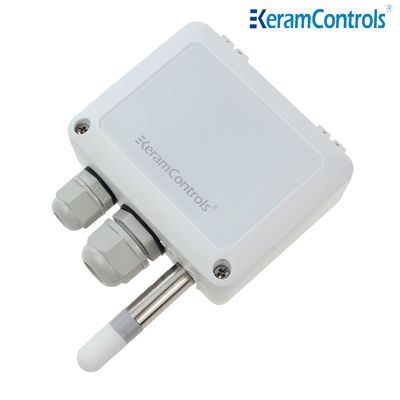

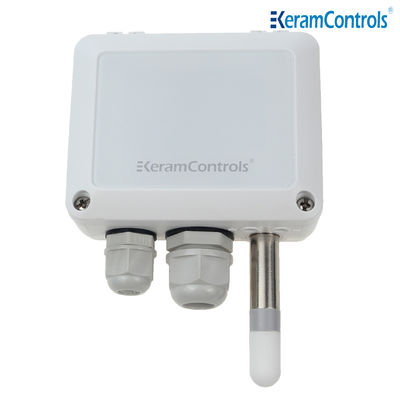

KTH510 series temperature transmitter is a temperature and humidity transmitter specially designed for customers who do not need display. It has wall installation and pipe installation options. Customers can purchase according to their own requirements. At the same time, We also support OEM, customers can come according to their needs.
More convenient wiring and setting
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment
| Model | KTH510 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
KTH510——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH510 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
