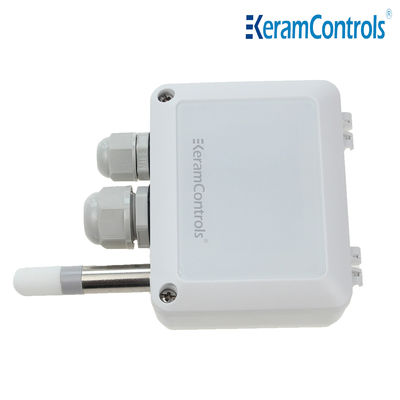

RS485 Humidity And Temperature Sensor Transmitter
| Output: | 4-20mA/0-5V/0-10V/RS-485 | Temperature Measurement Range: | -35...+80℃ |
|---|---|---|---|
| Humidity Measurement Range: | 0...100%RH | ||
| Highlight |
Humidity And Temperature Sensor Transmitter,RS485 Temperature Sensor Transmitter |
||
RS485 humidity and temperature sensor transmitter
Description
The KTH510 series temperature transmitter can adjust the output and range of the transmitter through the DIP switch. This design can effectively reduce the customer's cost of use and can meet the different requirements of customers. At the same time, its shell adopts the composite of ABS and PC. The material can effectively adapt to the harsh working environment, allowing customers to apply to more application environments.
Feature
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH510 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH510——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH510 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
