Product Details:
|
Type Of Operation: | On/Off,single-stage,micro Switch | Output: | SPDT 15(8A) 24/250VAC |
---|---|---|---|
Sensing Element: | Paddle | Flow Rate Setting Adjustment: | Internal Screw |
Paddle Material: | Stainless Steel | ||
Highlight: | Valve Water Pump Flow Control Switch,SPDT Water Pump Flow Control Switch,Hvac Water Flow Switch 250VAC |

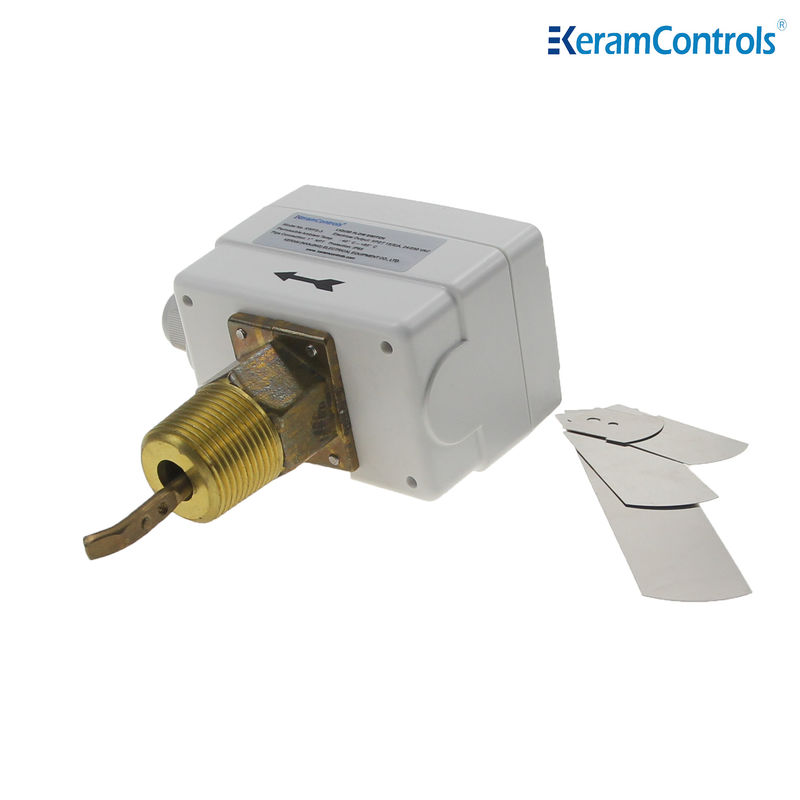

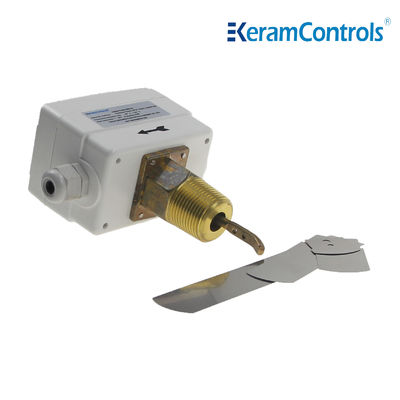

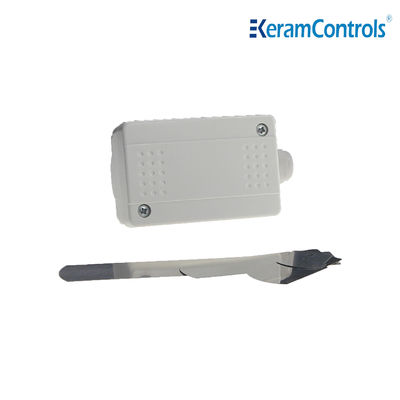

KWFS liquid flow switch is a switch that can accurately control the liquid flow of the pipeline, which feedback the change of liquid flow through the change of the paddle, can effectively feedback the size of the liquid flow, and its paddle is made of stainless steel, which can effectively protect against the erosion of liquid.
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.
Features
● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
●Brass material
● Max. liquid temp 120℃
● Max working pressure 20Ba
Type of operation | On/Off,single-stage,micro switch |
Output | SPDT 15(8A) 24/250VAC |
Flow rates | See flow rate table |
Flow rate setting adjustment | Internal screw |
Sensing element | Paddle |
Liquid applications | Hot, chilled, well, pool and sea water,Brine or ethylene glycol |
Parts material in contact with fluid | Brass |
Paddle material | Stainless steel |
Liquid temperature | -20℃~120℃ |
Permissible ambient temperature | -40℃~85℃ |
Permissible ambient humidity | 10…90% RH, non-condensing |
Cable entry | M18 Fitting |
Housing | Fire Resistance ABS or PC |
Protection | IP65 |
Color | White |
Weight | 1.0Kg |
Types of Model
Model | Connection |
KWFS-1 | 1/2" -14 NPT |
KWFS-2 | 3/4" -14 NPT |
KWFS-3 | 1" -11½ NPT |
Line Pipe Size(in.) | 1 | 1-¼ | 1-½ | 2 | 2-¼ | 3 | 4 | 4Z | 5 | 5Z | 6 | 6Z | 8 | 8Z | |
Min.flow | Flow Increase ①&②Connected |
4.2 (1.0) |
5.8 (1.3) |
7.5 (1.7) |
13.7 (3.1) |
17.6 (4.0) |
27.5 (6.2) |
64..7 (14.7) |
35.2 (8.0) |
125 (28.4) |
57.01 (12.9) |
190.0 (43.1) |
74.0 (16.8) |
374.7 (85.1) |
204.7 (46.5) |
Flow Decrease ①&③Connected |
2.5 (0.6) |
3.7 (0.8) |
5.0 (1.1) |
9.7 (2.2) |
11.9 (2.7) |
19 (4.3) |
50.1 (11.4) |
26.9 (6.1) |
101.1 (22.9) |
41.0 (9.3) |
158.0 (35.9) |
54.0 (12.3) |
319.7 (72.6) |
170.0 (3806) |
|
Max.flow | Flow Increase ①&②Connected |
9.2 (2.1) |
13.3 (3.0) |
17.6 (4.0) |
26.9 (6.1) |
30.8 (7.0) |
50.2 (11.4) |
127.6 (29.0) |
81.0 (18.4) |
245.0 (55.6) |
118.0 (26.8) |
374.7 (85.1) |
144.0 (32.7) |
759.5 (172.5) |
415.0 (94.2) |
Flow Decrease ①&③Connected |
8.1 (2.0) |
12.5 (2.8) |
16.3 (3.7) |
25.1 (5.7) |
28.6 (6.5) |
47.1 (10.7) |
122.0 (27.7) |
76.2 (17.3) |
234.7 (53.3) |
111.0 (25.2) |
359.7 (81.7) |
134.7 (30.6) |
729.6 (165.7) |
400.6 (90.8) |
Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)
The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.
Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.
Install Paddle | |
Pipe | NO. |
1" | 1 |
11/4" | 1 |
11/2" | 1 |
2" | 1,2 |
21/2" | 1,2 |
3" | 1,2,3 |
4" | 1,2,3 |
4"Z | 1,2,3,4 |
5" | 1,2,3 |
5"Z | 1,2,3,4 |
6" | 1,2,3 |
6"Z | 1,2,3,4 |
8" | 1,2,3 |
8"Z | 1,2,3,4 |
