Product Details:
|
Type Of Operation: | On/Off,single-stage,micro Switch | Flow Applications: | Air And Non Aggressive Gases |
---|---|---|---|
Permissible Ambient Humidity: | 10...90%RH,non-condensing | Protection: | IP65 |
Material: | Base:steel,galvanized; Cover:ABS,fire Retardant Or PC | ||
Highlight: | Dwyer Air Flow Switch,Replaceable Dwyer Airflow Switch,Fire Retardant Airflow Switch |

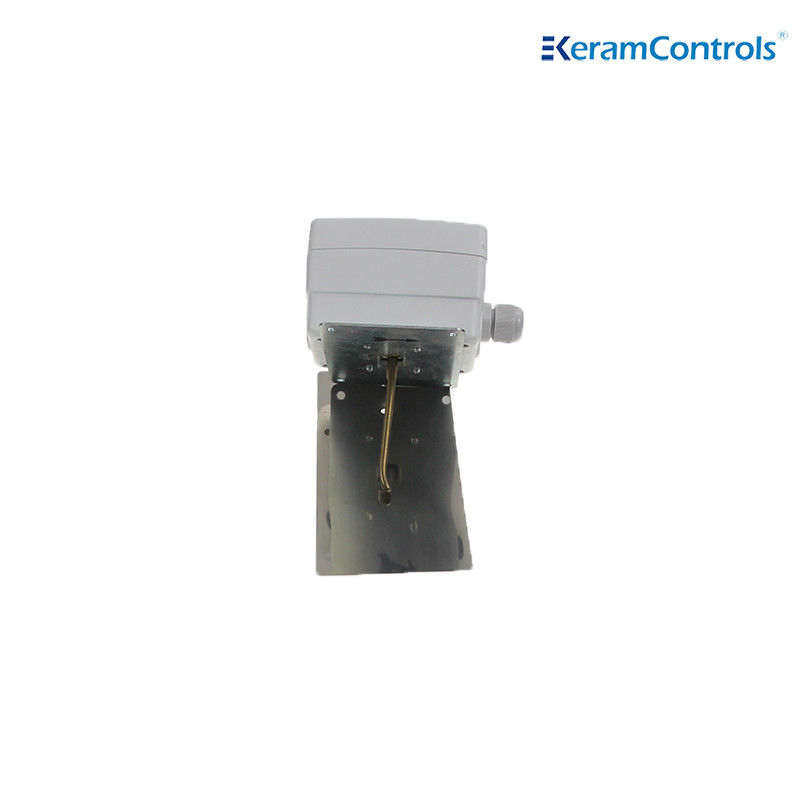

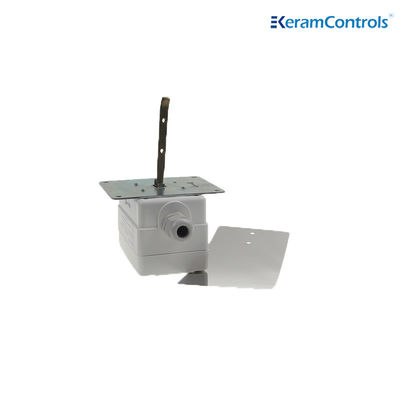

The duct air flow switch provides feedback of air flow in HVAC duct work. It can be directly connected to the control system as a feedback point or interlocked to prevent operation of heating and cooling equipment when there is no air flow. The stainless steel paddle resists corrosion. An adjustable spring tension screw allows setting the air flow trip point from 200 to 1800 FPM (1 to 9.2 m/sec). The paddle can be trimmed down for higher flow applications. The cable enters through the water tight gland, or the gland can be removed and replaced with an EMT or flex connector for wiring with EMT or metal flex.
Control and monitor air and non aggressive gases flow in ducts, chambers, etc.,of heating, cooling, and air conditioning equipment.
● Renovated SPDT micro switch ensures the reliable switch function
● Stainless steel paddle
● Cut-in and cut-out
● Brass level
● IP65
Model | KAFS |
Type of operation | On/Off,single-stage,micro switch |
Flow rate switching | |
- Cut-out | Min. 1.0 m/sec, Max. 8.0 m/sec |
- Cut-in | Min. 2.5 m/sec, Max. 9.2 m/sec |
Flow rate setting adjustment | Internal screw |
Sensing element | Paddle |
Paddle size | 3.2 x 6.9 in. (80 x 175 mm) |
Paddle w/level - Length | 7.9 in. (200 mm) |
Flow applications | Air and non aggressive gases |
Paddle material | Stainless steel |
Paddle level material | Brass |
Permissible ambient temperature | |
- Housing | -40℉ to 185℉(-40℃ to 85℃) |
- Paddle | 14℉ to 185℉(-10℃ to 85℃) |
Permissible ambient humidity | 10...90%RH,non-condensing |
Cable entry | M18 fitting |
Housing - Material | Base:Steel,galvanized; Cover:ABS,fire retardant or PC |
- Color | white |
- Protection | IP65 |
Installation | Duct mounted |
Ship weight | 0.7kg |
The flow switch should be mounted into a duct or chamber where the air paddle can freely point horizontally downwards. To avoid air swirl and paddle instability, straight zones should be provided for a length of 5 times the diameter of duct upstream and downstream from the installation location.
The units are factory calibrated to the minimum switch-off value. To increase the set value, adjust the range screw clockwise. Due to the risk of fracture at air speeds of higher than 5.0 m/sec, the paddle must be cut off on the marked side. When the paddle is cut off, the minimum cut-out value increases from 1.0 m/sec to 2.5 m/sec.
