Product Details:
|
| Type Of Operation: | On/Off,single-stage,micro Switch | Flow Applications: | Air And Non Aggressive Gases |
|---|---|---|---|
| Permissible Ambient Humidity: | 10...90%RH，non-condensing | Protection: | IP65 |
| Material: | Base:steel,galvanized; Cover:ABS,fire Retardant Or PC | ||
| High Light: | Adjustable Duct Flow Switch,Adjustable Duct Airflow Switch,IP65 Adjustable Air Flow Switch |
||

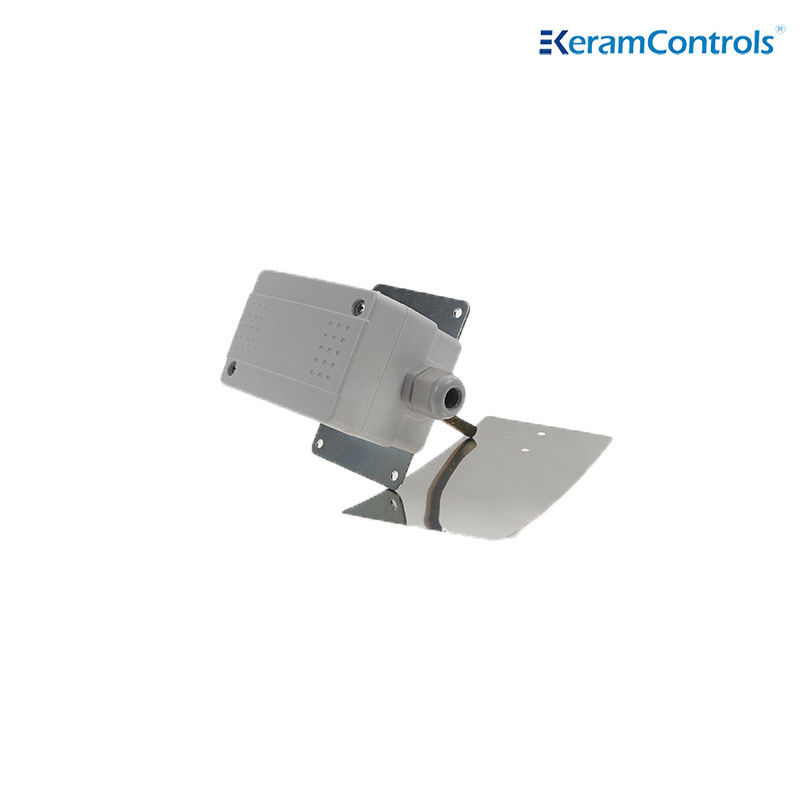

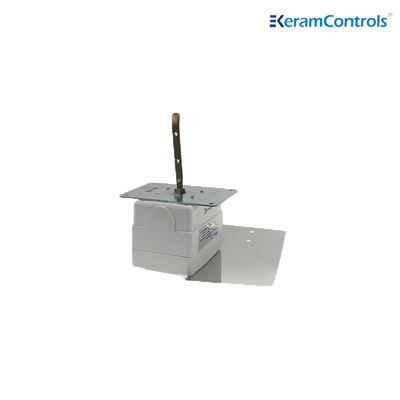

KAFS Air Flow Switch is an field adjustable, paddle vane switch, capable of detecting a wide range of velocities. KAFS Air Flow Paddle Switch is suitable for use in ducts 8″ or over using full, stainless steel vane provided. This vane is trimmable for smaller ducts.
Control and monitor air and non aggressive gases flow in ducts, chambers, etc.,of heating, cooling, and air conditioning equipment.
● Renovated SPDT micro switch ensures the reliable switch function
● Stainless steel paddle
● Cut-in and cut-out
● Brass level
● IP65
| Model | KAFS |
| Type of operation | On/Off,single-stage,micro switch |
| Flow rate switching | |
| - Cut-out | Min. 1.0 m/sec, Max. 8.0 m/sec |
| - Cut-in | Min. 2.5 m/sec, Max. 9.2 m/sec |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Paddle size | 3.2 x 6.9 in. (80 x 175 mm) |
| Paddle w/level - Length | 7.9 in. (200 mm) |
| Flow applications | Air and non aggressive gases |
| Paddle material | Stainless steel |
| Paddle level material | Brass |
| Permissible ambient temperature | |
| - Housing | -40℉ to 185℉(-40℃ to 85℃) |
| - Paddle | 14℉ to 185℉(-10℃ to 85℃) |
| Permissible ambient humidity | 10...90%RH,non-condensing |
| Cable entry | M18 fitting |
| Housing - Material | Base:Steel,galvanized; Cover:ABS,fire retardant or PC |
| - Color | white |
| - Protection | IP65 |
| Installation | Duct mounted |
| Ship weight | 0.7kg |
The flow switch should be mounted into a duct or chamber where the air paddle can freely point horizontally downwards. To avoid air swirl and paddle instability, straight zones should be provided for a length of 5 times the diameter of duct upstream and downstream from the installation location.
The units are factory calibrated to the minimum switch-off value. To increase the set value, adjust the range screw clockwise. Due to the risk of fracture at air speeds of higher than 5.0 m/sec, the paddle must be cut off on the marked side. When the paddle is cut off, the minimum cut-out value increases from 1.0 m/sec to 2.5 m/sec.
