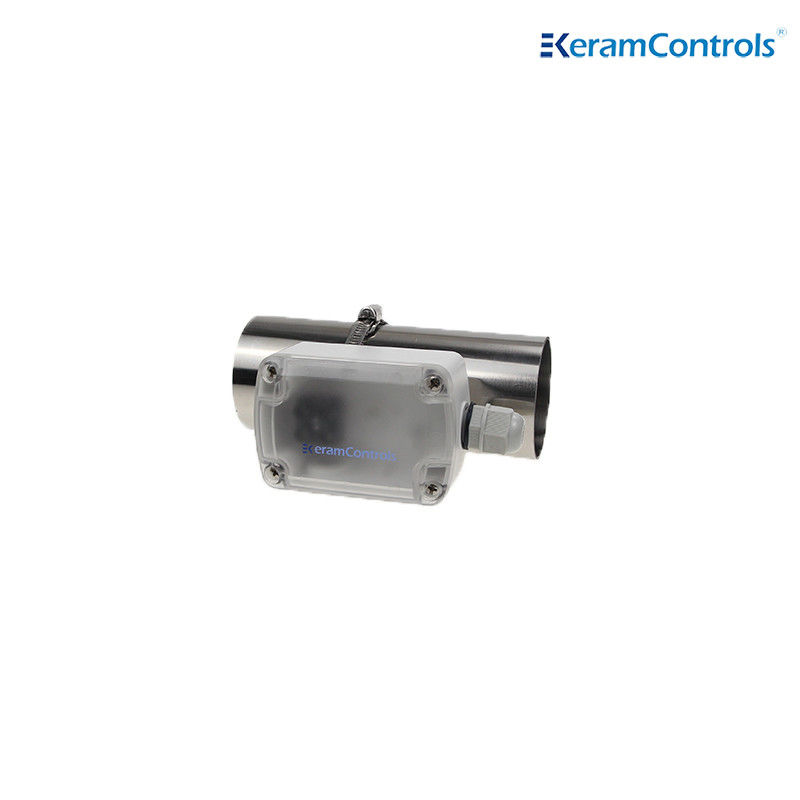

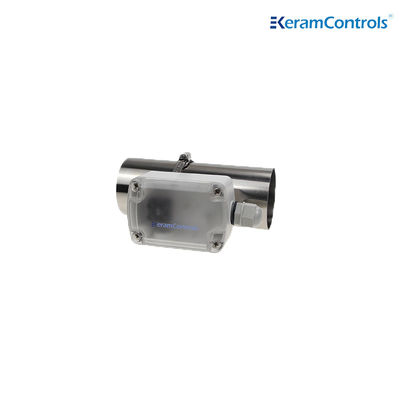

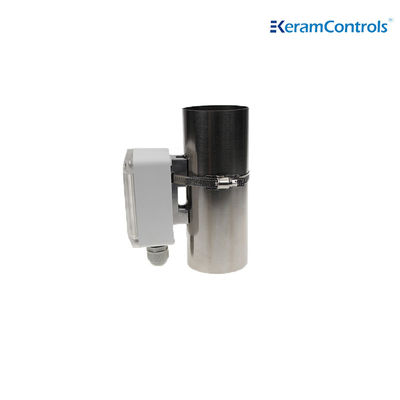

Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems

Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems
Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems
Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems

Large Image :  Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS130
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems

Description
Temperature Sensitive Element: NTC 1k Accuracy B:3500K±1% Measuring Range: -40...+200°C
Operating Temperature: -30...+ 70℃ (body) / -30...+ 200℃(probe) Housing Material: PC&ABS,UL94V-0
Media: Air Or Liquid
High Light:

Pt100 Temperature Sensor Transmitters

,

NEMA4 Temperature Sensor Transmitters

,

Air Conditioning Temperature Transmitters Pt100

pt100 sensor temperature sensor​



Description

KTS130 temperature sensors are based on a standardized Pt 100 or Pt 1000 element, which gives a reliable and accurate measurement. All three sensor types can be delivered with NTC / PTC elements on request.


Feature



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.


Technical Data



Model KTS130
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -30...+ 70℃ (body) / -30...+ 200℃(probe)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5




Notes On Disposal

Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems 0

Product Certification

Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems 1


Dimensions(mm)



Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems 2


Ordering Guide



KTS130- Element-Hous Clamp



Model Element House Clamp
KTS130 PT100 Class A (1) S-250MM (V)
PT1000 Class A (2) S-400MM (W)
NTC 10k B395 (3) S-600MM (X)
NTC 10k B3435 (4) S-800MM (Y)
NTC 1k (5) S-10000MM (Z)
NTC 2k (6)





Pt100 Temperature Sensor Transmitters IP65 NEMA 4 In Air Conditioning Systems 3



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
