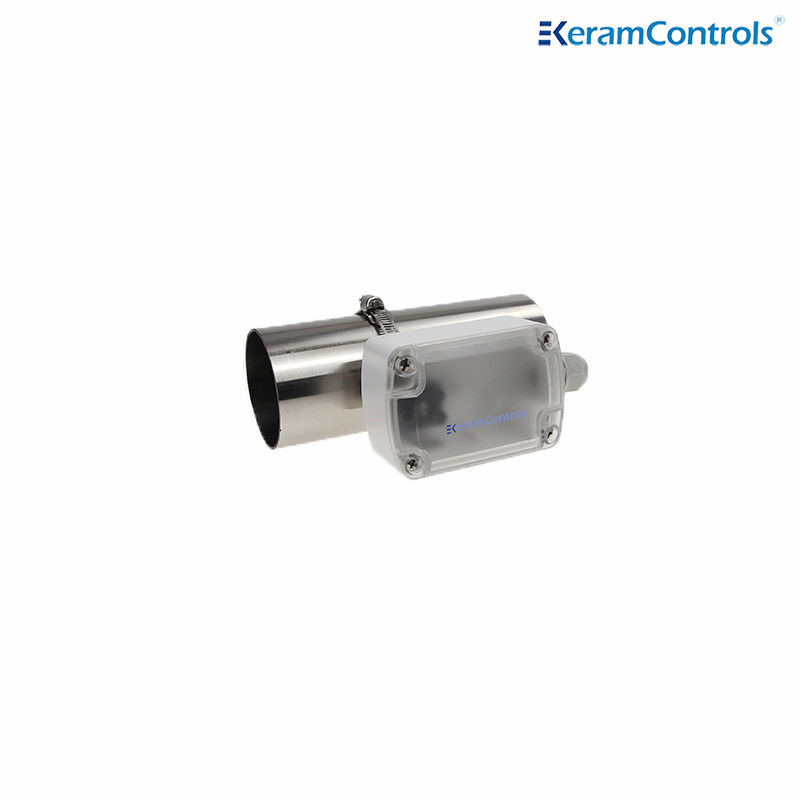

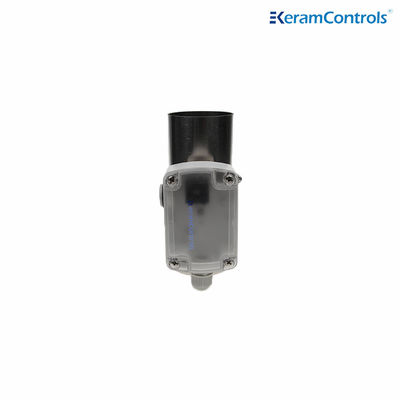

Pt1000 Temperature Sensor Transmitters For HVAC
| Temperature Sensitive Element: | PT1000 Class A Accuracy ±(0.15+0.002t) | Measuring Range: | -40...+200°C |
|---|---|---|---|
| Operating Temperature: | -30...+ 70℃ (body) / -30...+ 200℃(probe) | Housing Material: | PC&ABS,UL94V-0 |
| Media: | Air Or Liquid | ||
| Highlight |
Pt1000 Sensor Transmitters,Pt1000 Temperature Sensor Transmitters,HVAC Temperature Sensor Transmitters |
||
pt1000 sensor temperature sensor for HVAC
Description
KTS130 temperature sensor is a temperature sensor with a variety of temperature measuring elements to choose from, so that customers can choose according to their needs. Its temperature range can reach -40~200 ° C, and its protection level can reach IP65, which can be applied to different application environments. , can effectively prevent the intrusion of dust and rain.
Feature
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.
Technical Data
| Model | KTS130 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -30...+ 70℃ (body) / -30...+ 200℃(probe) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS130- Element-Hous Clamp
| Model | Element | House Clamp | ||
| KTS130 | PT100 Class A | (1) | S-250MM | (V) |
| PT1000 Class A | (2) | S-400MM | (W) | |
| NTC 10k B395 | (3) | S-600MM | (X) | |
| NTC 10k B3435 | (4) | S-800MM | (Y) | |
| NTC 1k | (5) | S-10000MM | (Z) | |
| NTC 2k | (6) | |||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
