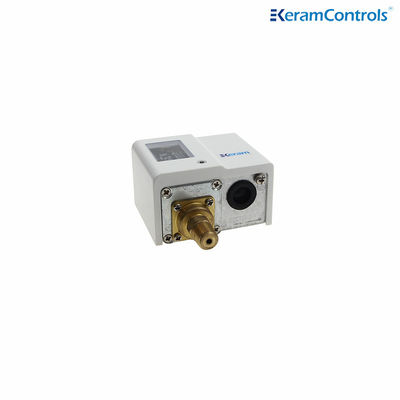

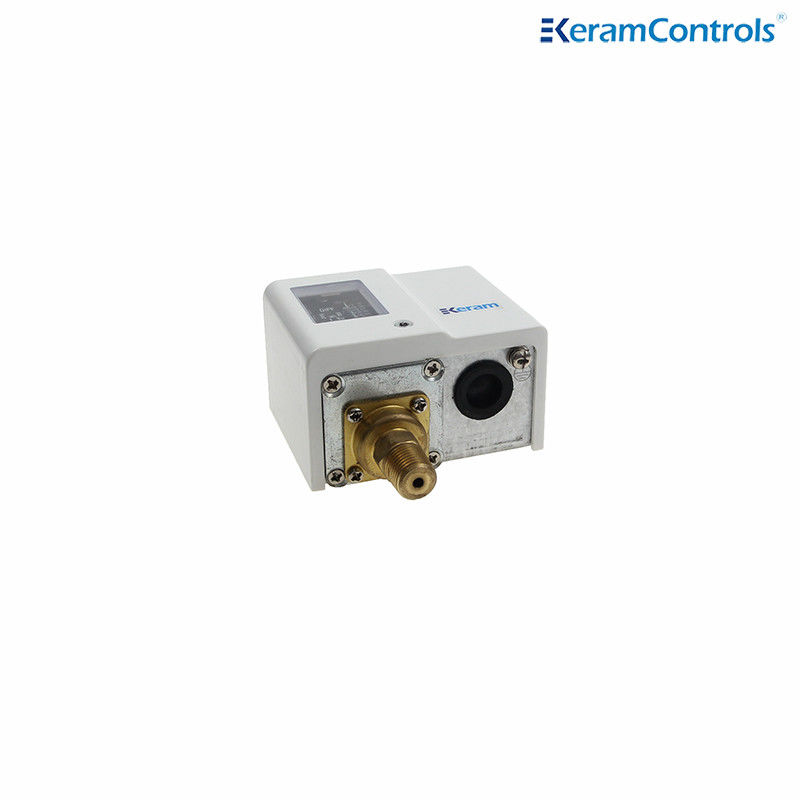

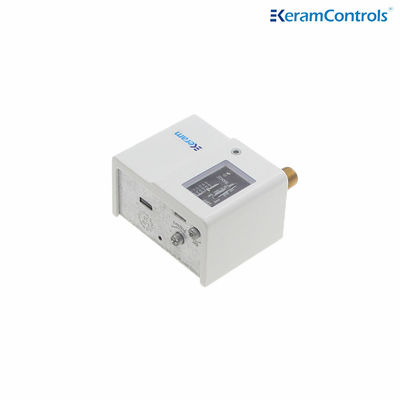

Product Details:
|
| Range: | 5-16bar | Operating Temperature:: | -20~120℃ |
|---|---|---|---|
| Maximum Pressure: | 33bar | Protection: | IP44 |
| High Light: | Adjustable SPDT Pressure Switch,Fluorinated Refrigerant Pressure Switch,125V AC Adjustable Pressure Switch |
||
A pressure switch is a device that operates an electrical contact when a preset fluid pressure is reached. The switch makes an electrical contact on either pressure rise or pressure fall from a certain preset pressure level. Pressure switches are in a wide range of industrial and residential applications like HVAC systems, well pumps, furnaces, etc. Read our pressure switch symbol article for diagram information.
| Model | Range(bar) | Differential(bar) | Factory setting(bar) | Max bellows pressure | |||
| Min | Max | Min | Max | OFF | ON | ||
| Q3 | -0.5 | 3 | 0.35 | 1.5 | 2 | 1 | 16.5 |
| Q6 | -0.5 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| Q6M | -0.5 | 6 | ≤1 | 3 | Manual reset | 16.5 | |
| Q10 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
| Q16 | 5 | 16 | 1 | 4 | 10 | 8 | 33 |
| Q20 | 5 | 20 | 2 | 5 | 16 | 3 | 33 |
| Q30D | 5 | 30 | 3 | 10 | 20 | 15 | 33 |
| Q30 | 6 | 30 | 3-5(fixed) | 20 | 15-17 | 33 | |
| Q30M | 6 | 30 | ≤4 | 20 | Manual reset | 33 | |
Note:
Calibration unit on scale plate with “bar” & “psig”, could be revised into “Mpa”& “kgf/cm2” if required by customers. Connections could have selections as British Flare (E), solder (C) and capillary (S).
|
125V AC |
250V AC |
24V DC |
||
| Non-Inductive Current | 20A | 10A | 10A | ||
| Inductive Current | Full Load Current | 15A | 8A | 8A | |
| Locked Roter | 72A | 64A | |||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
