Product Details:
|
| Operating Temperature:: | -20~120℃ | Material: | Stainless Steel |
|---|---|---|---|
| Ingress Protection: | IP54 | High Pressure: | 8-30bar |
| Lower Presure: | -0.5-6bar | ||
| High Light: | SS IP54 Adjustable Pressure Switch,IP54 Dual Adjustable Pressure Switch,30bar Dual Pressure Switch |
||

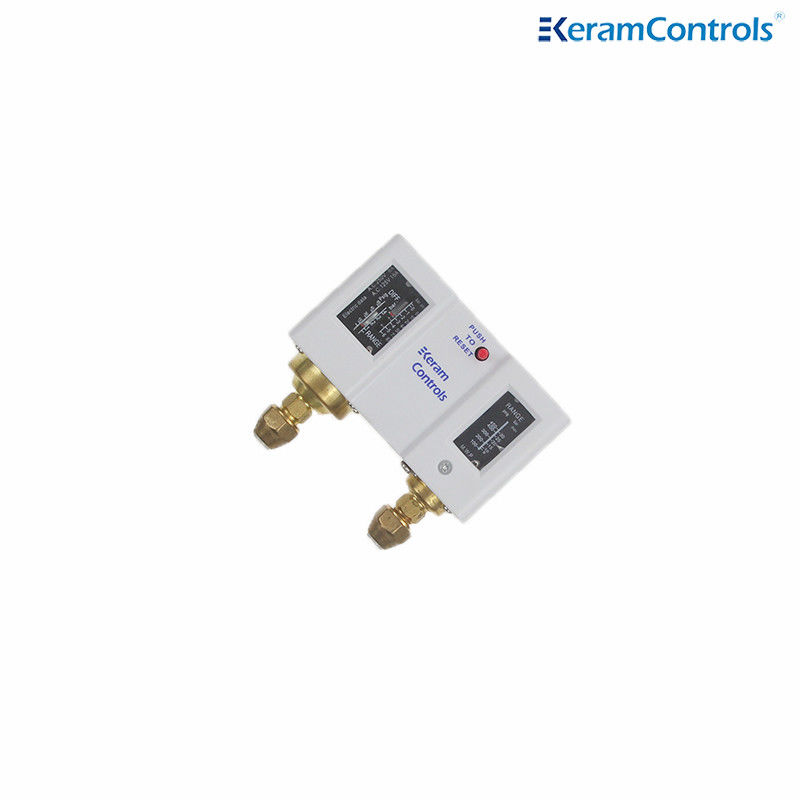

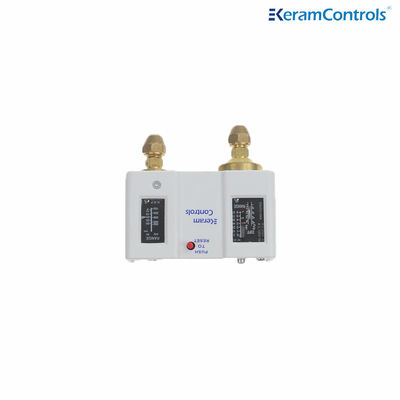

Q830 Dual Pressure Controls are designed for use on high and low pressure applications in refrigeration, air conditioning, and heat pump systems. This control react to changes in either low or high side pressures, providing single-device control of the compressor or other electrical device.
Q830 series dual pressure controls can be not only used in fluorinated refrigerant, but also in the air
and liquid (allowed liquid temp. -20 to 120°C)
Adjustable range and differential settings.
Renovated SPDT micro-switch ensures the reliable switch function.
Flexible mounting bracket suits various kids of application.
Upper lid is optional (IP44)
Various connections are available on request.
Automatic and manual reset version
The material of bellows is copper and pressure interface is brass.
CE approval
| Model | Low pressure(bar) | High pressure(bar) | Reset form(bar) | Factory setting(bar) | ||||||
| Pressure adjust range | Differential | Pressure adjust range | Differential | Low pressure | High pressure | Low pressure | High pressure | |||
| OFF | ON | OFF | ON | |||||||
| Q830 | -0.5~6 | -0.6~4 | 8~30 | 3~5(fixed) | Auto | Auto | 3 | 2 | 20 | 15 |
| Q830HM | -0.5~6 | -0.6~4 | 8~30 | ≤5 | Auto | Manual | 3 | 2 | 20 | Manual reset |
| Q830HLM | -0.5~6 | ≤1 | 8~30 | ≤5 | Manual | Manual | 3 | Manual | 20 | Manual reset |
|
Rated Amps(A) Rated Voltage(V) |
Power Factory (Cosφ) |
125/250V AC |
|
| Non-Industry Current | 1 | 12 | |
| Industry Current | Full Load | 0.75 | 12 |
| Locked Roter | 0.45 | 72 | |
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
